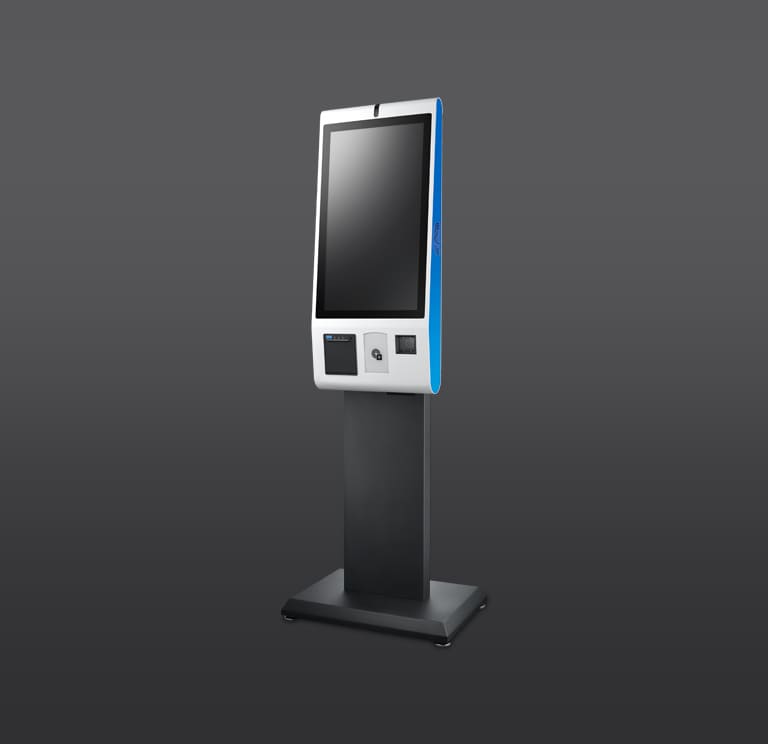

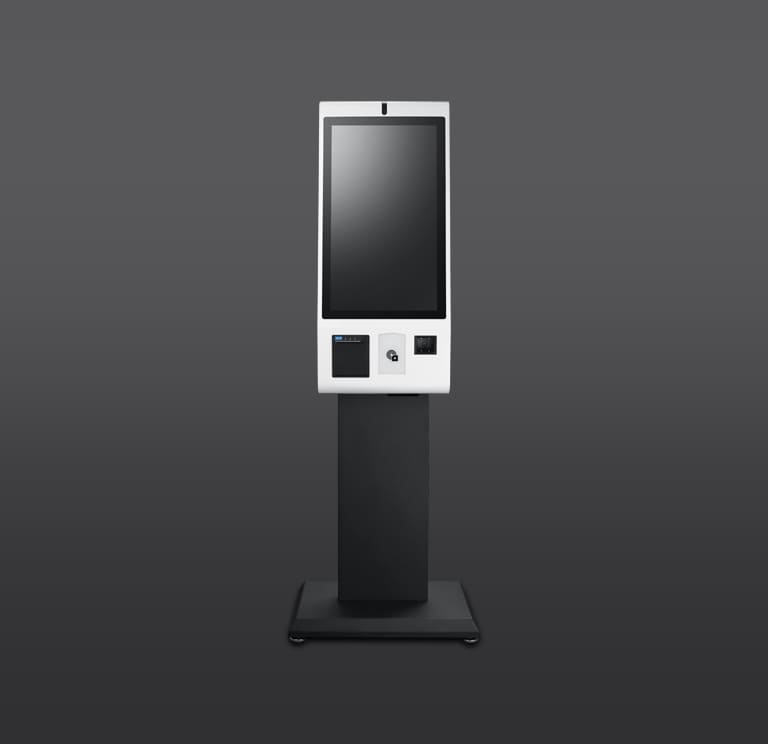

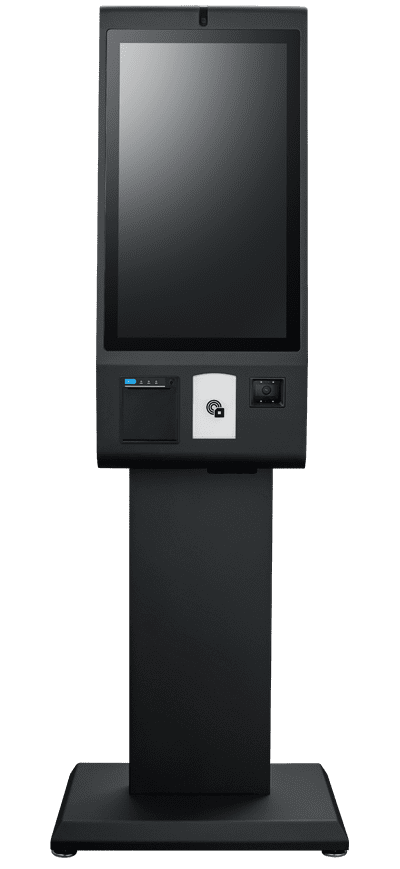

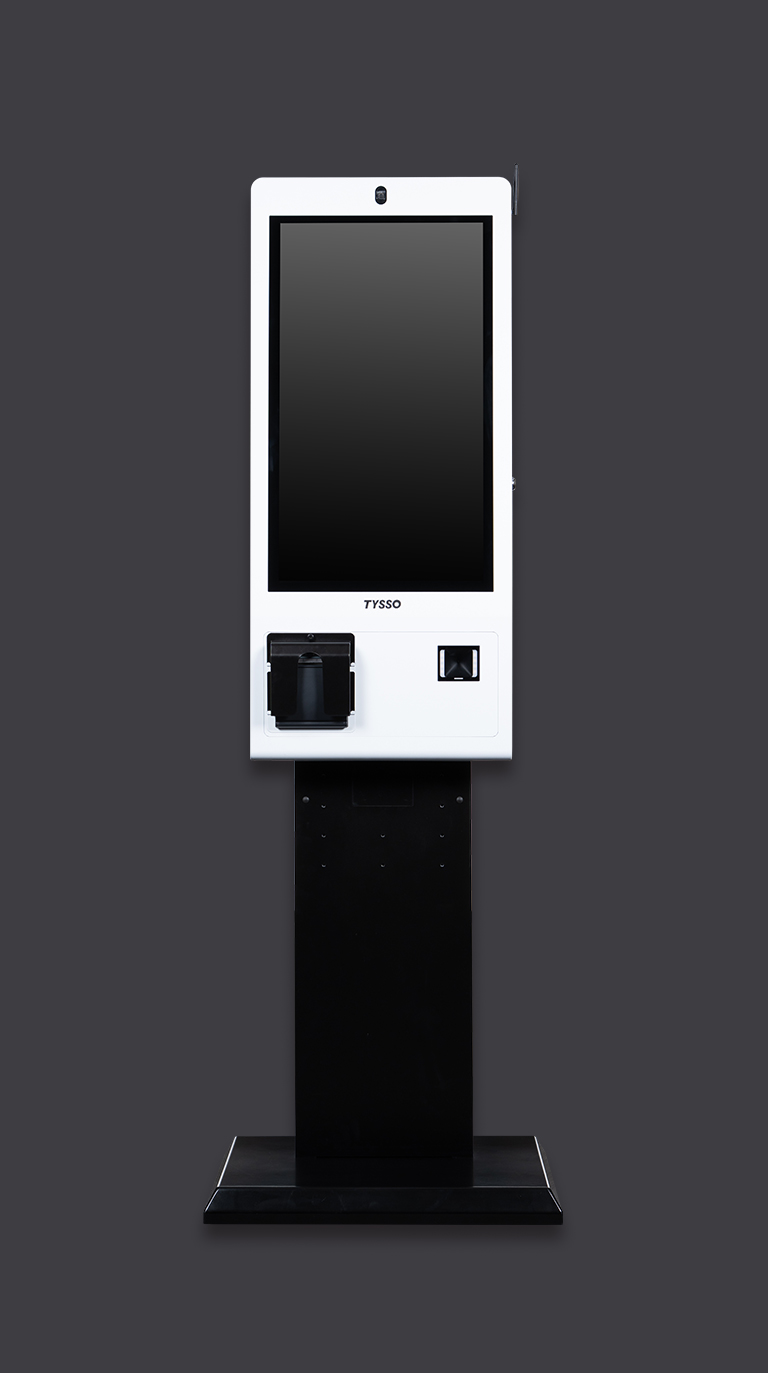

27-inch Payment Kiosk (+BoxPC)

KS-1X27(Series)

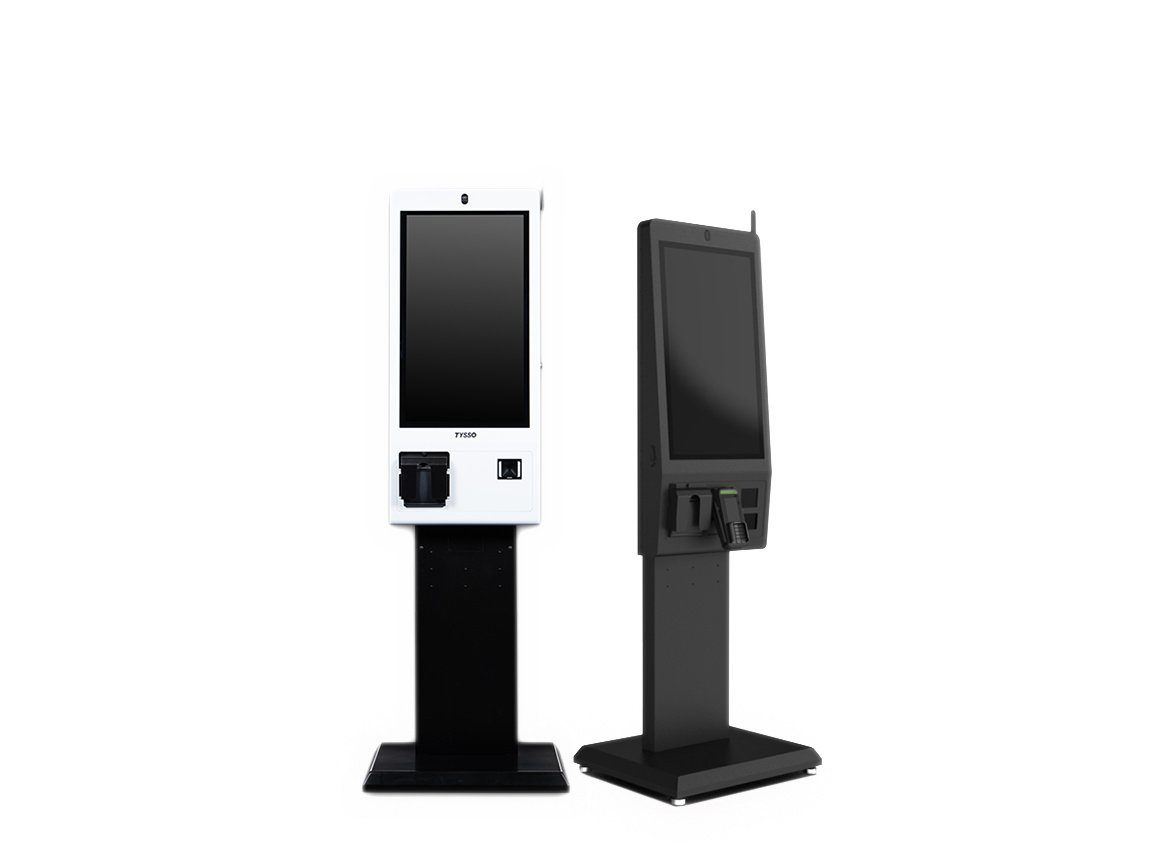

Payment Kiosk with Mountable Digital Touch Screen

Mountable Self-service Payment Kiosk

Fits any commercial space with stand, wheels or mountable bracket based on your business needs.

27-inch payment kiosk with digital touch screen and optional payment devices, allowing guests to order food, customize orders, check-in, and pay bills with their preferred payment method.

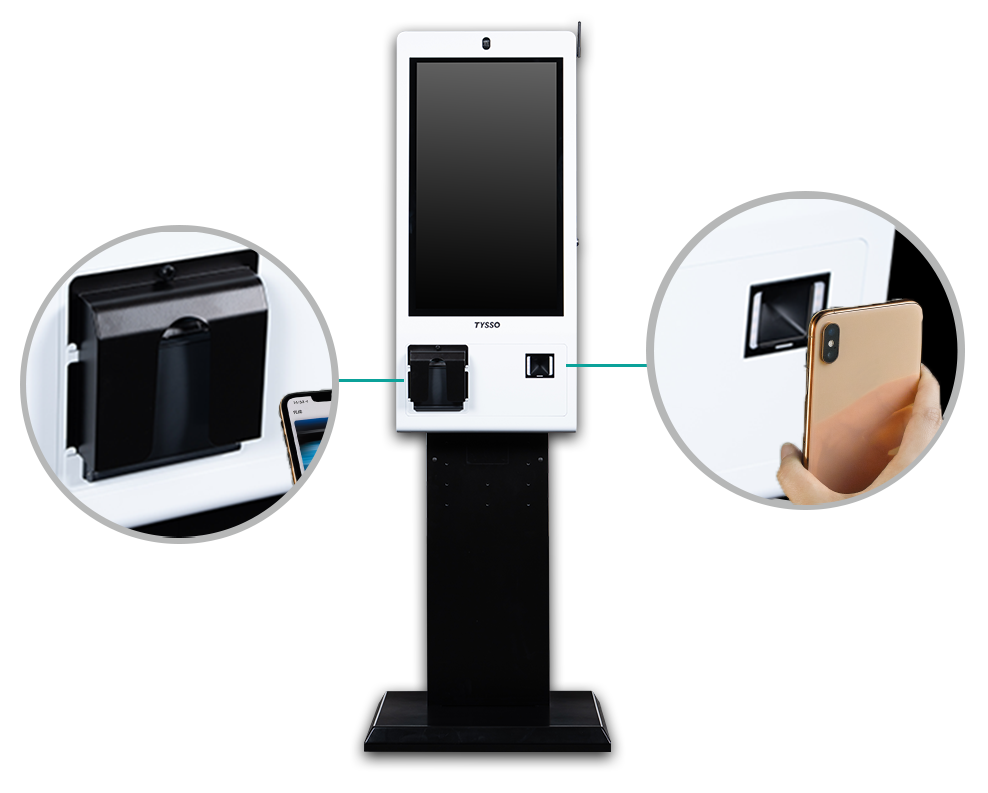

Device Integration Based On Customer Needs

Improve the consumer payment kiosk experience, offering convenience for customers, enable them to choose how they want to pay. Pay by card using a pin, EMV chip, magstripe, or by contactless payments via NFC.

Optional Multiple Holder (Supermarket Version) with Large QR Code Scanner

Offering customers more control, convenience, and a speedier checkout option.

The Payment Kiosk with Large QR Code Scanner

Flexible Wall-Mount Installation
for Space-Saving Integration.

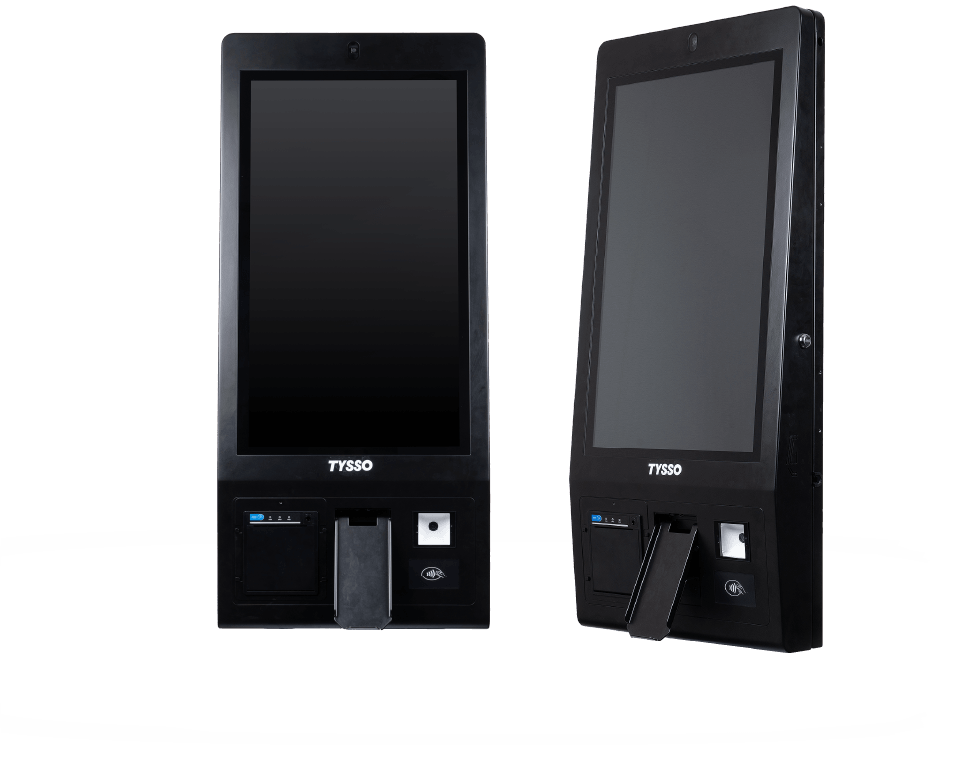

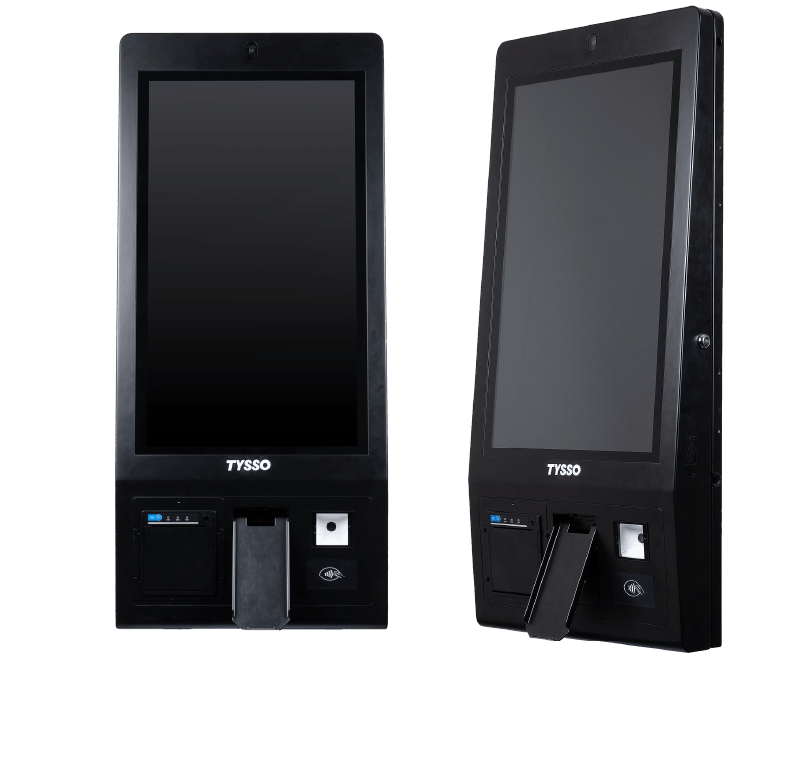

KS-1627N Wall Mount

Designed with versatility in mind, our payment kiosk supports secure wall-mount installation, allowing for a clean, modern setup that saves valuable floor space. Whether it's a compact retail environment, a busy transportation hub, or a high-traffic lobby, the wall-mounted configuration ensures the kiosk stays accessible while maintaining a sleek and organized appearance.

Powered by the Intel® N97 processor, it delivers reliable performance while keeping the footprint minimal-making it an ideal solution for areas where efficiency and aesthetics go hand in hand.

E-Brochure

KS Series Customized

Architecture

Operating
System

Processor

Panel Size

Integrated
Devices

Connection

Self-Take
Meal Pager

Thermal Printer

Face
Camera

Base
(Floor Stand)

Wall Mount
Bracket

Customized
Logo

Table Number
Plate

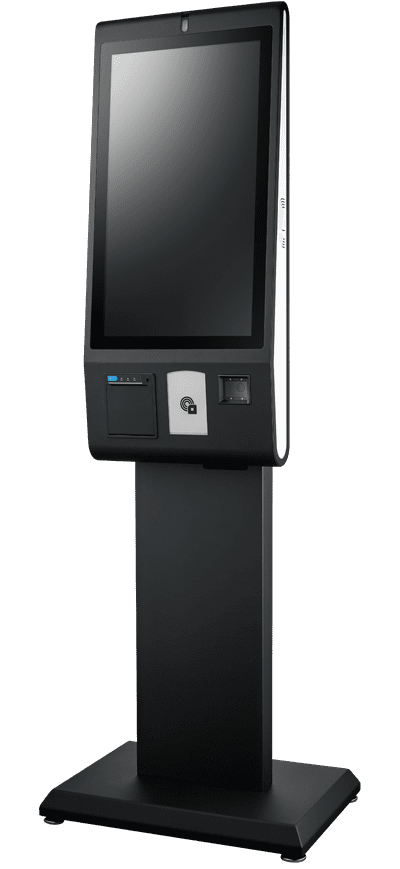

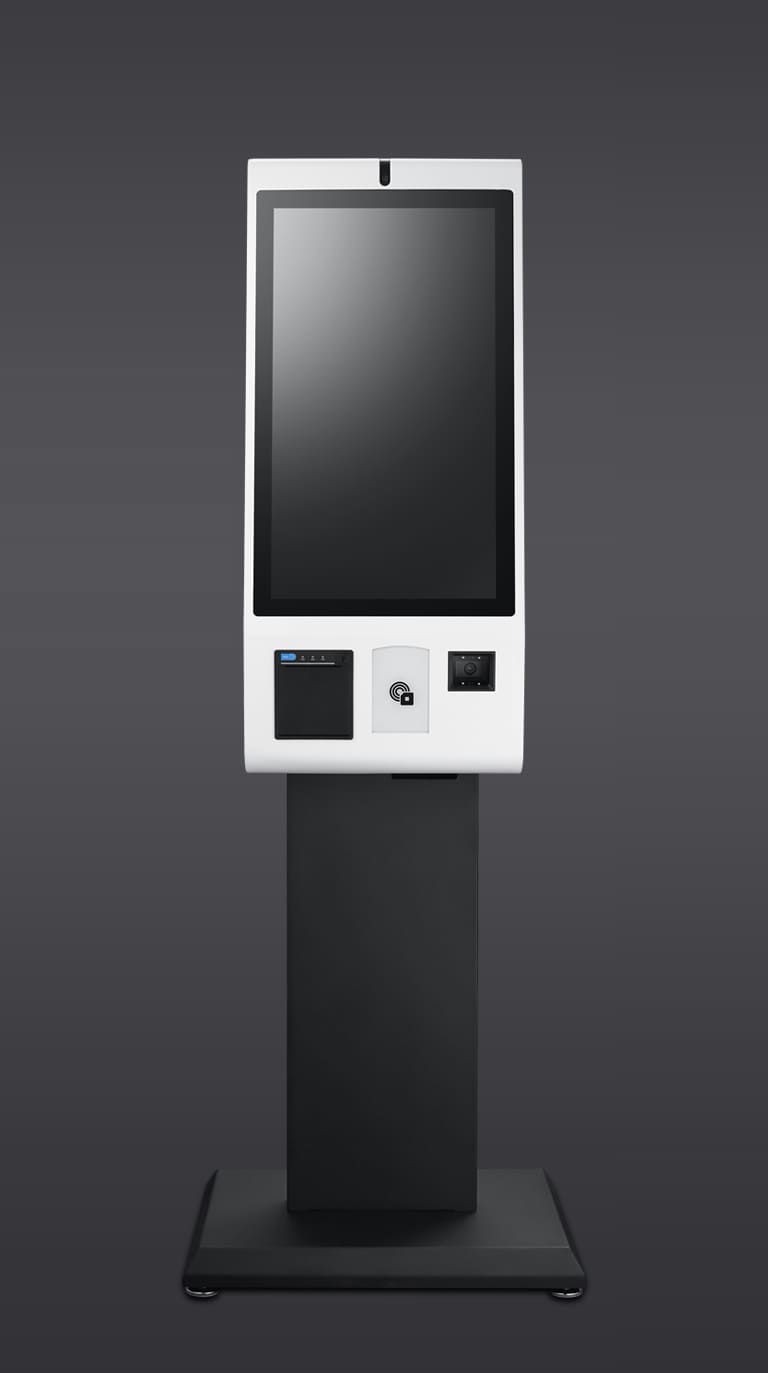

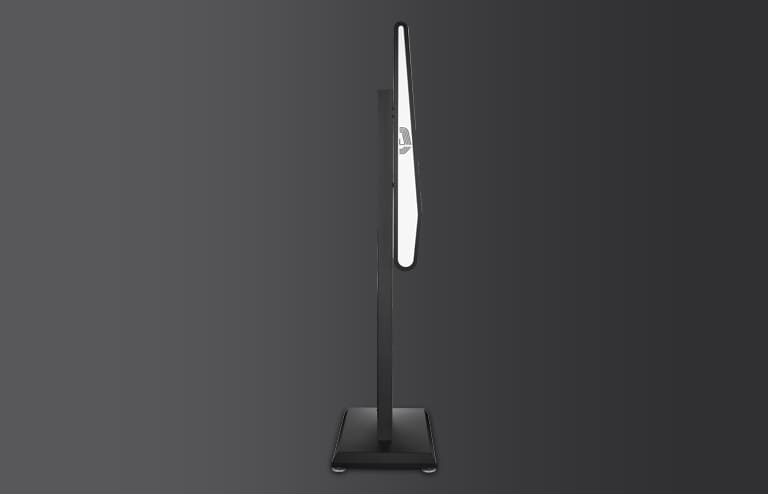

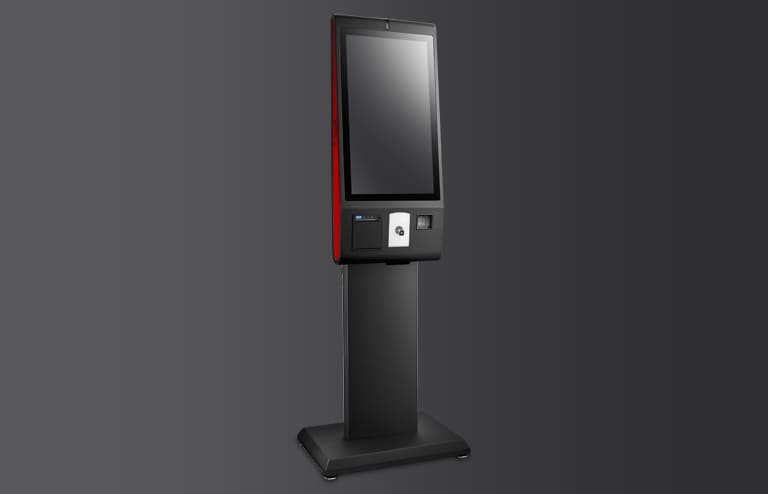

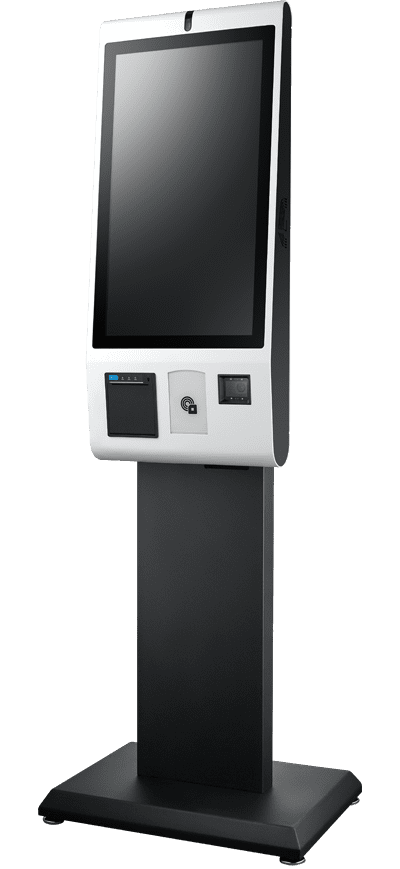

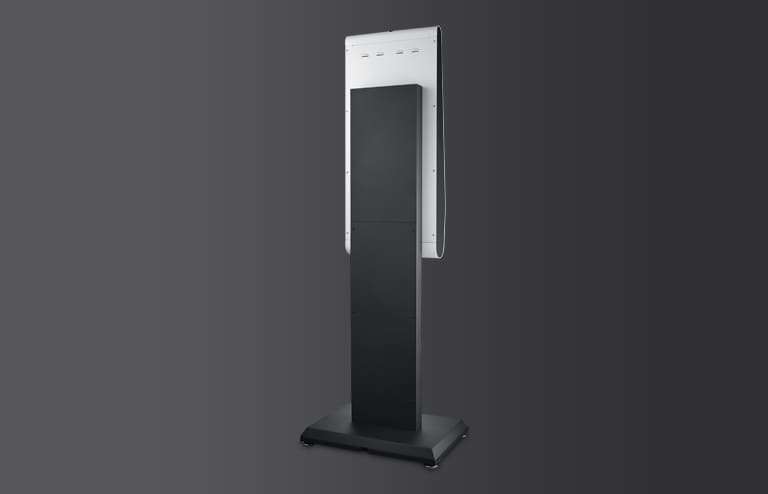

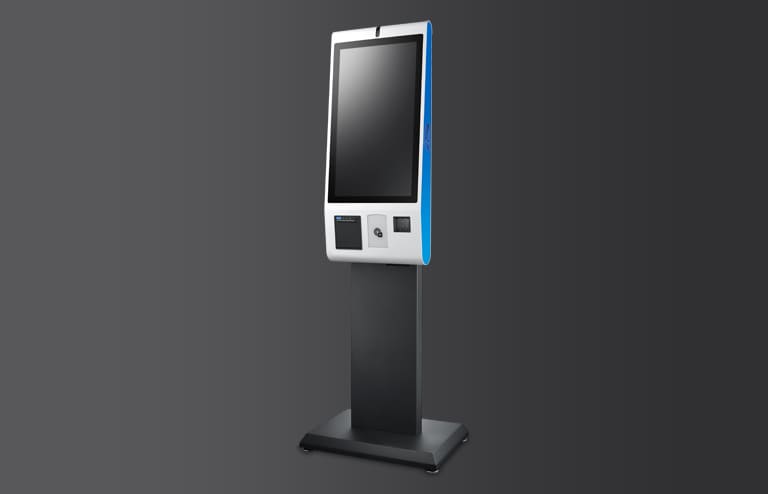

Photo Gallery

Specifications

Model Name		KS-1127	KS-1627	KS-1627N	KS-1727	KS-1827
Core Logic	Processor	ARM Rockchip RK3399 dual Cortex-A72 1.8GHz & quad Cortex-A53 1.4 GHz	Intel® Celeron® J6412 (Elkhart Lake) 1.5M Cache, Max. 2.6 GHz	Intel® N97 (Alder Lake) 1.5M Cache, Max. 2.6 GHz	Intel® Core™ i5-7267U (Kaby Lake) 6M Cache, Max. 3.6 GHz	Intel® Core™ i3-1154G4 (Tiger Lake) 6M Cache, Max. 4.1 GHz
	Memory	Onboard 4GB LPDDR4 1866MHz	up to 32G DDR4 SO-DIMM	1 x 260 pin DDR4 SO-DIMM (3200MTs, up to 16GB)	up to 32G DDR4 SO-DIMM	up to 32G DDR4 SO-DIMM
	Storage	Onboard 32GB eMMC 5.1 1 x TF Card Slot (up to 256GB)	1 x M.2 M-Key Slot (PCIe3.0 x 4 NVMe / SATA)	1 x M.2 SSD (PCIe3.0 x 4 NVMe / SATA)	1 x M.2 M-Key Slot (PCIe3.0 x 4 NVMe / SATA)	1 x M.2 M-Key Slot (PCIe3.0 x 4 NVMe)
LCD Panel	Panel Size	27-inch VA LED Panel	27-inch VA LED Panel	27-inch VA LED Panel	27-inch VA LED Panel	27-inch VA LED Panel
	Resolution	1080 (V) x 1920 (H)	1080 (V) x 1920 (H)	1080 (V) x 1920 (H)	1080 (V) x 1920 (H)	1080 (V) x 1920 (H)
	Brightness	300nits	300nits	300nits	300nits	300nits
	View Angle	89° / 89° / 89° / 89°	89° / 89° / 89° / 89°	89° / 89° / 89° / 89°	89° / 89° / 89° / 89°	89° / 89° / 89° / 89°
Touch Panel	Modular Parts	True-Flat PCAP Touch (G+G)	True-Flat PCAP Touch (G+G)	True-Flat PCAP Touch (G+G)	True-Flat PCAP Touch (G+G)	True-Flat PCAP Touch (G+G)
RF Communication	Wi-Fi / 4G LTE	Wi-Fi IEEE 802.11 a/b/g/n/ac	Option	Option	Option	Option
Speaker	Internal Speaker	2 x 5W Speakers	2 x 5W Speakers	2 x 5W Speakers	2 x 5W Speakers	2 x 5W Speakers
I/O Interface
Internal Box PC I/O	USB	3 x USB 3.0 Type A 1 x USB 3.0 Type C (with ADB) 3 x USB 2.0 Type A	1 x USB 3.0 Type A 1 x USB 3.0 Type C 5 x USB 2.0 Type A	1 x USB 3.2 Type A 1 x USB 3.2 Type C (w/ QC) 8 x USB 2.0 Type A (5 of them USB for touch/2D/printer/outlet x2)	4 x USB 3.0 Type A 3 x USB 2.0 Type A	3 x USB 3.0 Type A 1 x USB 3.0 Type C (w/ DP) 3 x USB 2.0 Type A
	COM	2 x COM (RJ45), w/ NC/5V/12V by jump 2 x COM (DB9), w/ NC/5V/12V by jump	3 x COM (RJ45), w/ RI/5V/12V by BIOS 2 x COM (DB9), w/ RI/5V/12V by jump	2 x COM (RJ45), w/ RI/5V/12V by BIOS 2 x COM (DB9), w/ RI/5V/12V by jumper	3 x COM (RJ45), w/ RI/5V/12V by BIOS 2 x COM (DB9), w/ RI/5V/12V by jump	3 x COM (RJ45), w/ RI/5V/12V by BIOS 2 x COM (DB9), w/ RI/5V/12V by jump
	LPT	N/A	1 x Parallel Port (option)	1 x Parallel Port (option)	1 x Parallel Port (option)	1 x Parallel Port (option)
	HDMI	1 x HDMI Port	1 x HDMI Port	1 x HDMI Port	1 x HDMI Port	1 x HDMI Port
	VGA	1 x VGA (DB15)	1 x VGA (DB15)	1 x VGA (DB15)	1 x VGA (DB15)	1 x VGA (DB15)
	Audio	1 x Line-out & 1 x MIC-in	1 x Line-out & 1 x MIC-in	1 x Line-out & 1 x MIC-in	1 x Line-out & 1 x MIC-in	1 x Line-out & 1 x MIC-in
	Cash Drawer	1 x RJ11 Port supports 2 cash drawer w/ 12V/24V by jump	1 x RJ11 Port supports 2 cash drawer w/ 12V/24V by jump	1 x RJ11 Port supports 2 cash drawer w/ 12V/24V by jumper	1 x RJ11 Port supports 2 cash drawer w/ 12V/24V by jump	1 x RJ11 Port supports 2 cash drawer w/ 12V/24V by jump
	DC Power Out	1 x DC 12V Power Out (DC 2.1mm)	1 x DC 12V Power Out (DC 2.1mm)	1 x DC 12V Power Out (DC 2.1mm)	1 x DC 12V Power Out (DC 2.1mm)	1 x DC 12V Power Out (DC 2.1mm)
	Power Switch	1 x SPST-NO Momentary Rocker Switch	1 x SPST-NO Momentary Rocker Switch	1 x SPST-NO Momentary Rocker Switch	1 x SPST-NO Momentary Rocker Switch	1 x SPST-NO Momentary Rocker Switch
	Power LED	1 x Blue 5mm Round Diffused	1 x Blue 5mm Round Diffused	1 x Blue 5mm Round Diffused	1 x Blue 5mm Round Diffused	1 x Blue 5mm Round Diffused
External I/O	USB	2 x USB 2.0 type A	2 x USB 2.0 type A	2 x USB 2.0 type A	2 x USB 2.0 type A	2 x USB 2.0 type A
	LAN	1 x RJ45 Ethernet (Host) 1 x RJ45 Ethernet (option : EMV Payment)	1 x RJ45 Ethernet (Host) 1 x RJ45 Ethernet (option : EMV Payment)	1 x RJ45 Ethernet (Host) 1 x RJ45 Ethernet (option : EMV Payment)	1 x RJ45 Ethernet (Host) 1 x RJ45 Ethernet (option : EMV Payment)	1 x RJ45 Ethernet (Host) 1 x RJ45 Ethernet (option : EMV Payment)
	Power Cord Socket	1 x AC Male Power Socket	1 x AC Male Power Socket	1 x AC Male Power Socket	1 x AC Male Power Socket	1 x AC Male Power Socket
	Power Switch	1 x Power Switch Button	1 x Power Switch Button	1 x Power Switch Button	1 x Power Switch Button	1 x Power Switch Button
Mechanical & Environmental
Physical Characteristics	Surface Color Plan	Standard or Customizable by project	Standard or Customizable by project	Standard or Customizable by project	Standard or Customizable by project	Standard or Customizable by project
	Brand Logo	Customizable by project	Customizable by project	Customizable by project	Customizable by project	Customizable by project
	Dimension (W x H x D mm)	Main System Only : 434 x 972 x 130 mm Floorstanding : 570 x 1330 x 500 mm	Main System Only : 434 x 972 x 130 mm Floorstanding : 570 x 1330 x 500 mm	Main System Only : 434 x 972 x 115 mm Floorstanding : 570 x 1720 x 500 mm	Main System Only : 434 x 972 x 130 mm Floorstanding : 570 x 1330 x 500 mm	Main System Only : 434 x 972 x 130 mm Floorstanding : 570 x 1330 x 500 mm
	Weight (N.W / KG)	Main System Only : 27KG Floorstanding : 55KG	Main System Only : 27KG Floorstanding : 55KG	Main System Only : 27KG Floorstanding : 55KG	Main System Only : 27KG Floorstanding : 55KG	Main System Only : 27KG Floorstanding : 55KG
Operation System	OS	Android 9.0	Windows 10/11	Windows 10/11	Windows 10	Windows 10/11
Environment	Operation Condition	0°C to +45°C / 20 to 80% without condensation	0°C to +45°C / 20 to 80% without condensation	0°C to +45°C / 20 to 80% without condensation	0°C to +45°C / 20 to 80% without condensation	0°C to +45°C / 20 to 80% without condensation
Environment	Storage Condition	-5°C to +55°C / 20 to 85% without condensation	-5°C to +55°C / 20 to 85% without condensation	-5°C to +55°C / 20 to 85% without condensation	-5°C to +55°C / 20 to 85% without condensation	-5°C to +55°C / 20 to 85% without condensation
Optional Accessories
Internal AC Socket		1x AC Male Power Socket	1x AC Male Power Socket	1x AC Male Power Socket	1x AC Male Power Socket	1x AC Male Power Socket
Internal Camera		5M-Pixel AF Full HD Camera	5M-Pixel AF Full HD Camera	5M-Pixel AF Full HD Camera	5M-Pixel AF Full HD Camera	5M-Pixel AF Full HD Camera
Thermal Printer		2" or 3" standalone thermal printer with cutter 203 dpi and Max. 180 mm/s supported	2" or 3" standalone thermal printer with cutter 203 dpi and Max. 180 mm/s supported	2" or 3" standalone thermal printer with cutter 203 dpi and Max. 180 mm/s supported	2" or 3" standalone thermal printer with cutter 203 dpi and Max. 180 mm/s supported	2" or 3" standalone thermal printer with cutter 203 dpi and Max. 180 mm/s supported
Mini QR Code Scanner		Fixed mount barcode scanner, 800 x 800 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen	Fixed mount barcode scanner, 800 x 800 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen	Fixed mount barcode scanner, 800 x 800 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen	Fixed mount barcode scanner, 800 x 800 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen	Fixed mount barcode scanner, 800 x 800 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen
MSR/IC Card Combo Reader		Based on customer requirements	Based on customer requirements	Based on customer requirements	Based on customer requirements	Based on customer requirements
NFC/RFID Reader		Based on customer requirements	Based on customer requirements	Based on customer requirements	Based on customer requirements	Based on customer requirements
EMV Payment Device Bracket		Based on customer requirements	Based on customer requirements	Based on customer requirements	Based on customer requirements	Based on customer requirements
More Optional		4G LTE Module (Mini-PCIe) Wall Mount Bracket Kit Multiple Holder (Supermarket Version) Ticketing Printer	Wi-Fi IEEE 802.11 a/b/g/n/ac (M.2 E Key)(Mini-PCIe) 4G LTE Module (Mini-PCIe) Wall Mount Bracket Kit Multiple Holder (Supermarket Version) Ticketing Printer	Wi-Fi IEEE 802.11 a/b/g/n/ac (M.2 E Key)(Mini-PCIe) 4G LTE Module (Mini-PCIe) Wall Mount Bracket Kit Multiple Holder (Supermarket Version) Ticketing Printer	Wi-Fi IEEE 802.11 a/b/g/n/ac (M.2 E Key)(Mini-PCIe) 4G LTE Module (Mini-PCIe) Wall Mount Bracket Kit Multiple Holder (Supermarket Version) Ticketing Printer	Wi-Fi IEEE 802.11 a/b/g/n/ac (M.2 E Key)(Mini-PCIe) 4G LTE Module (Mini-PCIe) Wall Mount Bracket Kit Multiple Holder (Supermarket Version) Ticketing Printer
