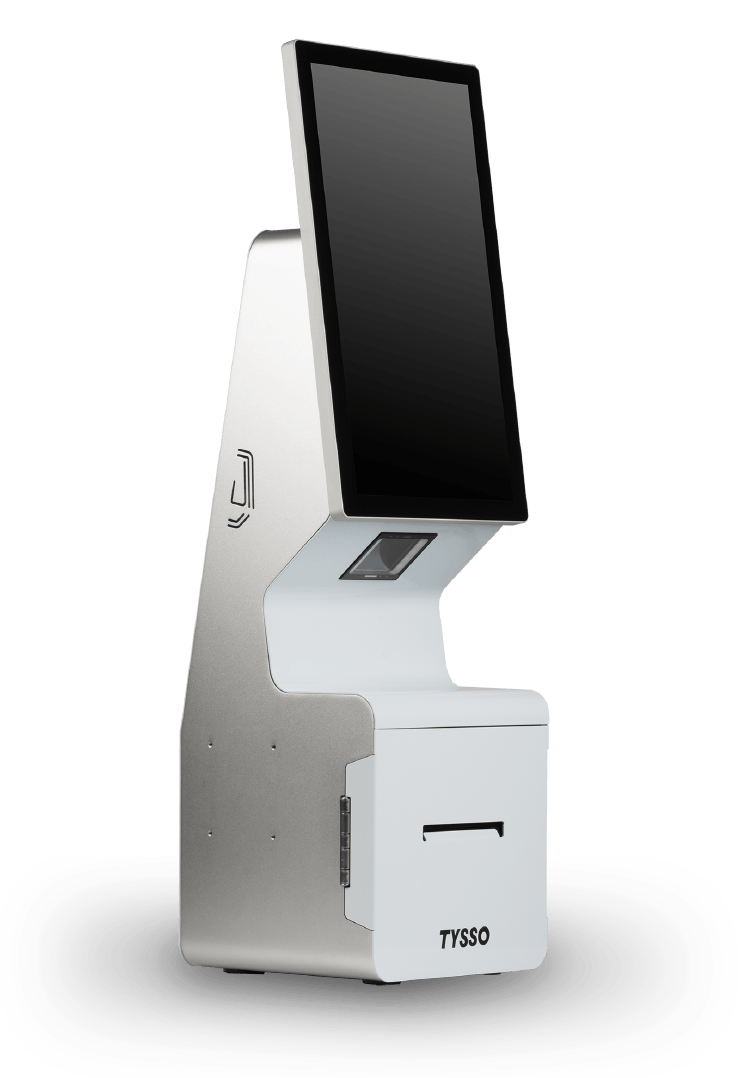

KM-1x16 Series
15.6-inch Countertop Kiosk
Tailored for Retail Success

COMPACT POWER FOR HIGH-VOLUME RETAIL

The Future of Frontline Retail

Enhance Your Retail
Checkout Experience

The KM-1x16 Series POS System is purpose-built for today’s dynamic retail stores. Its robust design and reliable performance ensure that your checkout counters operate smoothly, even during the busiest shopping hours. Whether you’re managing a boutique, supermarket, or department store, this all-in-one system empowers your staff to provide outstanding service

Tailored for Retail Success

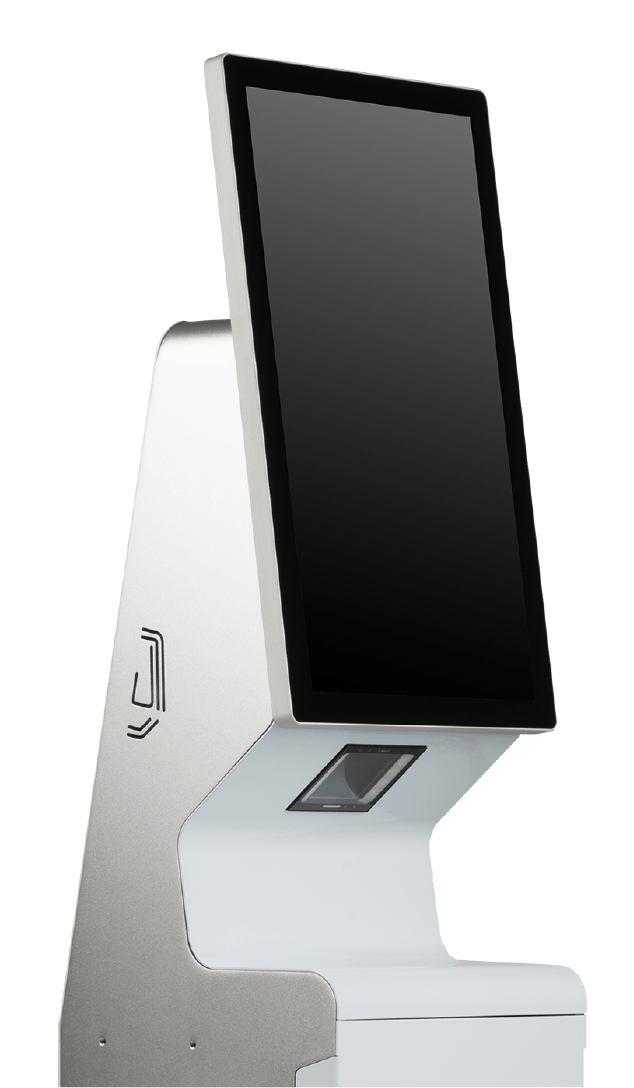

Intuitive, Spacious Touchscreen
for Effortless Transactions

Featuring a spacious 15.6-inch true-flat touchscreen, the KM-1x16 Series makes every transaction straightforward and efficient. Its responsive, user-friendly interface allows cashiers to navigate menus, process payments, and assist customers with ease. The high-performance Intel® N97 processor ensures quick loading times and smooth operation, enhancing efficiency at the point of sale.

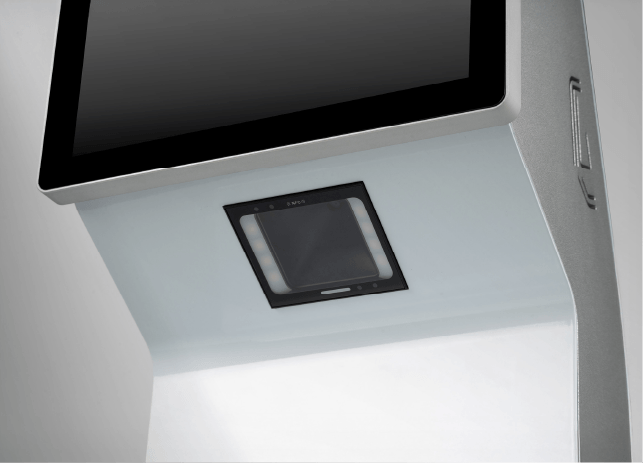

Built-in
Scanner

Versatile
Connectivities

Dual
Speakers

Wi-Fi
Supported

Compatible with TYSSO's PRP-550 Thermal Printer.

Smart Checkout Starts Here

Flexible Integration
with Retail Peripherals

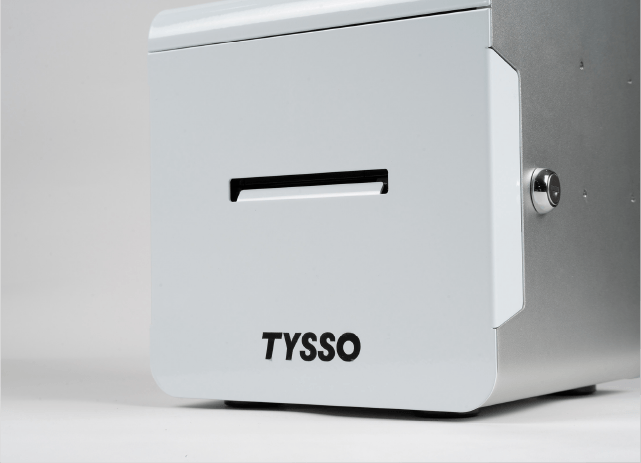

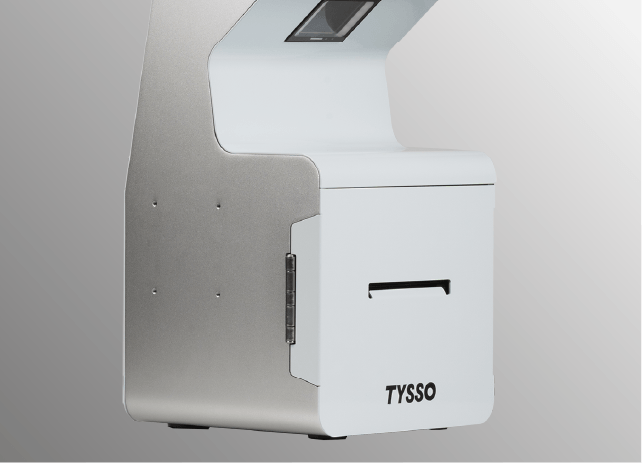

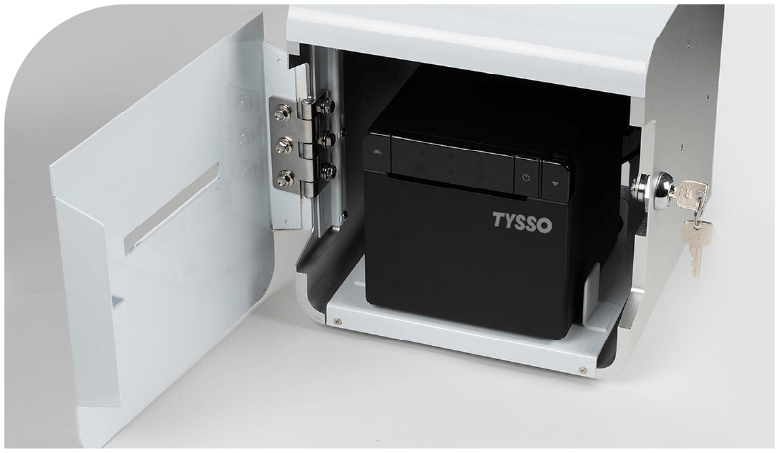

The KM-1x16 Series supports multiple I/O ports—including USB, LAN, HDMI, and COM—to easily connect barcode scanners, receipt printers, cash drawers, and other essential peripherals. Its modular design supports future upgrades, giving you the flexibility to adapt as your retail business evolves. Opening the cover reveals the built-in thermal printer, allowing quick and easy paper roll changes—helping you stay productive during busy hours.

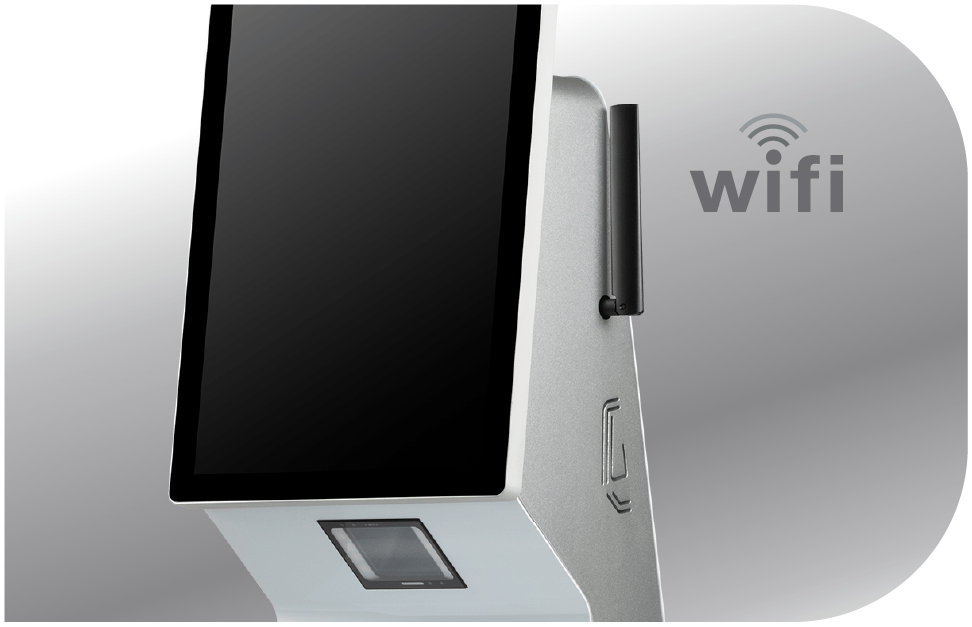

Always Online, Always Efficient

Reliable Connectivity for
Uninterrupted Service

With integrated Wi-Fi and optional 4G LTE, the KM-1x16 Series delivers stable connectivity, even in challenging retail environments. This ensures your store‘s POS operations continue without interruptions, helping you serve customers quickly and avoid downtime.

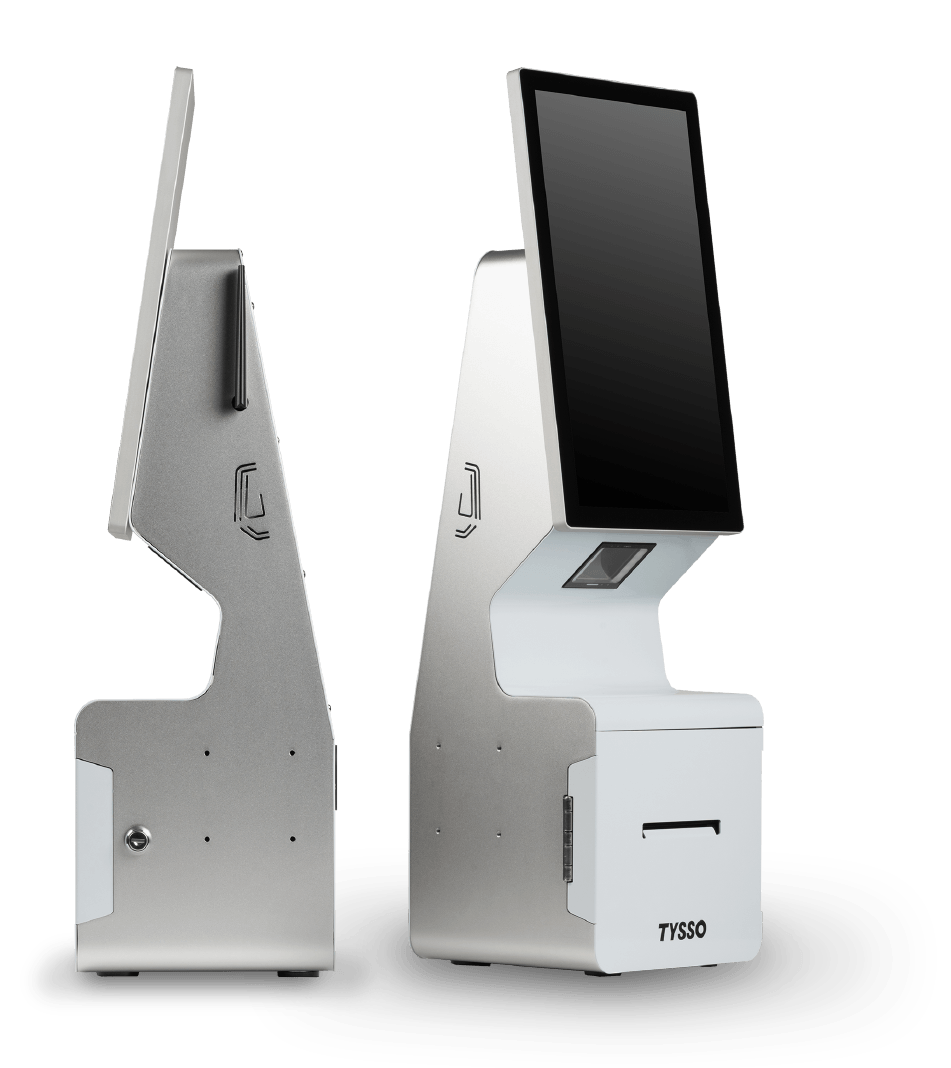

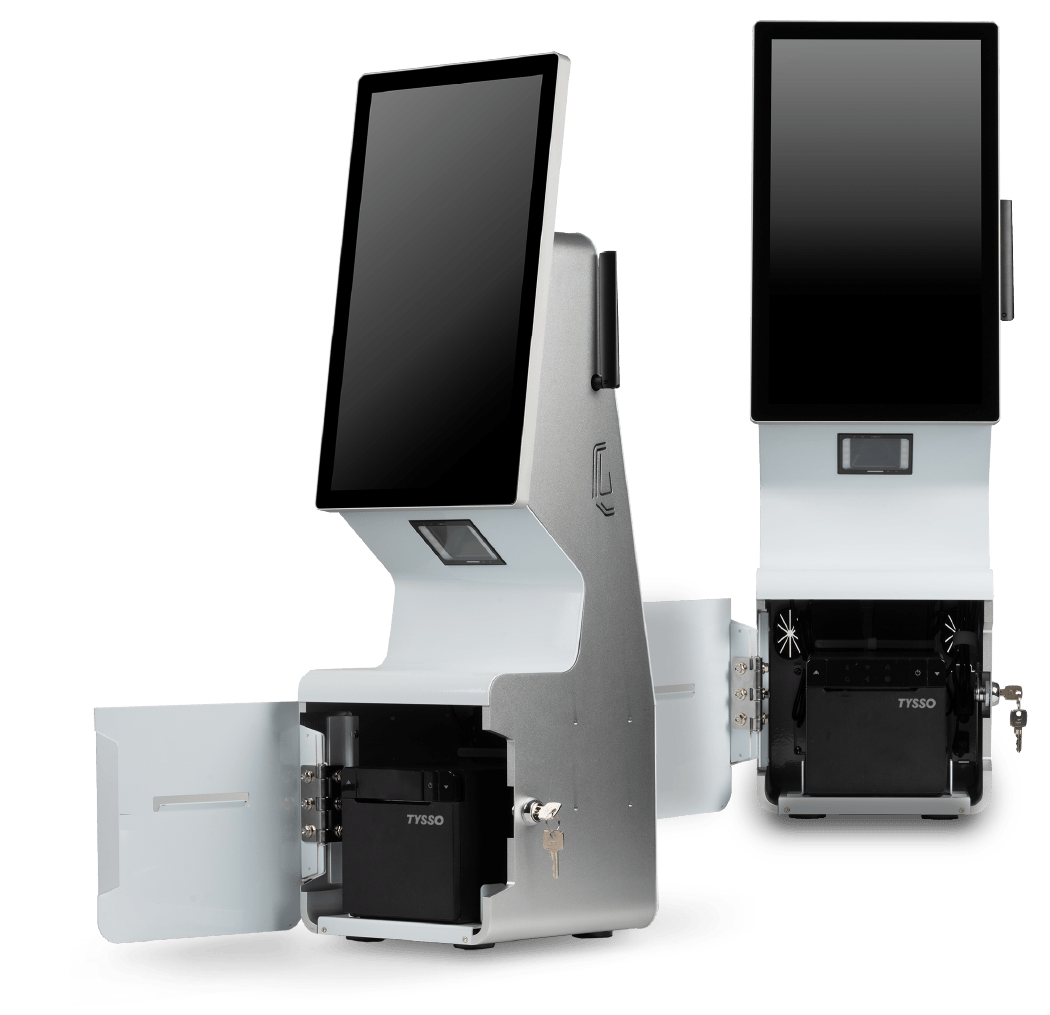

Smart Design. Sleek Integration.

A Design That Fits Seamlessly into Retail Spaces

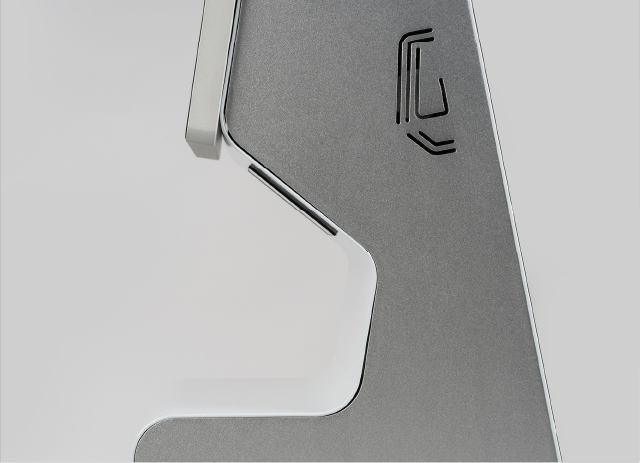

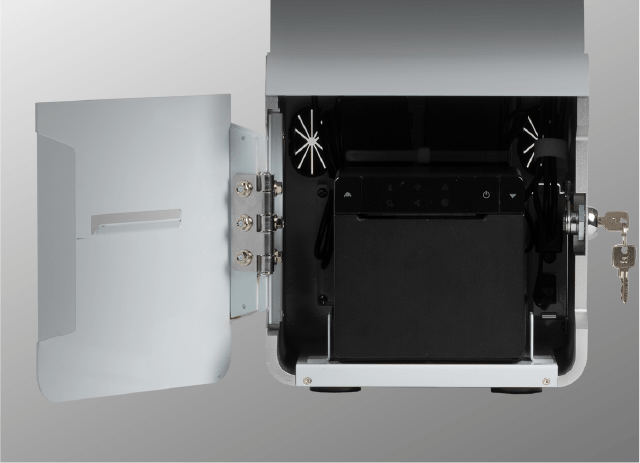

Compact yet powerful, the KM-1x16 Series integrates perfectly into your retail environment. Its refined metal exterior brings a polished look to your checkout counters, while the easy-access thermal printer compartment simplifies paper roll changes—keeping lines moving and customers satisfied.

Retail-Ready. Growth-Driven.

Invest in a POS System Ready for Retail Growth

Choose the KM-1x16 Series for a reliable, future-ready POS solution that’s tailor-made for retail success. Improve customer experiences, empower your staff, and drive sales with a system designed to thrive in today’s competitive retail landscape.

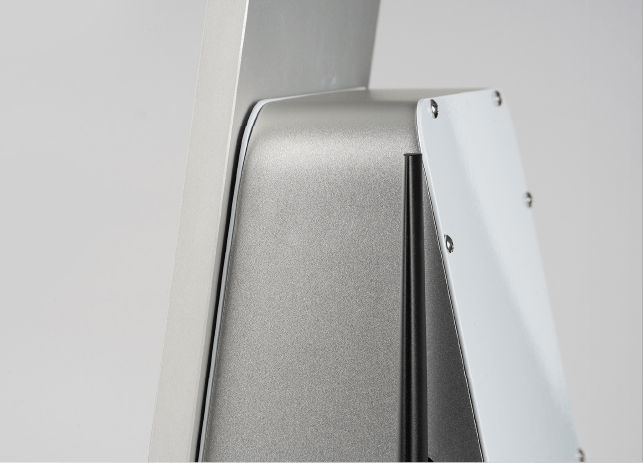

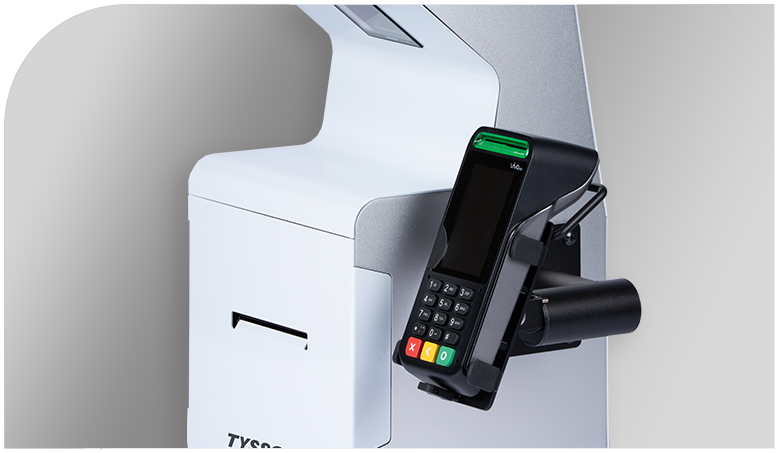

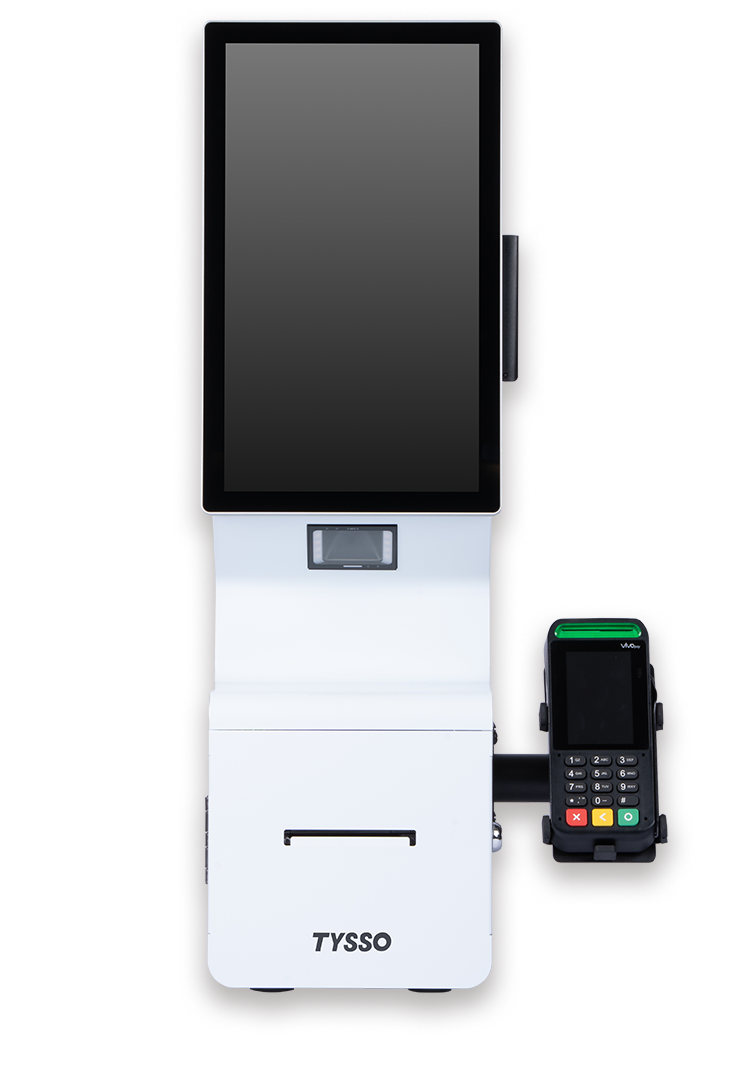

For added flexibility, the KM-1x16 Series also supports an optional credit card reader mount—perfect for integrating payment terminals and enabling customers to complete purchases via contactless payment at checkout.

Photo Gallery

Specifications

Choose Model

KM-1116A
KM-1616N

Model Name		KM-1116A
Core Logic	Processor	ARM Rockchip RK3568 Quad-core Cortex-A55 2.0GHz
	Memory	Onboard 4GB LPDDR4 3200MHz
	Storage	Onboard 32GB eMMC 5.1 1 x TF Card Slot
LCD Panel	Panel Size	15.6-inch Full HD LCD
	Resolution	1080 (W) RGB x 1920 (H)
	Brightness	350nits
	View Angle	89° / 89° / 89° / 89°
Touch Panel	Modular Parts	True-Flat PCAP Touch (G+G)
RF Communication	Wi-Fi / 4G LTE	Wi-Fi IEEE 802.11 a/b/g/n/ac
Speaker	Internal Speaker	2 x 5W High Quality Speaker
I/O Interface
Internal I/O	USB	5 x USB 2.0 Type A 1 x USB 3.0 Type A 1 x USB 2.0 Micro (OTG) (4 of them USB for 2D/printer/outlet x2)
	LAN	1 x RJ45 10/100/1000Mbps Giga Ethernet
	COM	1 x COM (DB9, Tx/Rx), w/ 5V 1 x COM (DB9, Tx/Rx), w/ 5V/3.3V by resistor 1 x COM (DB9, Tx/Rx), w/ 5V/3.3V by resistor (option)
	HDMI	N/A
	Audio	1 x Line-out/MIC-in
	Cash Drawer	N/A
	Extra Card Slot	1 x TF Card Slot 1 x Standard SIM Card Slot
External I/O	USB	2 x USB 2.0 type A
External I/O	Power Switch	1 x SPST-NO Momentary Rocker Switch
Power Management
Power Adapter (Internal hidden)		12V/5A 60W Adapter (System) 24V/2.5A 60W Adapter (Printer)
Mechanical & Environmental
Physical Characteristics	Surface Color Plan	Standard or Customizable by project
	Brand Logo	Customizable by project
	Dimension	Main Body Only : 230(W) x 750(H) x 210(D) mm Main Body with Antenna : 250(W) x 750(H) x 210(D) mm
	Weight	14 Kg
Certification		N/A
Operation System		Android 11
Environment	Operation Condition	0°C to +45°C / 20 to 80% without condensation
Environment	Storage Condition	-5°C to +55°C / 20 to 85% without condensation
Optional Accessories
Thermal Printer		2" or 3" standalone thermal printer with cutter 203 dpi and Max. 180 mm/s supported
Mini QR Code Scanner		Fixed mount barcode scanner, 1280 x 1088 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen
MSR/IC Card Combo Reader		Based on customer requirements
NFC/RFID Reader		Based on customer requirements
EMV Payment Device Bracket		Based on customer requirements
More Optional		4G LTE Module (Mini-PCIe)

Model Name	KM-1616N
Core Logic	Processor	Intel® N97 (Alder Lake) 6M Cache, Max. 3.6 GHz Intel® N95 (Alder Lake) 6M Cache, Max. 3.4 GHz
Memory	1 x 260 pin DDR4 SO-DIMM (3200MTs, up to 16GB)
Storage	1 x M.2 SSD (PCIe3.0 NVMe / SATA) 1 x mSATA SSD (SATA 3.0)
LCD Panel	Panel Size	15.6-inch Full HD LCD
Resolution	1080 (W) RGB x 1920 (H)
Brightness	350nits
View Angle	89° / 89° / 89° / 89°
Touch Panel	Modular Parts	True-Flat PCAP Touch (G+G)
RF Communication	Wi-Fi / 4G LTE	Option
Speaker	Internal Speaker	2 x 5W High Quality Speaker
I/O Interface
Internal I/O	USB	2 x USB 3.2 Type A 1 x USB 3.2 Type C (w/ DP ALT mode) 4 x USB 2.0 Type A 4 x USB 2.0 Type A (option) (4 of them USB for 2D/printer/outlet x2)
LAN	1 x RJ45 10/100/1000Mbps Giga Ethernet
COM	2 x COM (RJ45), w/ RI/5V/12V by BIOS 1 x COM (DB9), w/ RI/5V/12V by jumper (option)
HDMI	1 x HDMI Port
Audio	1 x Line-out/MIC-in
Cash Drawer	1 x RJ11 Port supports 2 cash drawer (option) w/ 12V/24V by jumper
Extra Card Slot	1 x M.2 E-Key 2230 (PCIe) 1 x mPCIe full size (USB2.0)(*mSATA share the same slot) with SIM slot
External I/O	USB	2 x USB 2.0 type A
Power Switch	1 x SPST-NO Momentary Rocker Switch
Power Management
Power Adapter (Internal hidden)	12V/5A 60W Adapter (System) 24V/2.5A 60W Adapter (Printer)
Mechanical & Environmental
Physical Characteristics	Surface Color Plan	Standard or Customizable by project
Brand Logo	Customizable by project
Dimension	Main Body Only : 230(W) x 750(H) x 210(D) mm Main Body with Antenna : 250(W) x 750(H) x 210(D) mm
Weight	14 Kg
Certification	FCC/CE/LVD
Operation System	Windows 10/11
Environment	Operation Condition	0°C to +45°C / 20 to 80% without condensation
Storage Condition	-5°C to +55°C / 20 to 85% without condensation
Optional Accessories
Thermal Printer	2" or 3" standalone thermal printer with cutter 203 dpi and Max. 180 mm/s supported
Mini QR Code Scanner	Fixed mount barcode scanner, 1280 x 1088 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen
MSR/IC Card Combo Reader	Based on customer requirements
NFC/RFID Reader	Based on customer requirements
EMV Payment Device Bracket	Based on customer requirements
More Optional	Wi-Fi IEEE 802.11 a/b/g/n/ac (M.2 E Key)(Mini-PCIe) 4G LTE Module (Mini-PCIe)
