Fanless POS Systems TP-9X16

Fanless POS Systems TP-9X16

15.6-inch Touch Screen with Slim Design

Inquiry

Fanless technology assuring quiet and smooth operation

Ultra-thin POS Touchscreen with Excellent Performance

The new Intel® SkyLake/KabyLake U Processors
With M.2 SATA and PCIe*4 maximizing efficiency

TP-9X16
TP-9X16
TP-9X16
TP-9X16
TP-9X16

Choosing a color palette that best reflects your brand identity

Customizable Logo and Color Options

Finding the perfect combination that best fits your business’s individual needs

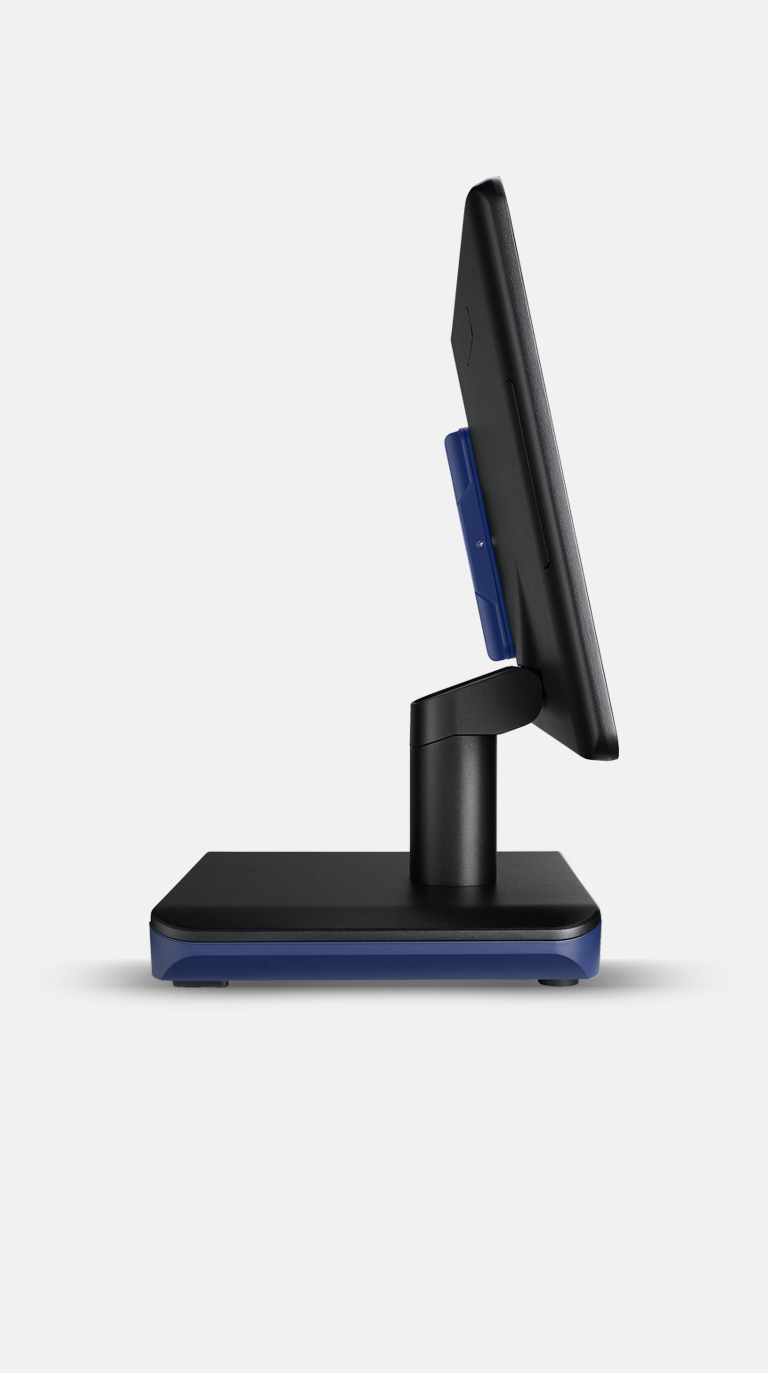

0~90 ° Tilt motion, smooth and precise hinge mechanism that ensures long-term use

Foldable Base Design

Integrated customer display to save package space and installation time

The Modular POS Peripherals

Designed to fulfill your POS business needs

Modular POS Peripherals

Optional accessories including MSR,
customer display or LCD display with PCAP touchscreen

Customer Display10.1” Touch DisplayMSR Side View
The Multi-Functional Docking Station

Die casting aluminum desktop stand offers superior heat dissipation

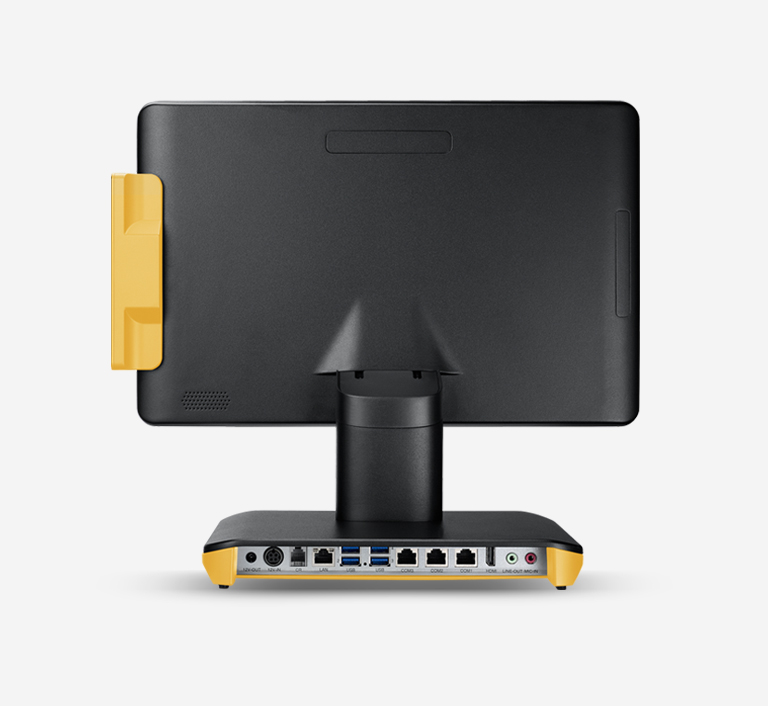

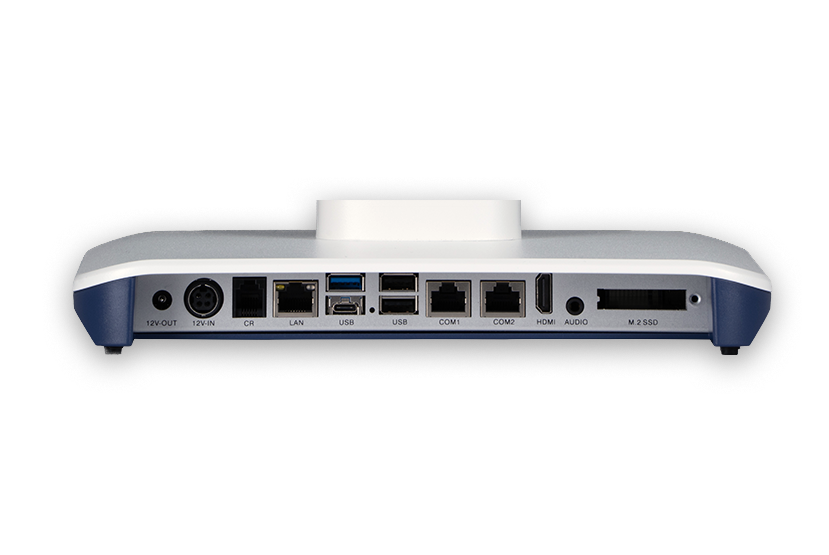

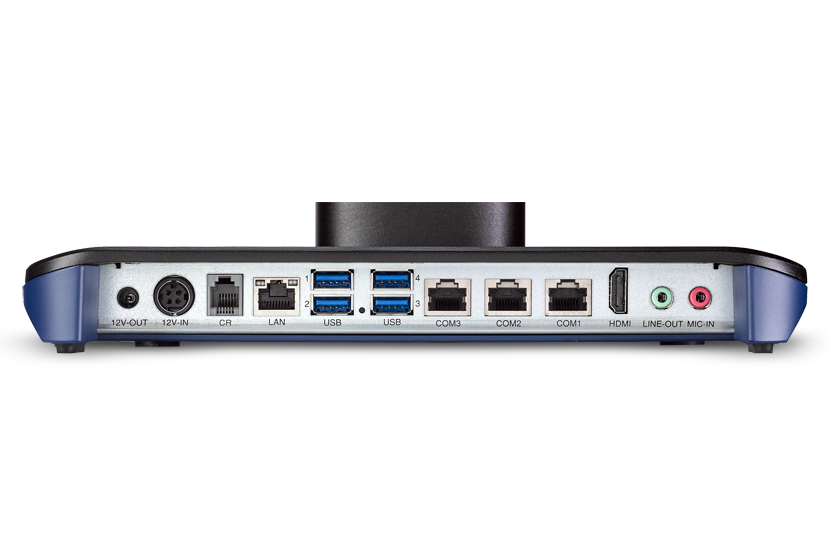

Small Footprint, Versatile I/O Interfaces

HDMI, DC power jack, USB, audio line-out and
MIC-in ports to provide optimal connectivity

TP-9X16

Photo Gallery

Specifications

Model Name TP-9616 TP-9716U TP-9816U
Processor Intel® Celeron® J6412
(1.5M Cache, Max. 2.6 GHz)
6th Generation Sky Lake
Intel® Core™ i5-6360U Processor
(4M Cache, Max. 3.1 GHz)
7th Generation Kaby Lake
Intel® Core™ i3-7020U Processor
(3M Cache, 2.30 GHz)
System Memory 2 x 260 pin DDR4 SO-DIMM, up to 32GB
Storage 1 x M.2 SATA and PCIe SSD
LCD Panel - I 15.6-inch TFT LCD, 1920 (W) RGB x 1080 (H)
LCD Panel - II 15.6-inch TFT LCD, 1366 (W) RGB x 768 (H)
Touch Panel True-Flat Projected Capacitive Multi Touch
Speaker 1 x 2W High Quality Speaker
I/O Interface
USB 1 x USB-A 3.2 and 1 x USB-C 3.2 (Bottom)
3 x USB-A 3.0 (Bottom)
2 x USB 2.0 (Panel Side)
5 x USB-A 3.0 (Bottom)
2 x USB 2.0 (Panel Side)
5 x USB-A 3.0 (Bottom)
2 x USB 2.0 (Panel Side)
LAN 1 x RJ45 10/100/1000Mbps Giga Ethernet
COM 3 x COM (RJ45), w/RI/5V/12V (Bottom)
HDMI 1 x HDMI Port
Audio 1 x Line-out and 1 x MIC-in
Cash Drawer 1 x RJ11 port supports 2 cash drawer with 12V or 24V by jumper
DC Power Out 1 x +12V Power Out
DC Power In 1 x Standard DIN 4PIN type
Power Management
Power Adapter 12V@5A, 60W Adapter 12V@7.5A, 90W Adapter 12V@7.5A, 90W Adapter
Mechanical & Environmental
Dust and Water IP65 on Front Bezel
Tilt Adjustment 0° ~ 90°
Dimension 389 (W) x 352 (H) x 210 (D)mm
Weight 4.3 kg
Certification CE/FCC/LVD
Operation System Windows 10 IoT and Linux
TPM TPM2.0 (option)
Operation Condition 0°C to +40°C / 20 to 80% without condensation
Storage Condition -20°C to +55°C / 20 to 85% without condensation
Optional Accessories
2nd Display 10.1" (1280x800) LCD Display
Optional PCAP Touchscreen
Customer Display VFD and LCD Customer Display
MSR Bi-directional, Comply with ISO 7811 and Three Track support
Wi-Fi Wi-Fi IEEE 802.11 a/b/g/n/ac

Choose Model

Model
Type TP-9616
Processor Intel® Celeron® J6412
(1.5M Cache, Max. 2.6 GHz)
System Memory 2 x 260 pin DDR4 SO-DIMM, up to 32GB
Storage 1 x M.2 SATA and PCIe SSD
LCD Panel - I 15.6-inch TFT LCD, 1920 (W) RGB x 1080 (H)
LCD Panel - II 15.6-inch TFT LCD, 1366 (W) RGB x 768 (H)
Touch Panel True-Flat Projected Capacitive Multi Touch
Speaker 1 x 2W High Quality Speaker
I/O Interface
USB 1 x USB-A 3.2 and 1 x USB-C 3.2 (Bottom)
3 x USB-A 3.0 (Bottom)
2 x USB 2.0 (Panel Side)
LAN 1 x RJ45 10/100/1000Mbps Giga Ethernet
COM 3 x COM (RJ45), w/RI/5V/12V (Bottom)
HDMI 1 x HDMI Port
Audio 1 x Line-out and 1 x MIC-in
Cash Drawer 1 x RJ11 port supports 2 cash drawer with 12V or 24V by jumper
DC Power Out 1 x +12V Power Out
DC Power In 1 x Standard DIN 4PIN type
Power Management
Power Adapter 12V@5A, 60W Adapter
Mechanical & Environmental
Dust and Water IP65 on Front Bezel
Tilt Adjustment 0° ~ 90°
Dimension 389 (W) x 352 (H) x 210 (D)mm
Weight 4.3 kg
Certification CE/FCC/LVD
Operation System Windows 10 IoT and Linux
TPM TPM2.0 (option)
Operation Condition 0°C to +40°C / 20 to 80% without condensation
Storage Condition -20°C to +55°C / 20 to 85% without condensation
Optional Accessories
2nd Display 9.7" (1024X768) and 10.1" (1280x800) LCD Display
Optional PCAP Touchscreen
Customer Display VFD and LCD Customer Display
MSR Bi-directional, Comply with ISO 7811 and Three Track support
Wi-Fi Wi-Fi IEEE 802.11 a/b/g/n/ac
Model
Type TP-9716U
Processor 6th Generation Sky Lake
Intel® Core™ i5-6360U Processor
(4M Cache, Max. 3.1 GHz)
System Memory 2 x 260 pin DDR4 SO-DIMM, up to 32GB
Storage 1 x M.2 SATA and PCIe SSD
LCD Panel - I 15.6-inch TFT LCD, 1920 (W) RGB x 1080 (H)
LCD Panel - II 15.6-inch TFT LCD, 1366 (W) RGB x 768 (H)
Touch Panel True-Flat Projected Capacitive Multi Touch
Speaker 1 x 2W High Quality Speaker
I/O Interface
USB 5 x USB-A 3.0 (Bottom)
2 x USB 2.0 (Panel Side)
LAN 1 x RJ45 10/100/1000Mbps Giga Ethernet
COM 3 x COM (RJ45), w/RI/5V/12V (Bottom)
HDMI 1 x HDMI Port
Audio 1 x Line-out and 1 x MIC-in
Cash Drawer 1 x RJ11 port supports 2 cash drawer with 12V or 24V by jumper
DC Power Out 1 x +12V Power Out
DC Power In 1 x Standard DIN 4PIN type
Power Management
Power Adapter 12V@7.5A, 90W Adapter
Mechanical & Environmental
Dust and Water IP65 on Front Bezel
Tilt Adjustment 0° ~ 90°
Dimension 389 (W) x 352 (H) x 210 (D)mm
Weight 4.3 kg
Certification CE/FCC/LVD
Operation System Windows 10 IoT and Linux
TPM TPM2.0 (option)
Operation Condition 0°C to +40°C / 20 to 80% without condensation
Storage Condition -20°C to +55°C / 20 to 85% without condensation
Optional Accessories
2nd Display 9.7" (1024X768) and 10.1" (1280x800) LCD Display
Optional PCAP Touchscreen
Customer Display VFD and LCD Customer Display
MSR Bi-directional, Comply with ISO 7811 and Three Track support
Wi-Fi Wi-Fi IEEE 802.11 a/b/g/n/ac
Model
Type TP-9816U
Processor 7th Generation Kaby Lake
Intel® Core™ i3-7020U Processor
(3M Cache, 2.30 GHz)
System Memory 2 x 260 pin DDR4 SO-DIMM, up to 32GB
Storage 1 x M.2 SATA and PCIe SSD
LCD Panel - I 15.6-inch TFT LCD, 1920 (W) RGB x 1080 (H)
LCD Panel - II 15.6-inch TFT LCD, 1366 (W) RGB x 768 (H)
Touch Panel True-Flat Projected Capacitive Multi Touch
Speaker 1 x 2W High Quality Speaker
I/O Interface
USB 5 x USB-A 3.0 (Bottom)
2 x USB 2.0 (Panel Side)
LAN 1 x RJ45 10/100/1000Mbps Giga Ethernet
COM 3 x COM (RJ45), w/RI/5V/12V (Bottom)
HDMI 1 x HDMI Port
Audio 1 x Line-out and 1 x MIC-in
Cash Drawer 1 x RJ11 port supports 2 cash drawer with 12V or 24V by jumper
DC Power Out 1 x +12V Power Out
DC Power In 1 x Standard DIN 4PIN type
Power Management
Power Adapter 12V@7.5A, 90W Adapter
Mechanical & Environmental
Dust and Water IP65 on Front Bezel
Tilt Adjustment 0° ~ 90°
Dimension 389 (W) x 352 (H) x 210 (D)mm
Weight 4.3 kg
Certification CE/FCC/LVD
Operation System Windows 10 IoT and Linux
TPM TPM2.0 (option)
Operation Condition 0°C to +40°C / 20 to 80% without condensation
Storage Condition -20°C to +55°C / 20 to 85% without condensation
Optional Accessories
2nd Display 9.7" (1024X768) and 10.1" (1280x800) LCD Display
Optional PCAP Touchscreen
Customer Display VFD and LCD Customer Display
MSR Bi-directional, Comply with ISO 7811 and Three Track support
Wi-Fi Wi-Fi IEEE 802.11 a/b/g/n/ac
