Sturdy Panel PCs to ensure reliable and uninterrupted operationn
Offers a wide variety of connectivity, automation, and mounting options
7th Generation Fanless Intel® Core Processors with PCAP 10-point multi-touch screen

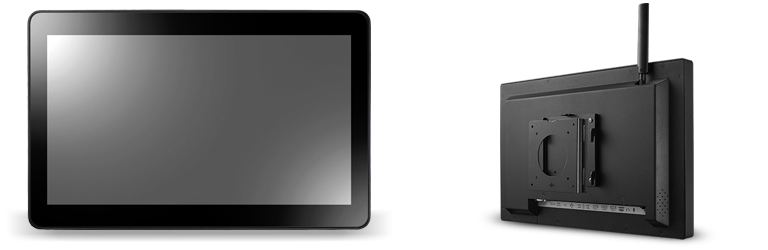

Compliant with 75 x 75 / 100 x 100 VESA Standard
Facilitate Easy Implementation and Installation
Designed to fit into different businesses environment and easy to maintain
Fanless and ventless solution to keep airborne particulates out of the internal casing
Versatile I/O Interfaces
HDMI, VGA, DC power jack, USB, audio line-out and MIC-in ports to provide optimal connectivity
IP65 front bezel design, properly rated for protection against liquids and dusts
Stainless Steel model available
Our all in one panel PC is easier to clean. Ideal for food, beverage and pharmaceutical industries
The New PPC Series
Come in a wide range of sizes to meet different situational need
15 inches, 15.6 inches, 18.5 inches and 21.5 inches
Photo Gallery
Specifications
| Model Name | PPC-1615 | PPC-1715U | PPC-1815U |
| Processor | Intel® Celeron® J6412 (1.5M Cache, up to 2.60 GHz) | 6th Generation Sky Lake Intel® Core™ i5-6360U (4M Cache, up to 3.1 GHz) |
7th Generation Kaby Lake Intel® Core™ i3-7020U (3M Cache, 2.30 GHz) |
| System Memory | 2 x 260 pin DDR4 SO-DIMM, up to 32GB | ||
| Storage | 1 x M.2 SATA and PCIe SSD | ||
| LCD Panel | 15-inch TFT LCD, 1024 (W) RGB x 768 (H) | ||
| Touch Panel | True-Flat Projected Capacitive Multi Touch | ||
| Speaker | 2 x 2W High Quality Speaker | ||
| I/O Interface | |||
| USB | 1 x USB-A 3.2 and 1 x USB-C 3.2 (Bottom) 2 x USB-A 3.0 (Bottom) 1 x USB 2.0 (Panel Side) |
4 x USB-A 3.0 (Bottom) 1 x USB 2.0 (Panel Side) |
|
| LAN | 1 x RJ45 10/100/1000Mbps Giga Ethernet | ||
| COM | 3 x COM (RJ45), w/ RI/5V/12V (Bottom) | ||
| HDMI | 1 x HDMI Port | ||
| VGA | 1 x VGA Port | ||
| Audio | 1 x Line-out and 1 x MIC-in | ||
| Cash Drawer | 1 x RJ11 port supports 2 cash drawer with 12V or 24V by jumper | ||
| DC Power Out | 1 x +12V Power Out | ||
| DC Power In | 1 x Standard DIN 4PIN type | ||
| Power Management | |||
| Power Adapter | 12V@5A, 60W Adapter | ||
| Mechanical & Environmental | |||
| Enclosure | SGCC | ||
| Dust & Water Proof | IP65 on Front Bezel | ||
| Dimension | 349.6 (W) x 273.6 (H) x 44.9 (D)mm | ||
| Weight | 4.5 kg | ||
| Certification | CE/FCC/LVD | ||
| Operation System | Windows 10 IoT Enterprise | ||
| Operation Condition | 0°C to +40°C / 20 to 80% without condensation | ||
| Storage Condition | -20°C to +55°C / 20 to 85% without condensation | ||
| Optional Accessories | |||
| MSR | Comply with ISO 7811 and Three Track support | ||
| Wi-Fi | Wi-Fi IEEE 802.11 a/b/g/n/ac | ||
| 4G LTE | 4G LTE Mini-PCIe | ||
| VESA Bracket | VESA-Compatible, 75 x 75 and 100 x 100 (mm) | ||
Learn more
