Compatible with ESC/POS print commands
Multi I/O Interface
3-in-1 Design (RS-232, Ethernet and USB)
with speed up to 250mm/sec
![The Thermal Receipt Printer with ESC/POS Print Commands](/upload/images/prp_250c_1.png)
User-Friendly & Compact Design
PRP-250CL features DHCP client mode for receiving IP address
from the DHCP server automatically
![The Thermal Receipt Printer in Color Variation](/upload/images/prp_250c_2.png)
![The Thermal Receipt Printer with Jam-Free Printing](/upload/images/prp_250c_3.png)
Durable and Reliable for Business Applications
Supporting various drivers and multiple language fonts selectable
Easy Installation and Maintenance
Featuring drop-and-print paper installation, auto-feed replacement, auto-cut capability and simple paper jam elimination
![The Thermal Receipt Printer with Jam-Free Printing](/upload/images/prp_250c_4.png)

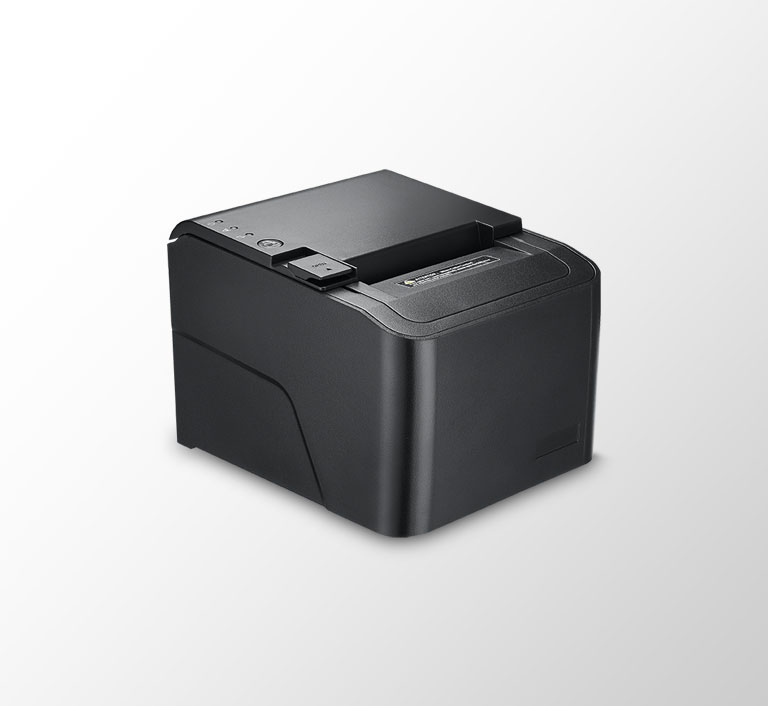

Photo Gallery
Specifications
Model | ||
PRP-250C | PRP-250CL | |
General | ||
Type | Economic, Basic | Advanced Features |
Print Method | Thermal line printing | |
Print Speed | 250 mm/sec | |
Print Life | 100 Km | |
Print Font (ASCII Mode) | ANK Font Font A: 12 x 24 dots Font B: 9 x 17 dots |
|
Print Font (Graphic Font) | Chinese character: 24 x 24 dots | |
Print Resolution | 576 dots/line or 512 dots/line | |
Print Font Character Support | International Font Big 5 Chinese GB Chinese |
International Font Big 5 Chinese GB Chinese Japanese Korean |
Character Per Line | 48 (Font A) / 42 (Font B) | |
Effective Print Width | 72mm | |
Paper Width | 79.5mm ± 0.5mm | |
Paper Roll Diameter | ≦ 83mm | |
Paper Thickness | 0.06 ~ 0.08mm | |
Driver | Win 9X / Win ME / Win 2000 / Win 2003 / Win NT / Win XP / Win Vista / Win 7 / Win 10, Support OPOS and ESC / POS | |
Print Command | ESC/POS print command sets | |
Auto Cutter | Partial | |
Paper End Detection | Yes | |
Over-Heat Halt-on Protection | Yes | |
DHCP Client Mode | No | Supported |
Buffer | ||
Receipt Buffer | 40K bytes | 128K bytes |
User-Defined Buffer | 64K bytes | 128K bytes |
NV Flash Buffer | 20K bytes | 256K bytes |
Interface | ||
Serial | Multi I/O Interface: Serial + Ethernet + USB (UTP) | |
Ethernet | Multi I/O Interface: Serial + Ethernet + USB (UTP) | |
USB | Multi I/O Interface: Serial + Ethernet + USB (UTP) | |
Cash Drawer | +24VDC/1A, 6-Wire RJ-11 | |
Others | ||
Power Input | +24VDC/2.5A (with External Adapter 100 ~ 240VAC 50/60Hz) | |
Color | Black | |
Compliance | FCC / CE / WEEE / RoHS | |
Weight | 1200g | 1250g |
Dimension (L x W x H: mm) | 183.5 x 140 x 126 | |
Operating Temperature | 0°C ~ 45°C | |
Operating Humidity | 10% ~ 80% RH non-condensing | |
Storage Temperature | -10°C ~ 60°C | |
Storage Humidity | 10% ~ 90% RH non-condensing |
