The Future of Frontline Retail

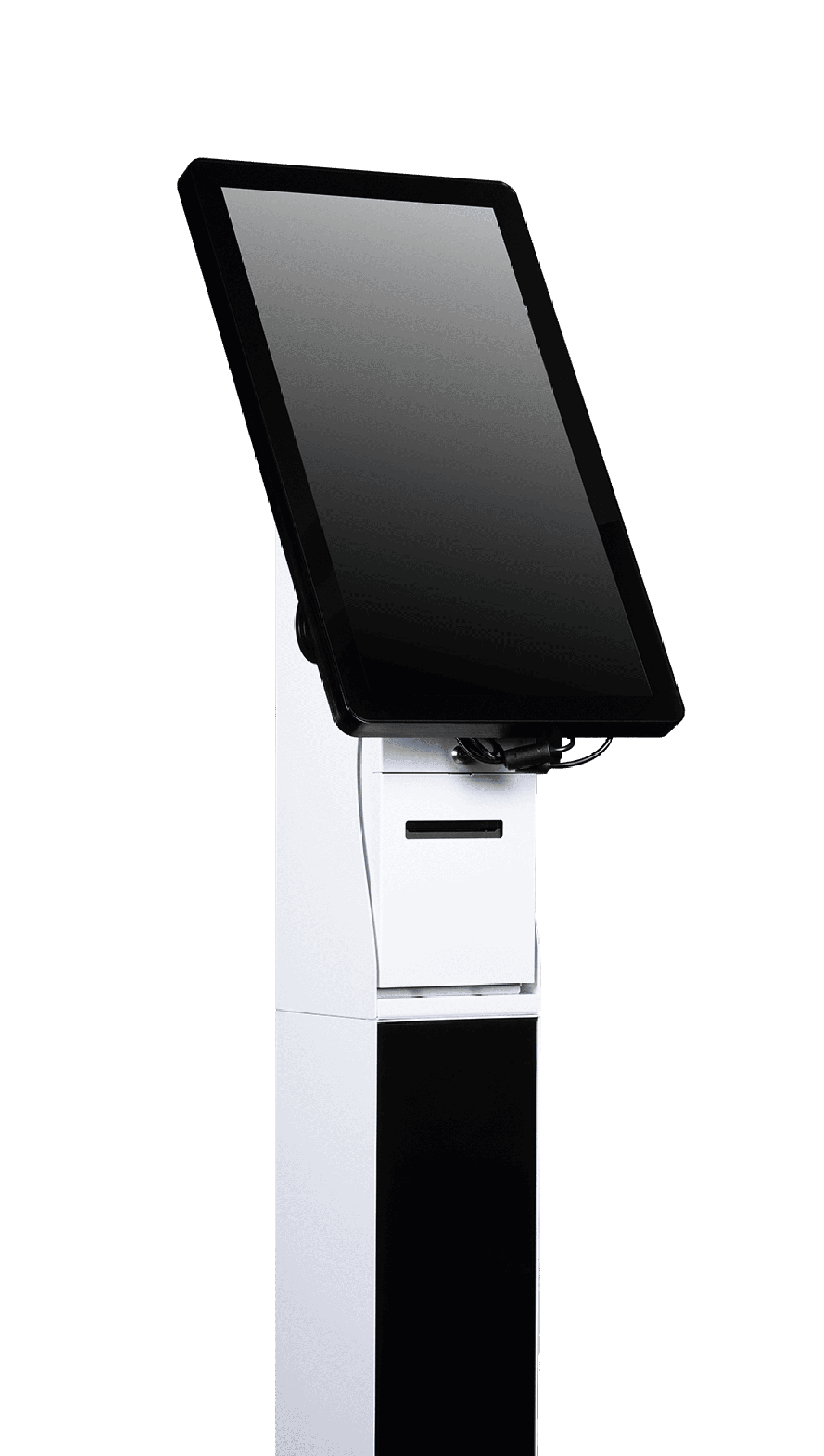

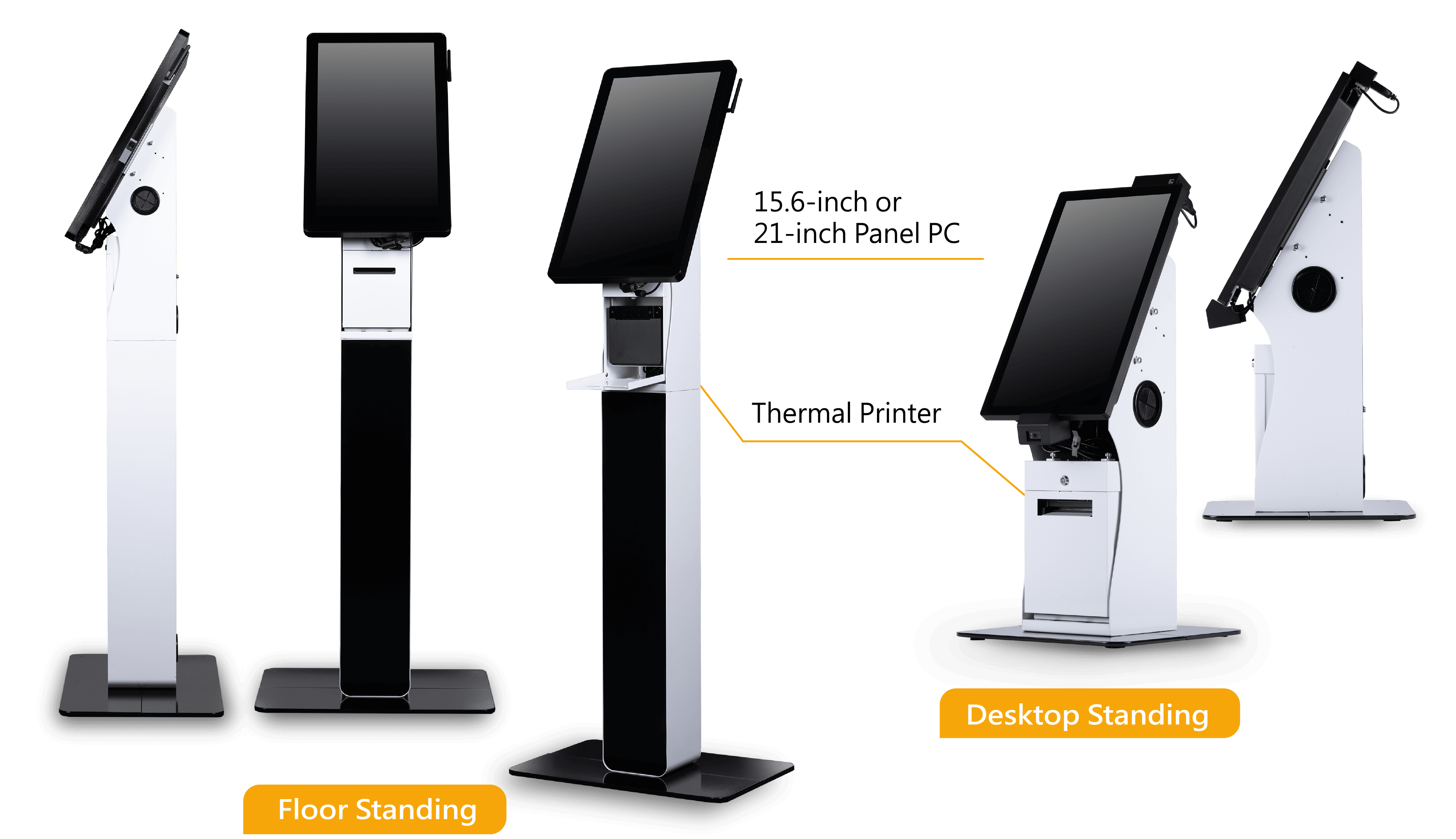

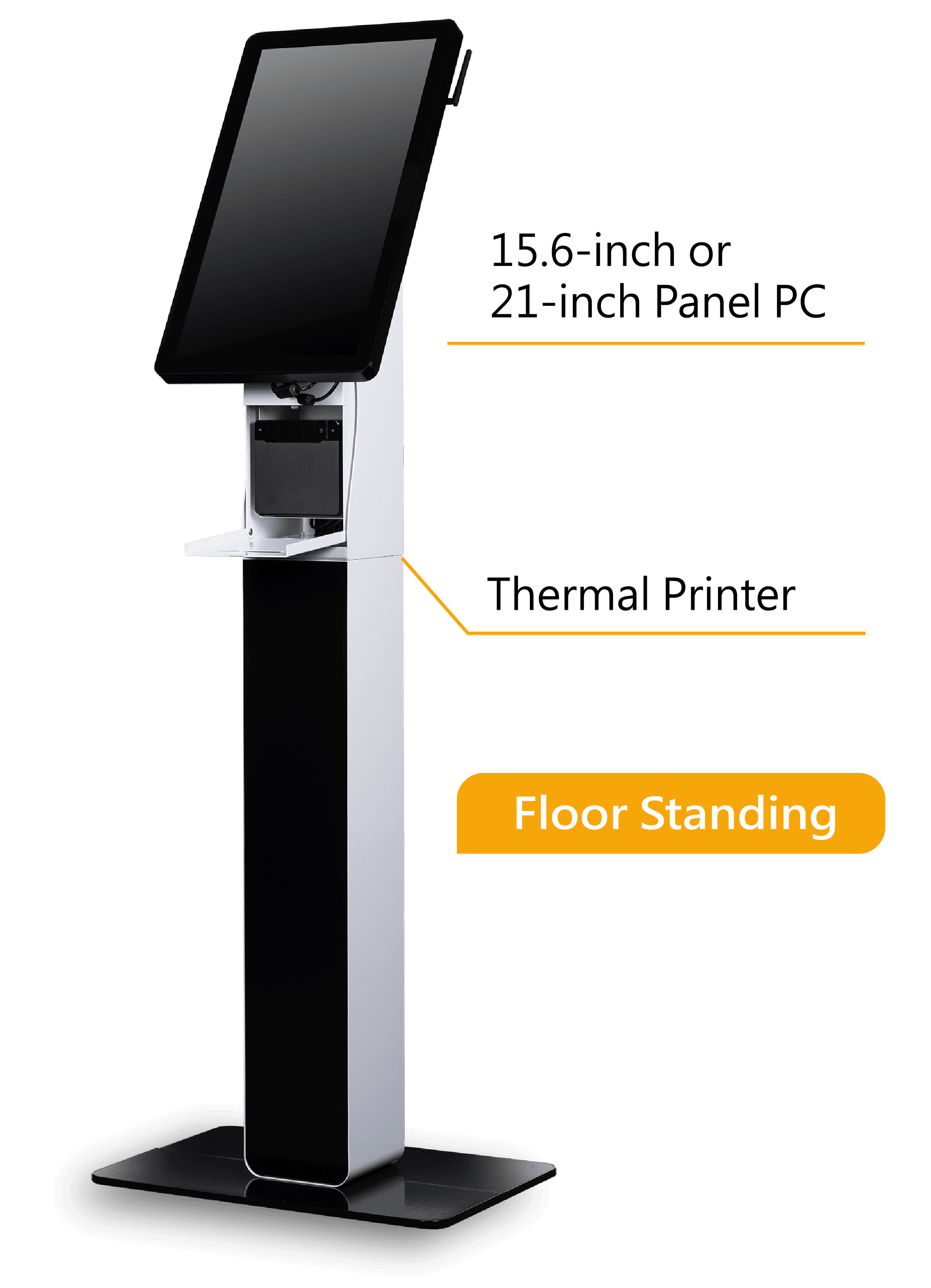

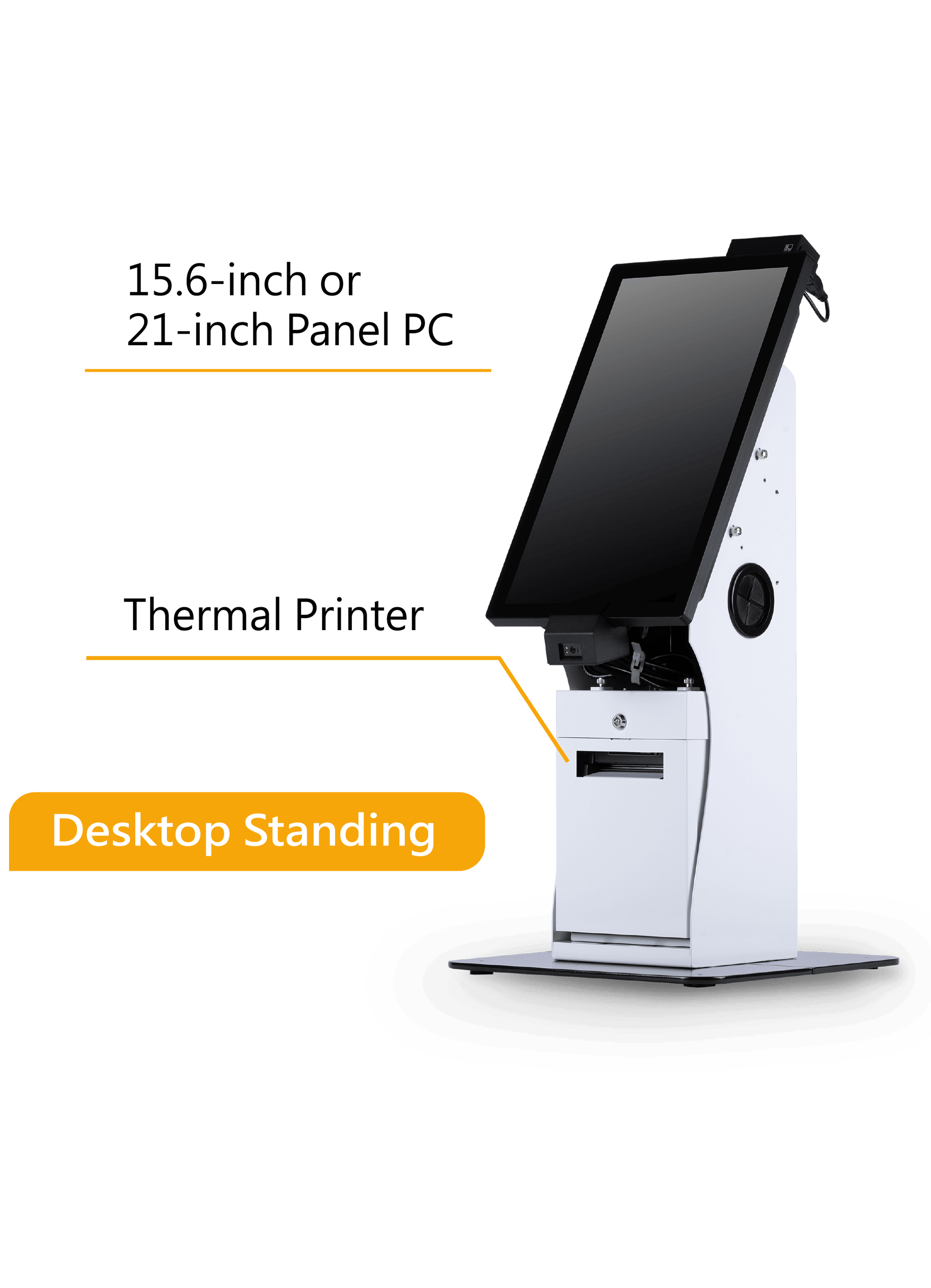

Designed for Flexible Deployment

The KD Series is developed to support a wide range of installation scenarios across retail, hospitality, and self-service environments. With support for both desktop and floor stand configurations, the system can be easily adapted to different space layouts and operational needs, making deployment more efficient and consistent.

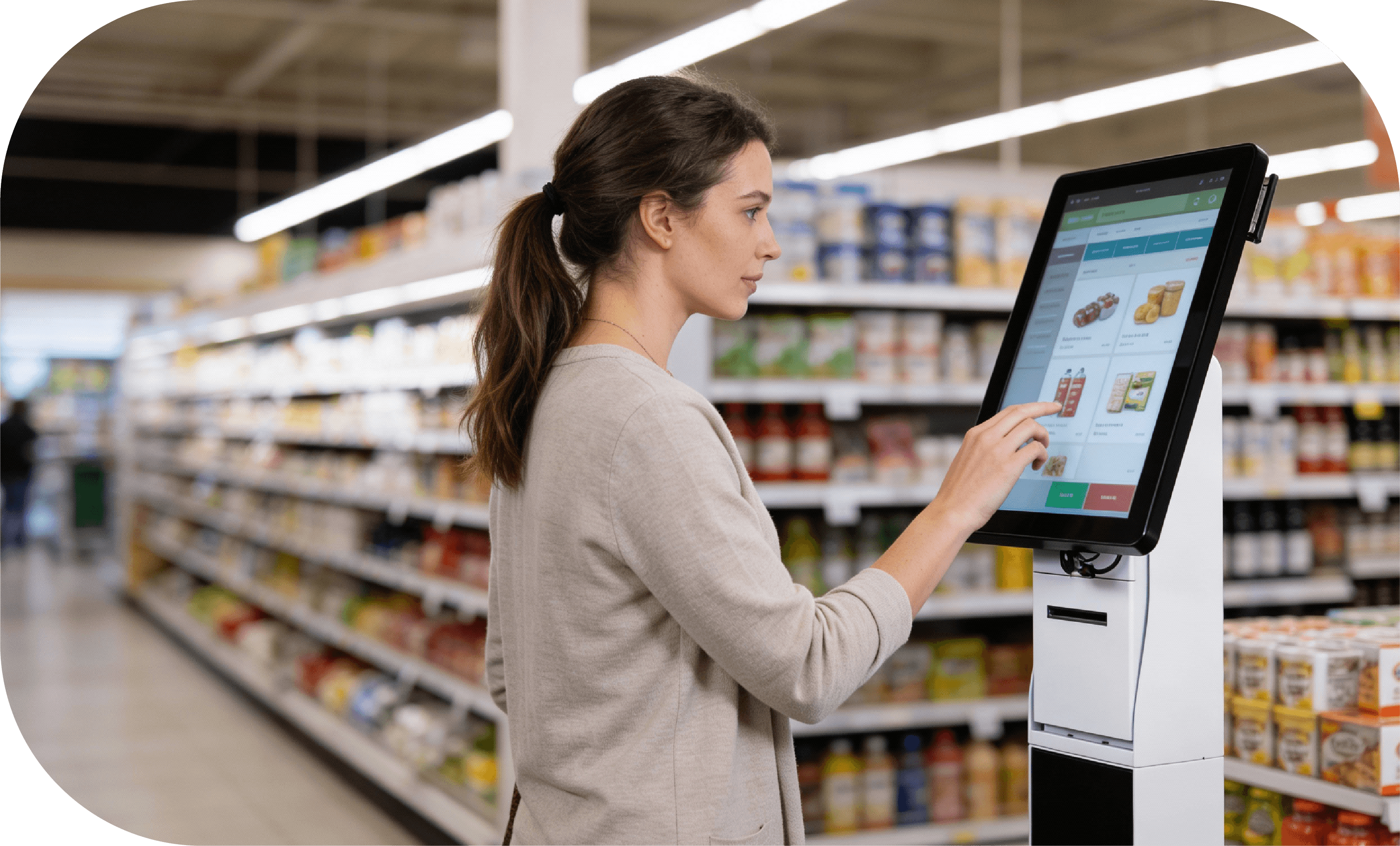

Tailored for Retail Success

Multiple Display Sizes, One Unified Design

Available in 15.6-inch and 21-inch touch display options, the KD Series allows businesses to select the display size that best fits their application while maintaining a unified system design. The detachable touch display also simplifies installation and ongoing maintenance, reducing downtime during service or upgrades.

Smart. Swift. Seamless

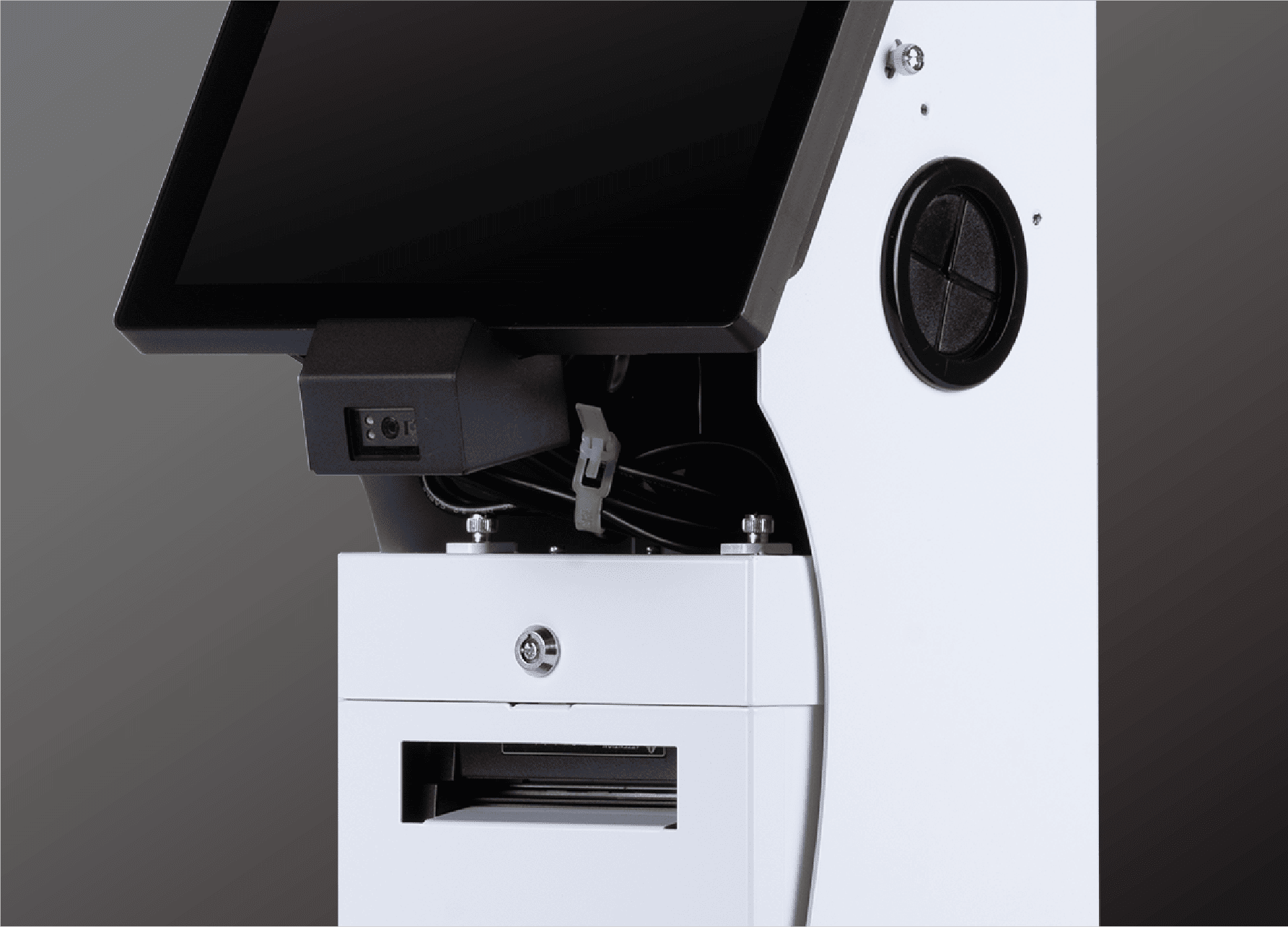

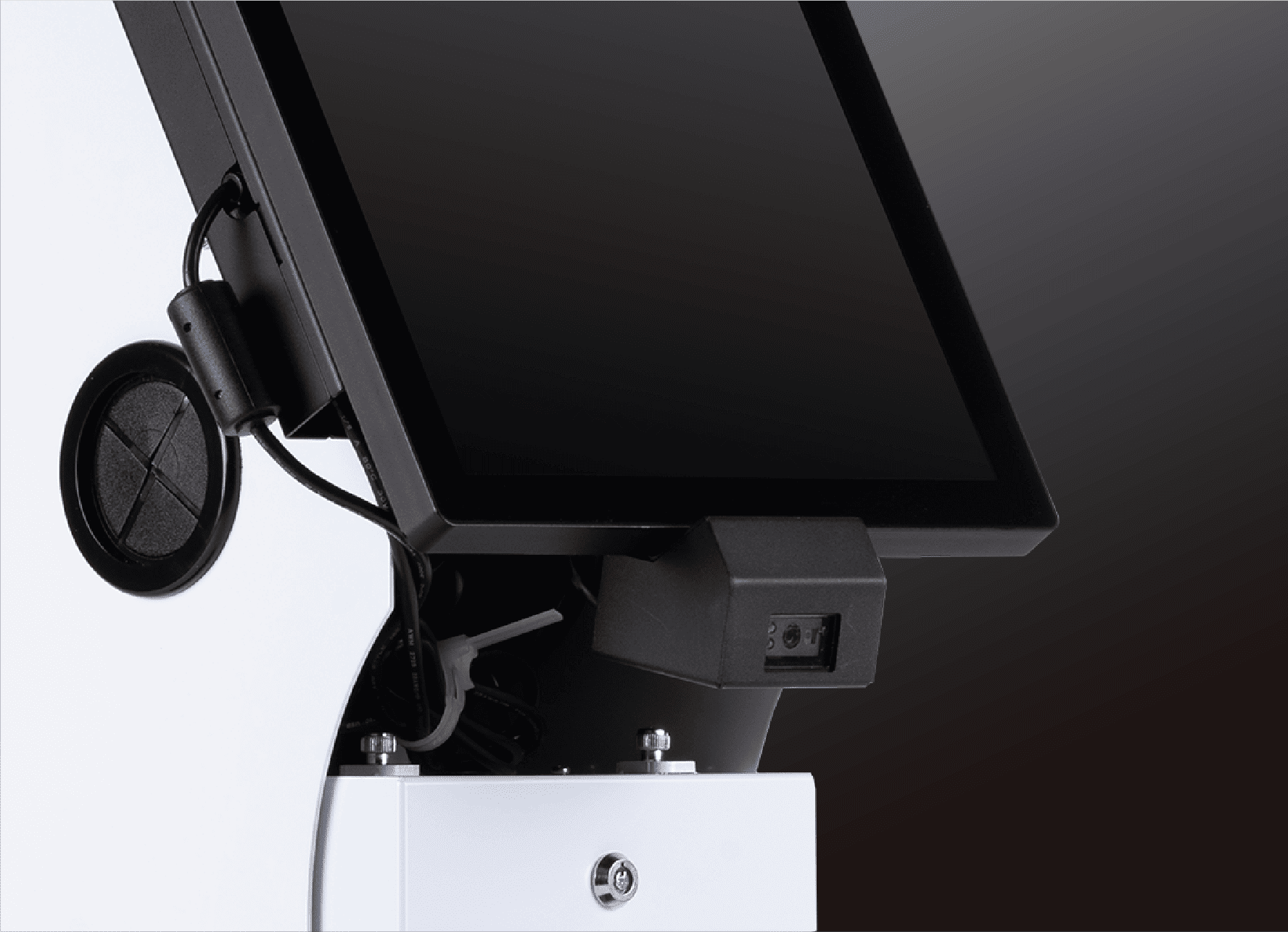

Integrated Solutions with Built-in Printer and Scanner

Operating System & Performance Options

To accommodate different software ecosystems, the KD Series is offered with Android and Windows operating system options. In addition, multiple processor configurations are available—Intel® N97, Intel® Core™ i3, and Intel® Core™ i5—allowing system integrators to choose the appropriate performance level based on application requirements.

Removable Metal Housing

Designed for Fast &
Hassle-Free Servicing

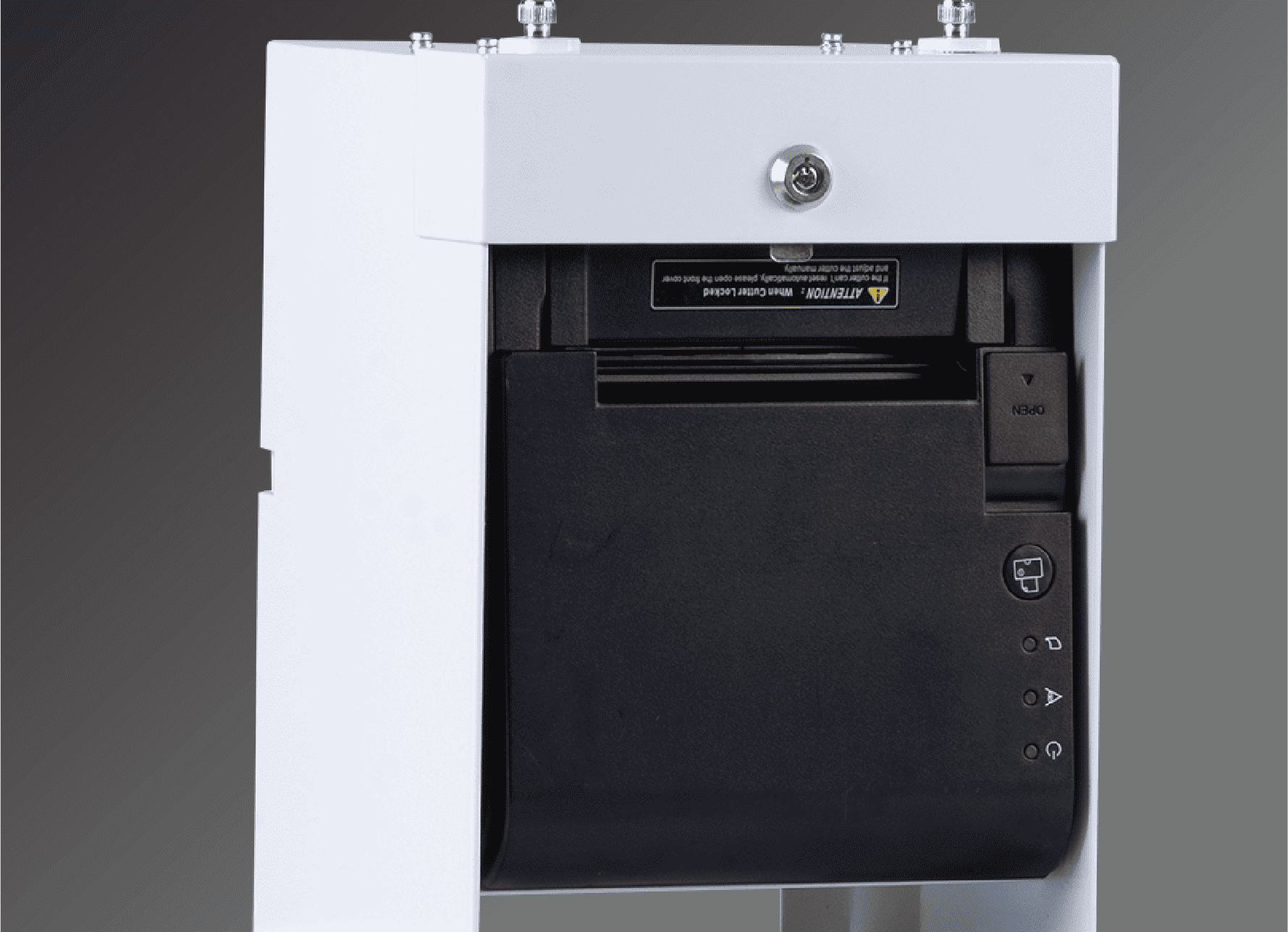

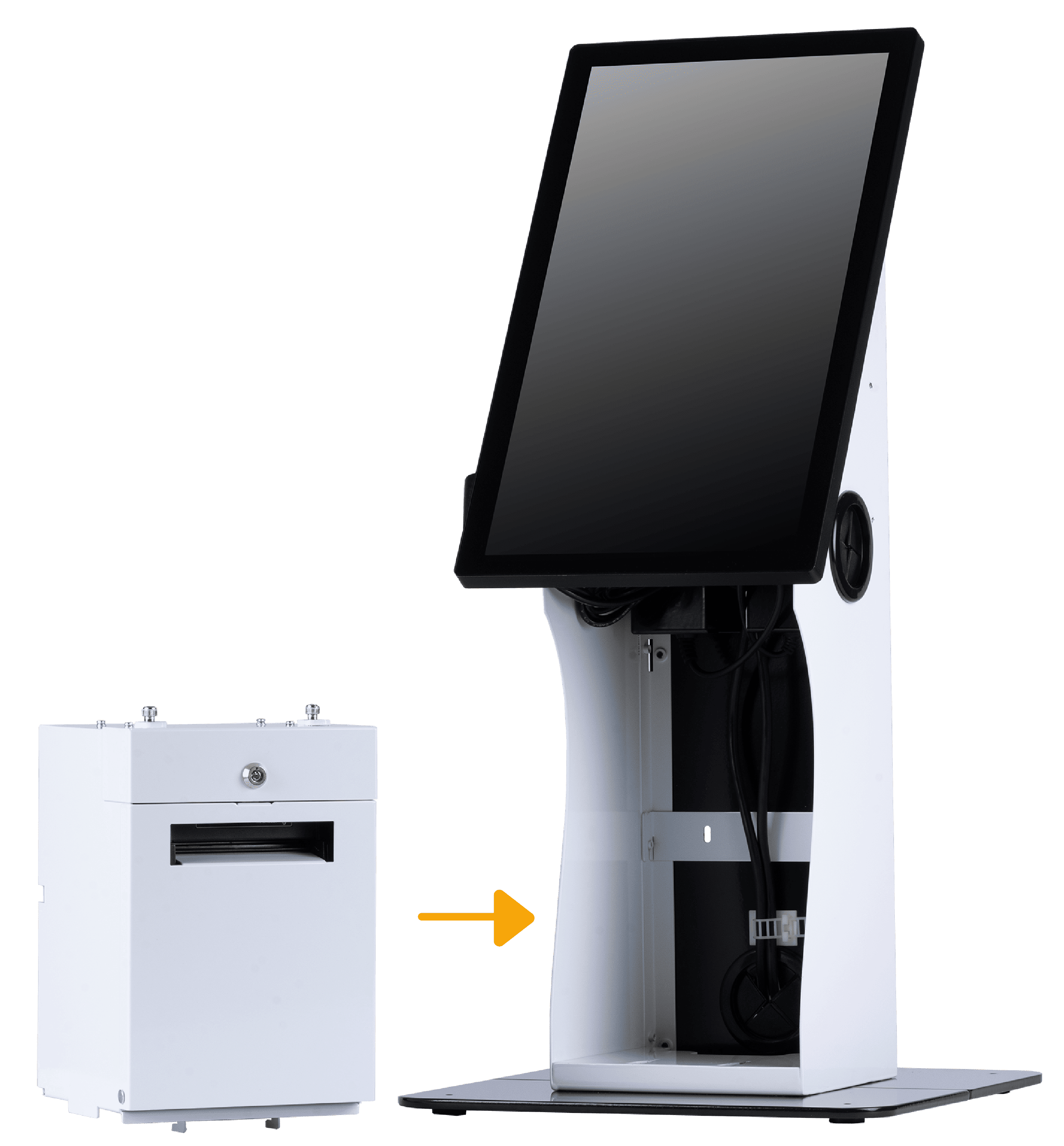

The printer’s metal housing can be easily removed, making maintenance simple and efficient.

It supports optional integration with TYSSO PRP-250CL or PRP-550 thermal printer models.

Clean Integration with Practical Design

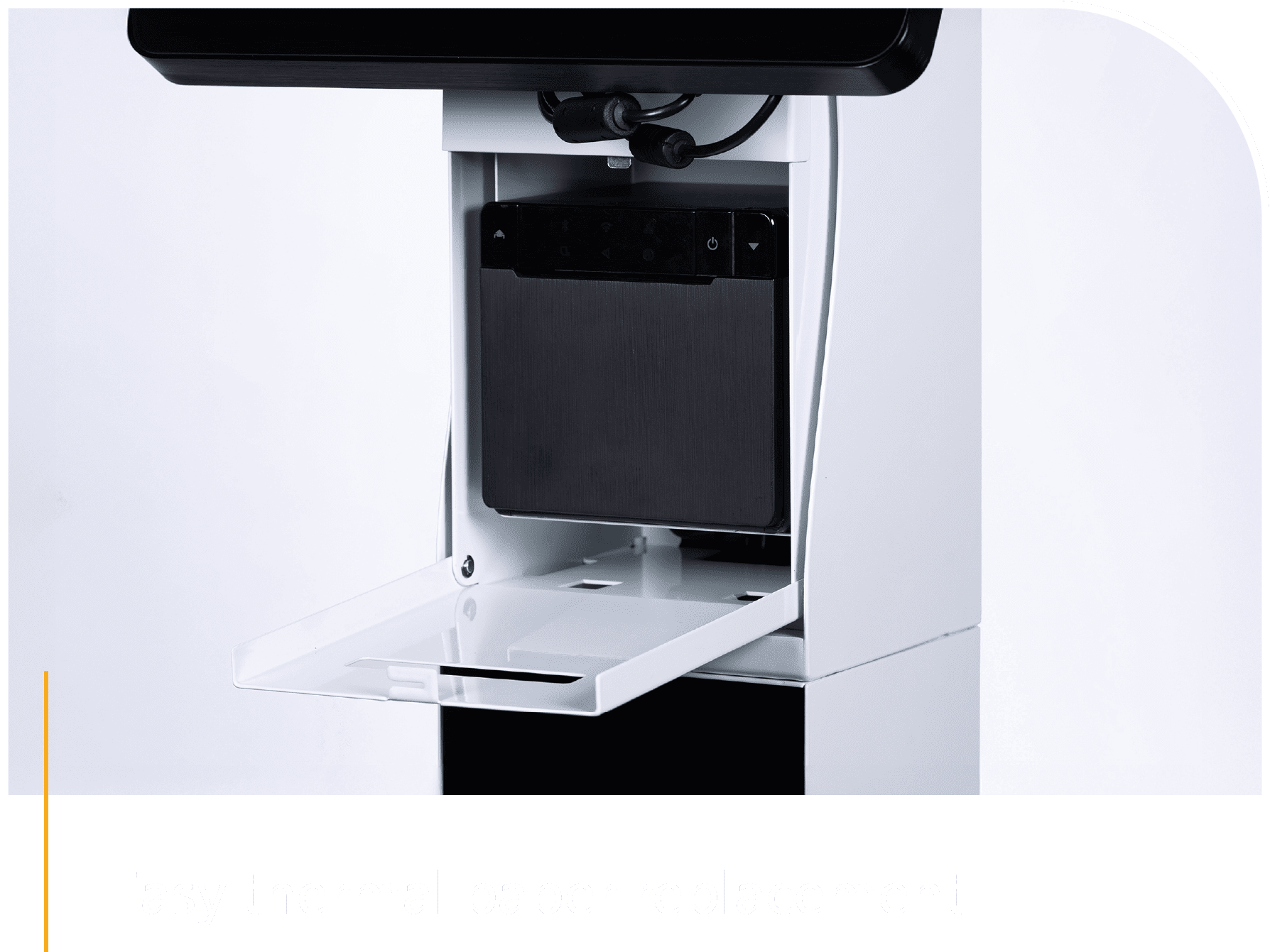

eries features an integrated cable management design that keeps wiring concealed within the enclosure, ensuring a clean and professional appearance. A specially designed bottom printer compartment allows for quick and convenient thermal paper replacement, supporting smoother daily operation in high-traffic environments.

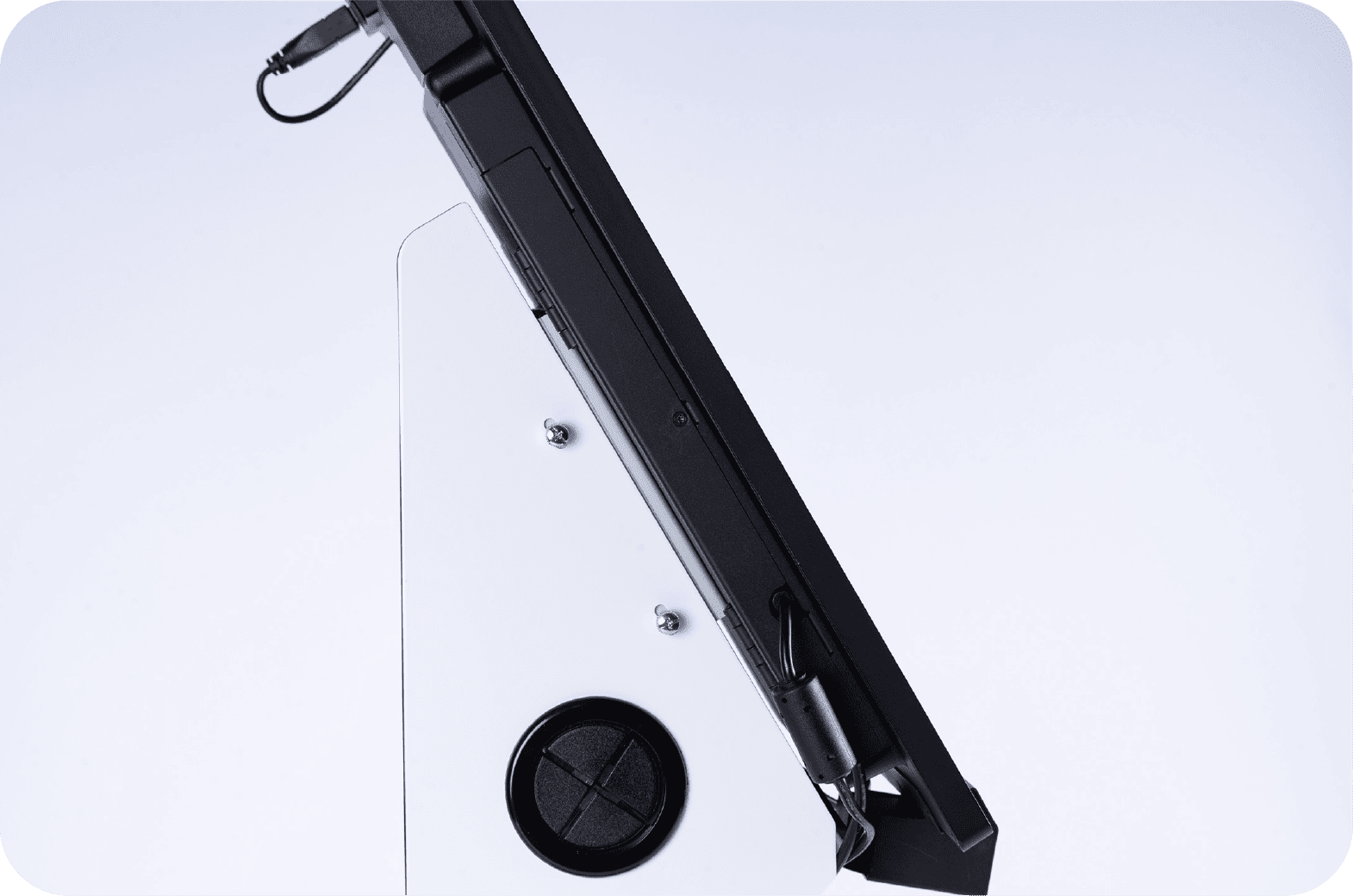

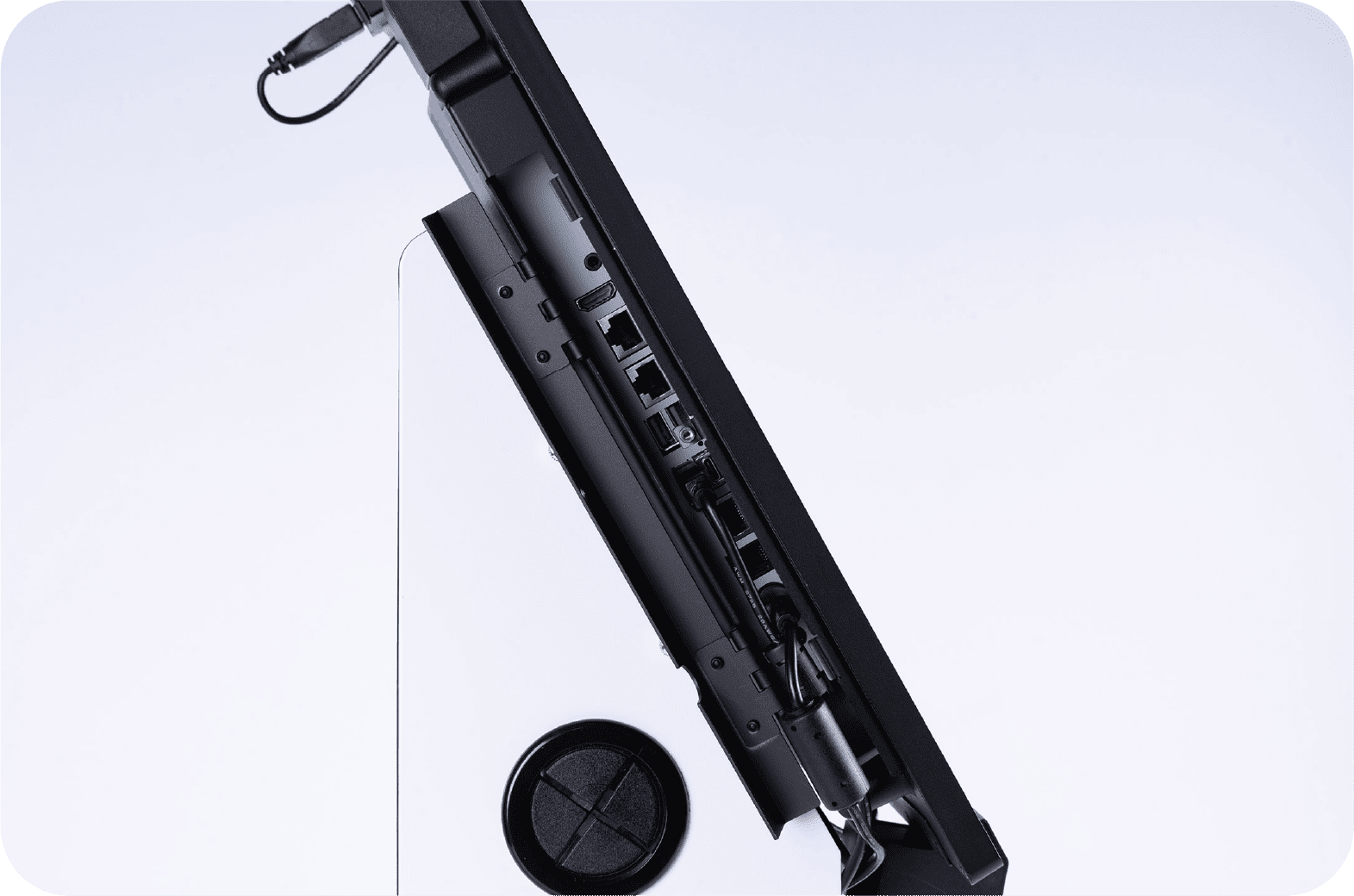

The side I/O ports are protected by a metal cover,
allowing cables to be neatly concealed inside.
Simply loosen the screws to easily connect or disconnect the cables.

Step 1

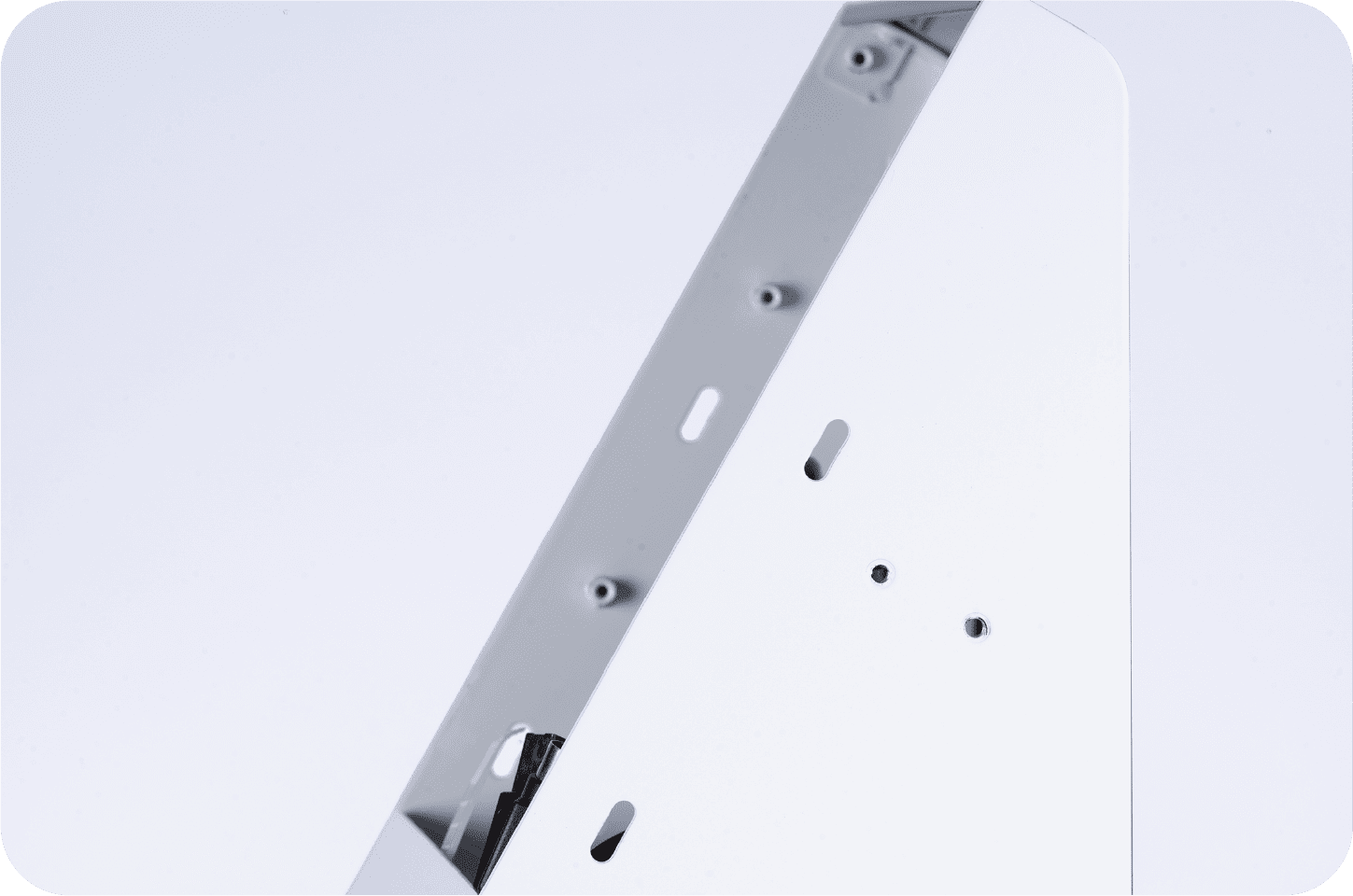

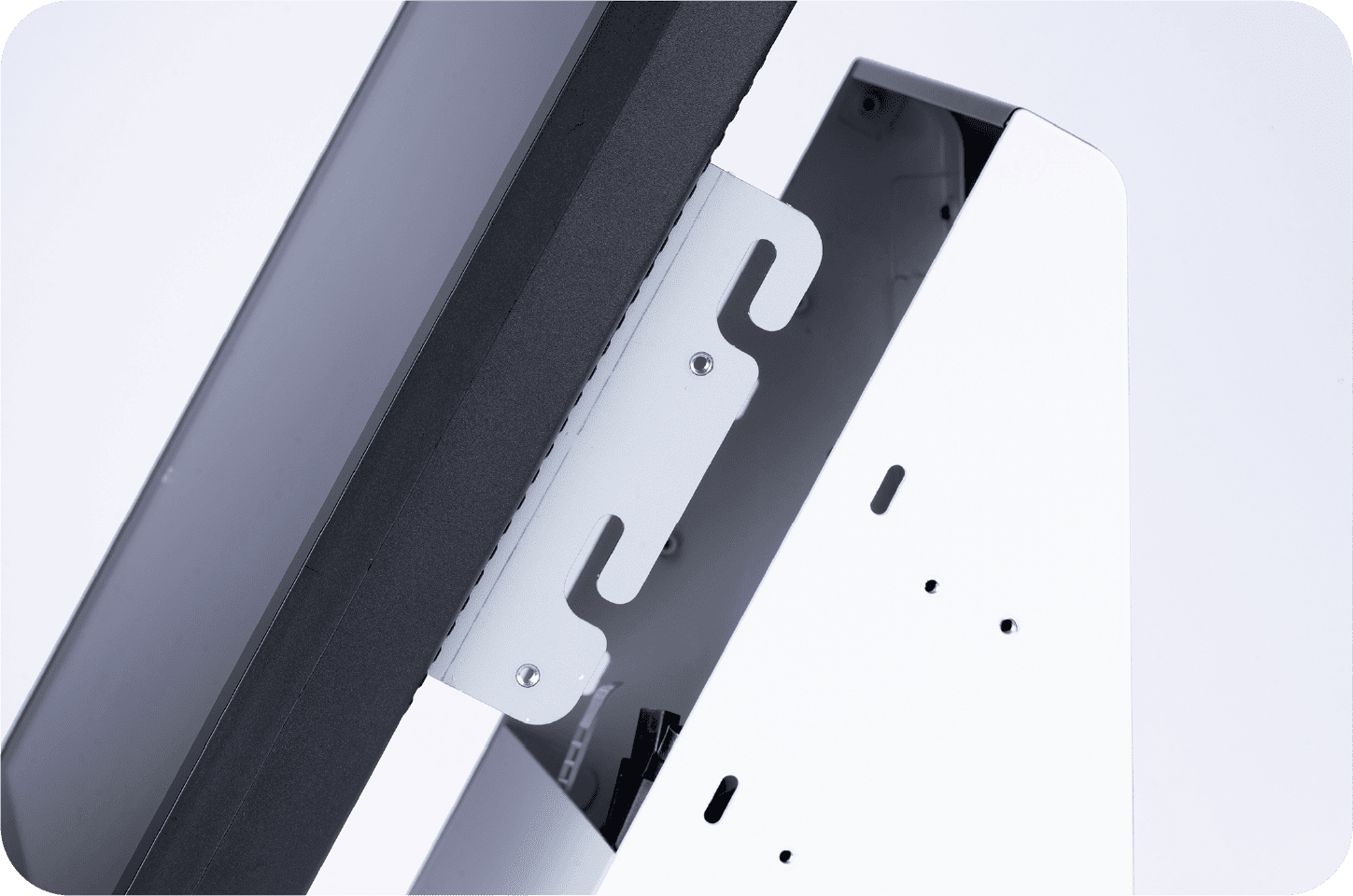

Align the Panel PC with the internal metal mounting bracket.

Step 2

Slide the Panel PC smoothly into the metal housing.

Step 3

Once fully inserted, the Panel PC is securely held in place, providing stable installation and easy access for maintenance.

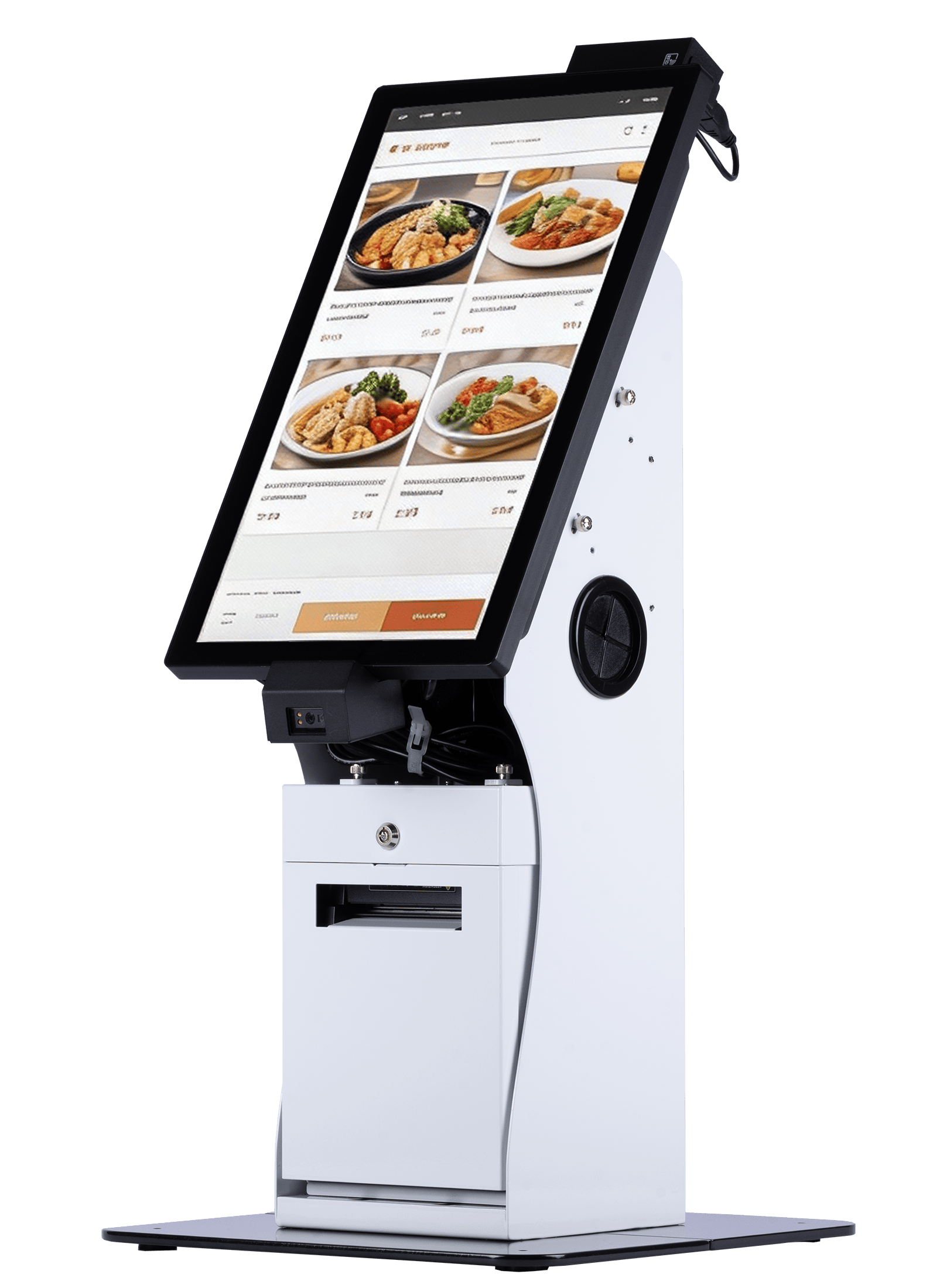

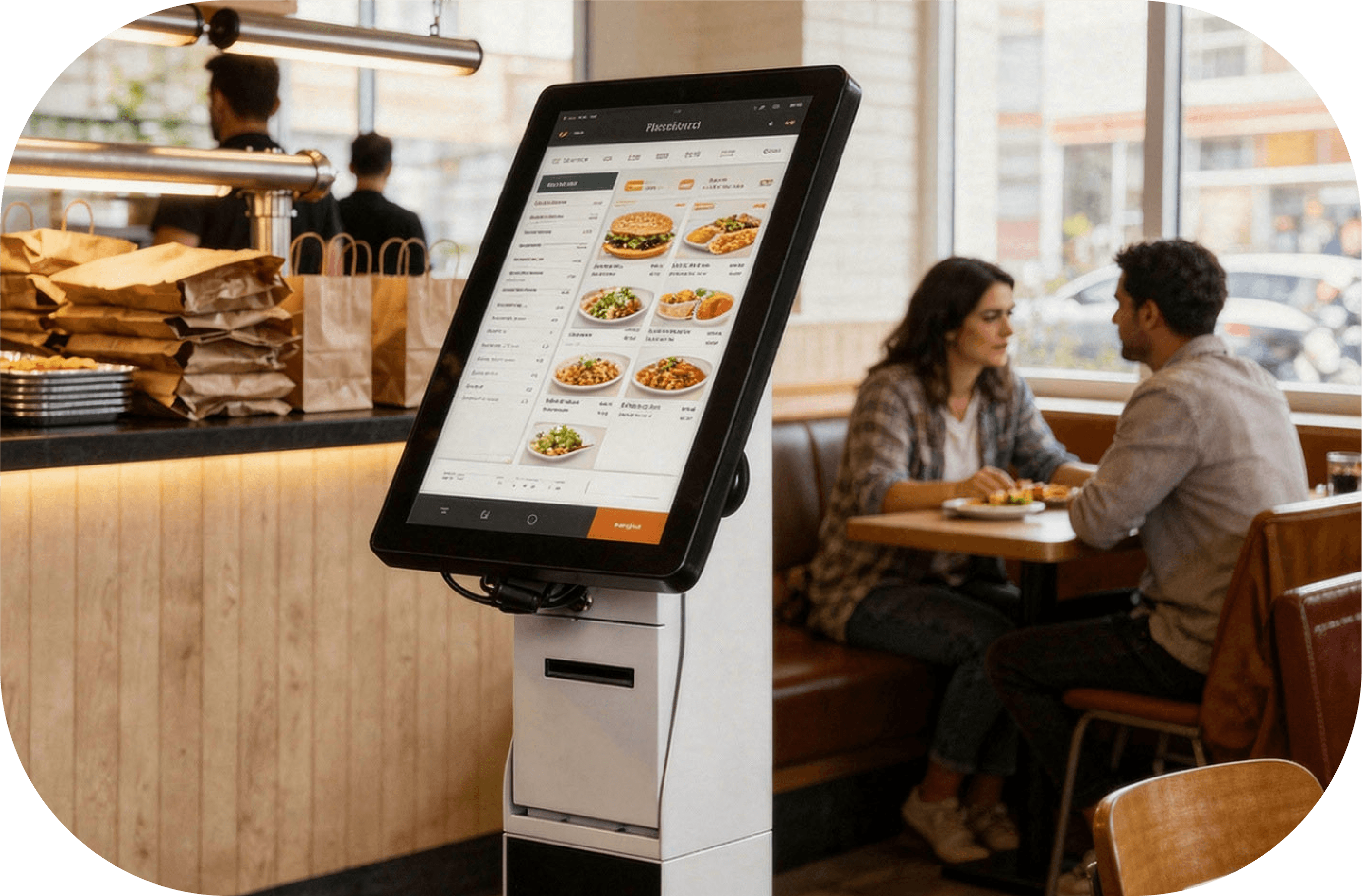

Ideal for Self-Ordering in Food & Beverage Environments

The KD Series is well suited for self-ordering applications in restaurants, cafés, and quick-service environments. With support for multiple display sizes, flexible stand configurations, and a clean, integrated system design, it enables intuitive customer interaction while helping reduce counter workload. The detachable touch display and accessible printer compartment also simplify daily operation and maintenance, making the KD Series a practical choice for high-traffic food service settings.

Photo Gallery

Specifications

Choose Model

KD-2116A / KD-1616N / KD-2816P
KD-2121A / KD-2621N / KD-2821P

Model Name		KD-2116A	KD-1616N	KD-2816P
Core Logic	Processor	ARM Rockchip Rkn4K3568 Quad-core Cortex-A55 2.0GHz	Intel®N97 (Alder Lake) 6M Cache, Max. 3.6 GHz Intel® N95 (Alder Lake) 6M Cache, Max. 3.4 GHz	Intel® Core™i3-1215U (Alder Lake) 10M Cache, Max. 4.4 GHz Intel® Core™i5-1235U (Alder Lake) 12M Cache, Max. 4.4 GHz Intel® Core™i7-1255U (Alder Lake) 12M Cache, Max. 4.7 GHz
	Memory	Onboard 4GB LPDDR4 3200MHz	1 x 260 pin DDR4 SO-DIMM (3200MTs, up to 16GB)	2 x 260 pin DDR4 SO-DIMM (3200MTs, up to 64GB)
	Storage	Onboard 32GB eMMC 5.1 1 x TF Card Slot	1 x M.2 SSD (PCIe3.0 x 4 NVMe / SATA)	1 x M.2 SSD (PCIe4.0 x 4 NVMe / SATA)
LCD Panel	Panel Size	15.6-inch TFT LCD
	Resolution	1920 (H) RGB x 1080 (W)
	Brightness	350nits
	View Angle	89° / 89° / 89° / 89°
Touch Panel	Modular Parts	True-Flat PCAP Touch
RF Communication	Wi-Fi / 4G LTE	Wi-Fi IEEE 802.11 a/b/g/n/ac	Option
Speaker	Internal Speaker	1 x 2W Speakers
I/O Expansion
Internal I/O	USB	1 x USB 3.0 Type A 1 x USB 2.0 Type A 1 x USB Micro (w/ ADB)	1 x USB 3.2 Type A 1 x USB 3.2 Type C (w/ QC) 2 x USB 2.0 Type A	3 x USB 3.2 Type A 1 x USB 3.2 Type C (w/ DP ALT mode)
	COM	1 x COM (DB9)(TX/RX), w/ 5V 1 x COM (DB9)(TX/RX), w/ 5V/3.3V by Resistor	2 x COM (RJ45), w/ RI/5V/12V by BIOS
	HDMI	1 x HDMI Port
	VGA	N/A	1 x Line-out/MIC-in
	LAN	1 x RJ45 10/100/1000Mbps Giga Ethernet	1 x RJ45 10/100/1000Mbps Giga Ethernet
	Audio	1 x Line-out/MIC-in
	Cash Drawer	N/A	1 x RJ11 Port supports 2 cash drawer w/ 12V/24V by jumper
	Extra Card Slot	1 x TF Card Slot 1 x Standard SIM Card Slot	N/A
	DC Power Out	N/A	1 x DC 12V Power Out (DC 2.1mm)
	DC Power In	1 x DC 12V Power In (DC 2.0mm)	1 x Standard DIN 4PIN type
	Power Switch	1 x SPST-NO Momentary Rocker Switch
External I/O	USB	3 x USB 2.0 type A (for 2D/RFID/Wi-Fi)
External I/O	COM	N/A
Mechanical & Environmental
Physical Characteristics	Surface Color Plan	Standard or Customizable by project
	Brand Logo	Customizable by project
	Dimension (W x H x D mm)	Panel PC Only : 228.31(W) x 378.31(H) x 41(D) mm Desktop Standing : 310(W) x 638.25(H) x 310.5(D) mm Floor Standing : 540(W) x 1459.25(H) x 369.5(D) mm
	Weight (N.W / KG)	Panel PC Only : 4KG Desktop Standing : 16.5KG Floor Standing : 35.5KG
Certification		N/A	FCC/CE/LVD
Operation System		Android 11	Windows 10/11
Environment	Operation Condition	0°C to +45°C / 20 to 80% without condensation
Environment	Storage Condition	-5°C to +55°C / 20 to 85% without condensation

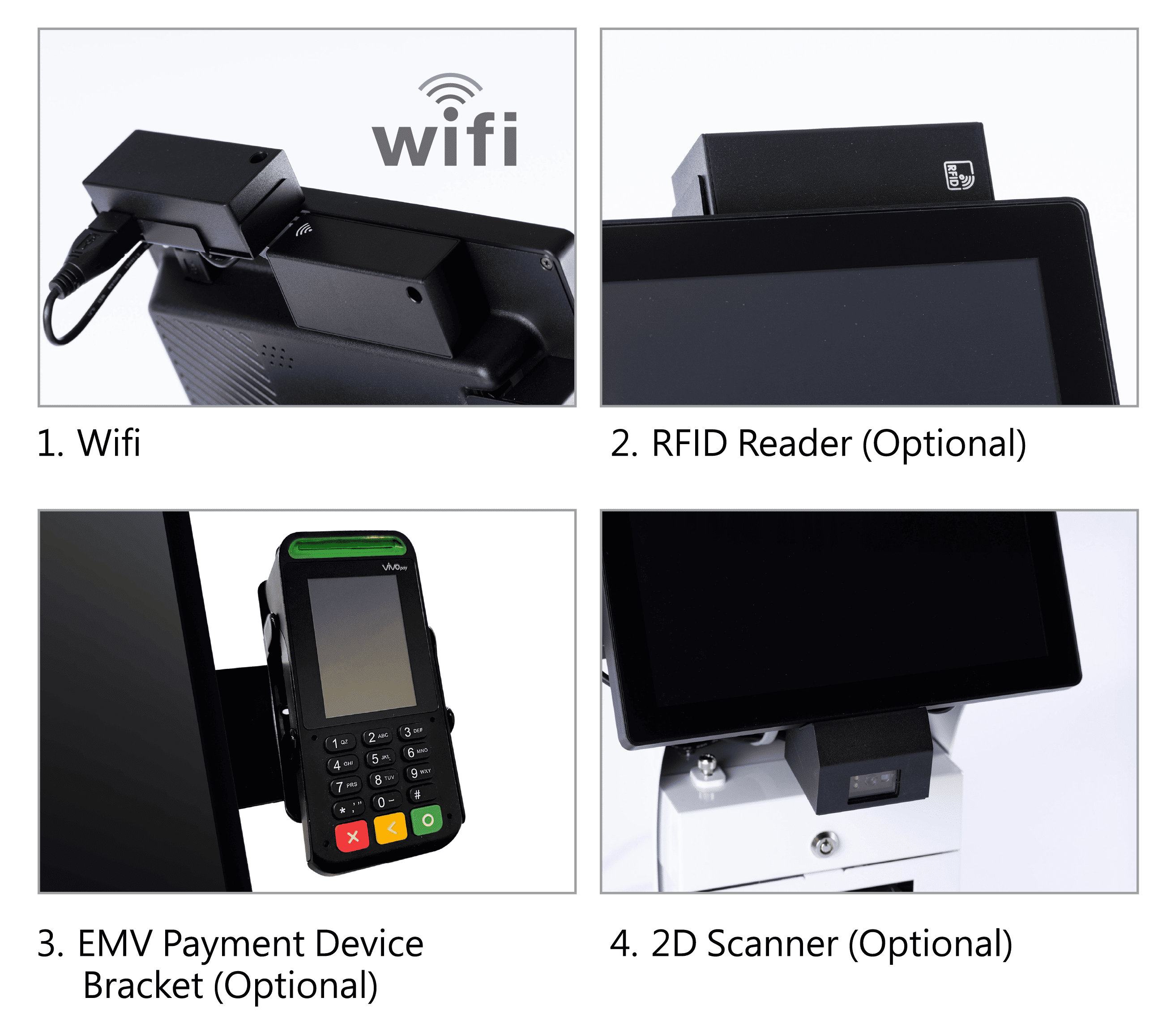

Optional Accessories
Thermal Printer		2" or 3" standalone thermal printer with cutter 203 dpi and Max. 250 mm/s supported

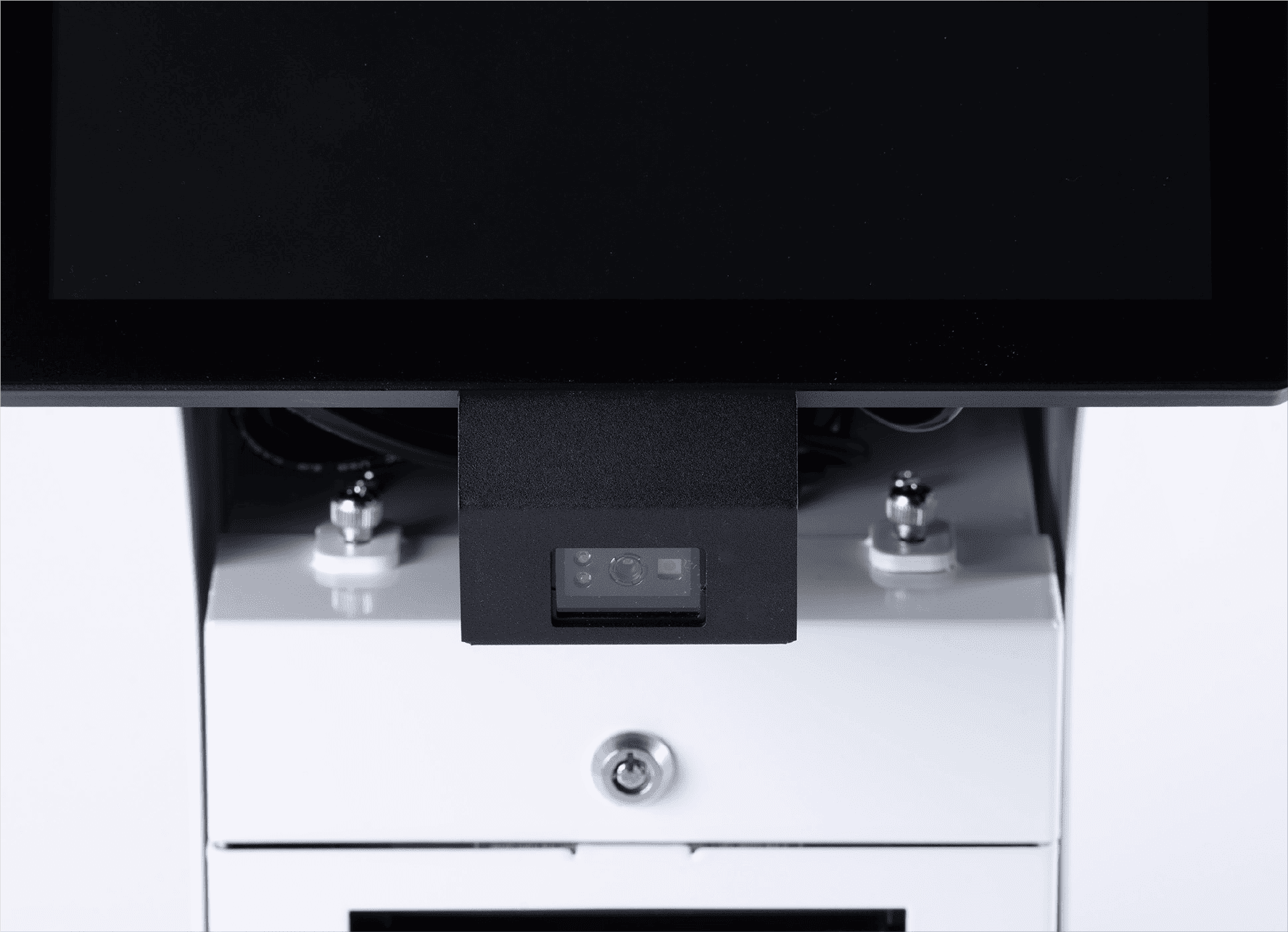

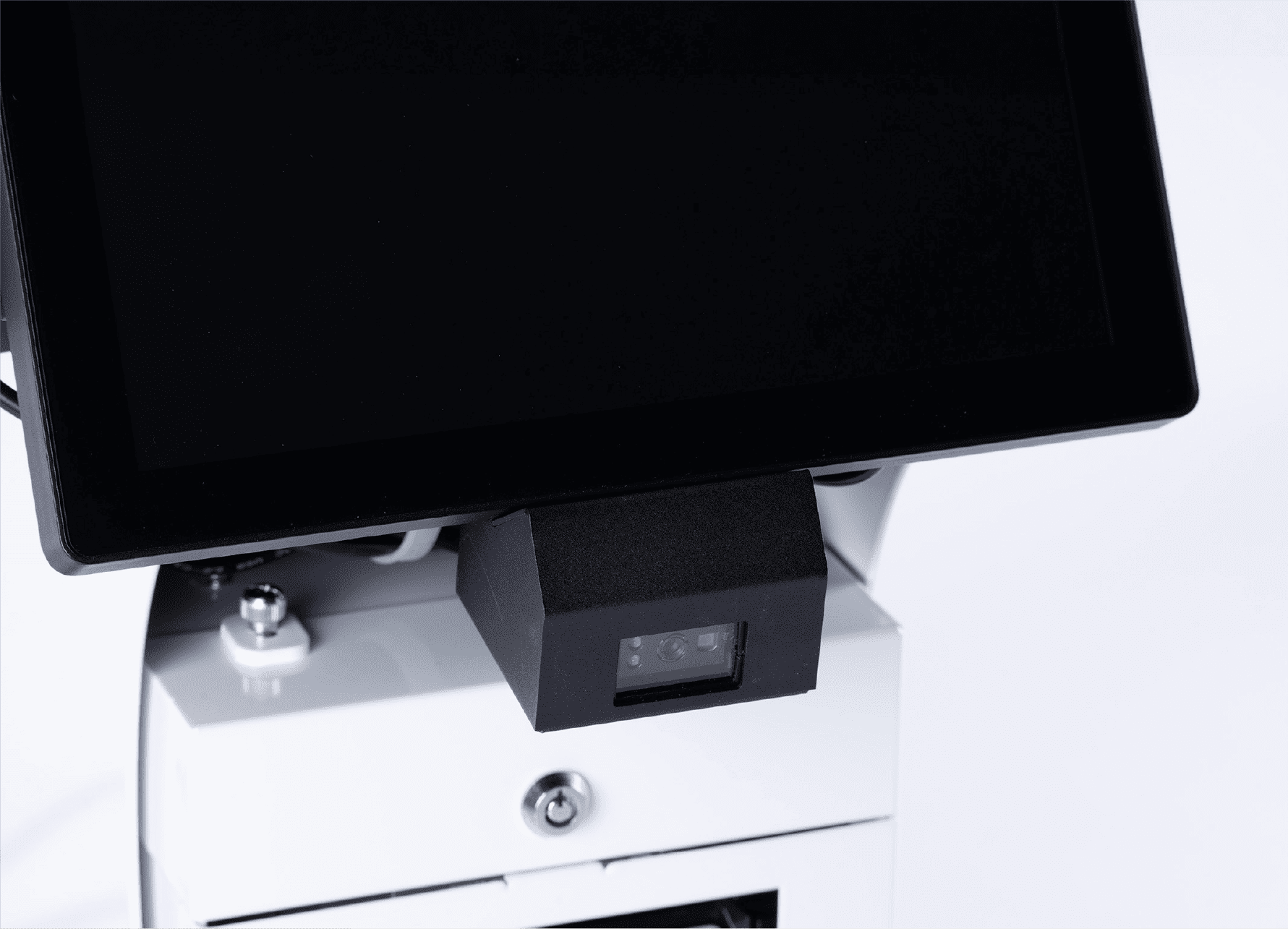

QR Code Scanner (Panel Bottom)		Fixed mount barcode scanner, 752 x 480 CMOS, Red LED Scan modes : Sense mode, Continuous mode

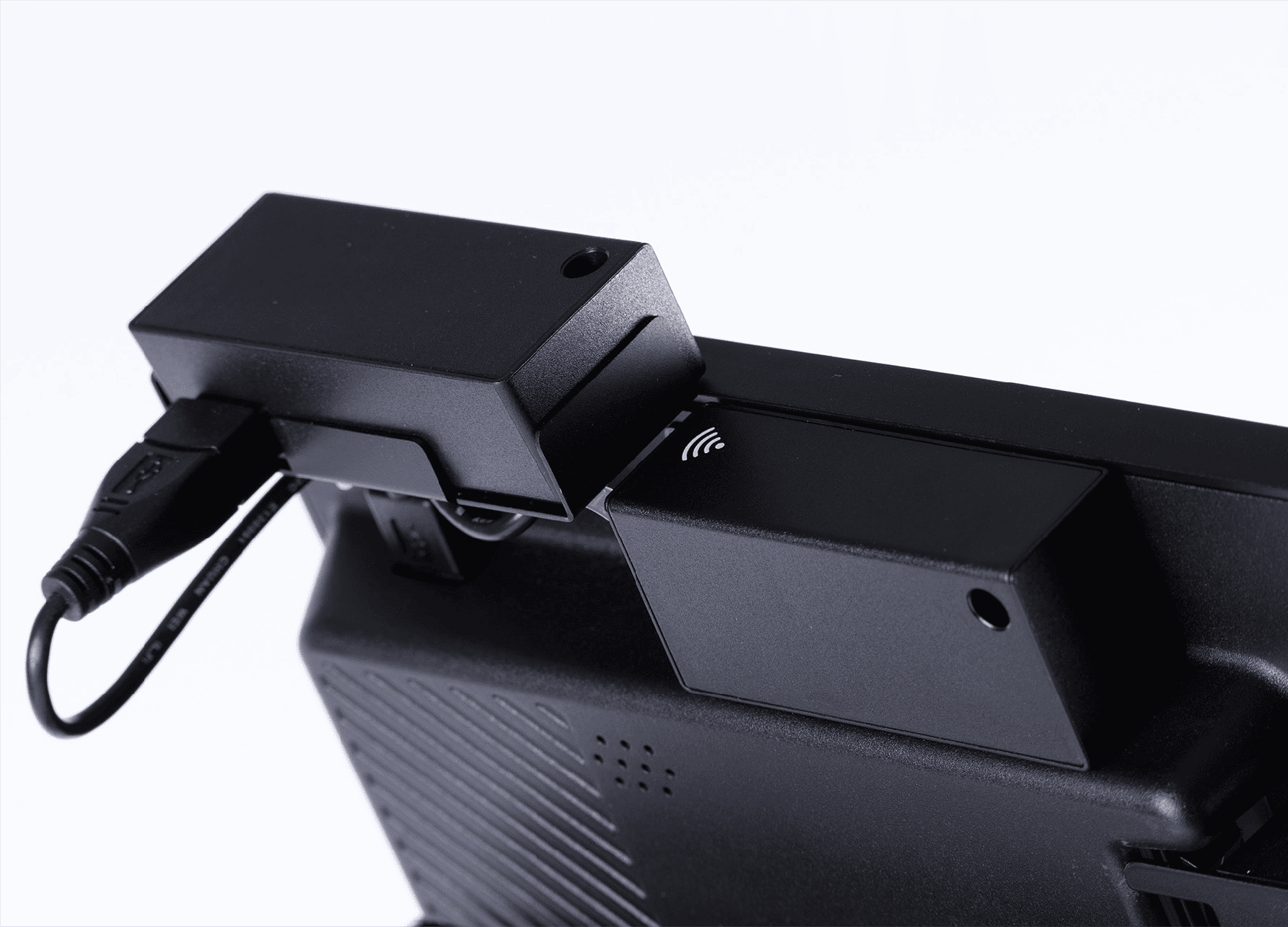

NFC/RFID Reader (Panel Top)		RFID 13.56 MHz, Comply Mifare, ISO14443AB-4 and Felica
Wi-Fi		Wi-Fi IEEE 802.11 a/b/g/n/ac (PCB antenna on front bezel)
4G LTE		G/LTE mPCIe Card w/ Swivel Antenna (paddle type)
EMV Payment Device Bracket		Right mount bracket

Model Name	KD-2121A	KD-2621N	KD-2821P
Core Logic	Processor	ARM Rockchip Rkn4K3568 Quad-core Cortex-A55 2.0GHz	Intel®N97 (Alder Lake) 6M Cache, Max. 3.6 GHz Intel®N95 (Alder Lake) 6M Cache, Max. 3.4 GHz	Intel® Core™ i3-1215U (Alder Lake) 10M Cache, Max. 4.4 GHz Intel® Core™i5-1235U (Alder Lake) 12M Cache, Max. 4.4 GHz Intel® Core™i7-1255U (Alder Lake) 12M Cache, Max. 4.7 GHz
Memory	Onboard 4GB LPDDR4 3200MHz	1 x 260 pin DDR4 SO-DIMM (3200MTs, up to 16GB)	2 x 260 pin DDR4 SO-DIMM (3200MTs, up to 64GB)
Storage	Onboard 32GB eMMC 5.1 1 x TF Card Slot	1 x M.2 SSD (PCIe3.0 x 4 NVMe / SATA)	1 x M.2 SSD (PCIe4.0 x 4 NVMe / SATA)
LCD Panel	Panel Size	21.5-inch AHVA LED Panel
Resolution	1920 (H) RGB x 1080 (W)
Brightness	350nits 500nits (option)
View Angle	89° / 89° / 89° / 89°
Touch Panel	Modular Parts	True-Flat PCAP Touch (G+G)
RF Communication	Wi-Fi / 4G LTE	Wi-Fi IEEE 802.11 a/b/g/n/ac	Option
Speaker	Internal Speaker	2 x 2W Speakers
I/O Expansion
Internal I/O	USB	3 x USB 2.0 Type A 1 x USB 3.0 Type A 1 x USB 2.0 Micro (OTG)	1 x USB 3.2 Type A 1 x USB 3.2 Type C (w/ QC) 2 x USB 2.0 Type A 2 x USB 2.0 Type A (option)	3 x USB 3.2 Type A 1 x USB 3.2 Type C (w/ QC) 2 x USB 2.0 Type A (option)
COM	1 x COM (DB9, Tx/Rx), w/ 5V	2 x COM (RJ45), w/ RI/5V/12V by BIOS 1 x COM (DB9), w/ RI/5V/12V by jumper (option)
HDMI	1 x HDMI Port
LAN	1 x RJ45 10/100/1000Mbps Giga Ethernet	1 x RJ45 10/100/1000Mbps Giga Ethernet
Audio	1 x Line-out/MIC-in
Cash Drawer	N/A	1 x RJ11 Port supports 2 cash drawer w/ 12V/24V by jumper
Extra Card Slot	1 x TF Card Slot 1 x Standard SIM Card Slot	N/A
DC Power Out	N/A	1 x DC 12V Power Out (DC 2.1mm)
DC Power In	1 x DC 12V Power In (DC 2.0mm)	1 x Standard DIN 4PIN type
External I/O	USB	3 x USB 2.0 type A (for 2D/RFID/Wi-Fi)
COM	N/A
Power Switch	1 x SPST-NO Momentary Rocker Switch
Mechanical & Environmental
Physical Characteristics	Surface Color Plan	Standard or Customizable by project
Brand Logo	Customizable by project
Dimension (W x H x D mm)	Panel PC Only : 323(W) x 531(H) x 42.7(D) mm Desktop Standing : 310(W) x 706.65(H) x 310.5(D) mm Floor Standing :540(W) x 1527.65(H) x 369.5(D) mm
Weight (N.W / KG)	Panel PC Only : 8KG Desktop Standing : 20.5KG Floor Standing : 39.5KG
Certification	N/A	FCC/CE/LVD
Operation System	Android 11	Windows 10/11
Environment	Operation Condition	0°C to +45°C / 20 to 80% without condensation
Storage Condition	-5°C to +55°C / 20 to 85% without condensation
Optional Accessories
Thermal Printer	2" or 3" standalone thermal printer with cutter 203 dpi and Max. 250 mm/s supported
QR Code Scanner (Panel Bottom)	Fixed mount barcode scanner, 752 x 480 CMOS, Red LED Scan modes : Sense mode, Continuous mode
Wi-Fi	Wi-Fi IEEE 802.11 a/b/g/n/ac (PCB antenna on front bezel)
4G LTE	4G/LTE mPCIe Card w/ Swivel Antenna (paddle type)
EMV Payment Device Bracket	Right mount bracket
