6 / 7th generation
Fanless Design with Intel® Core Processors
DDR4
Memory
3.0 / III
SATA
0/1
RAID
i-AMT
Intel support

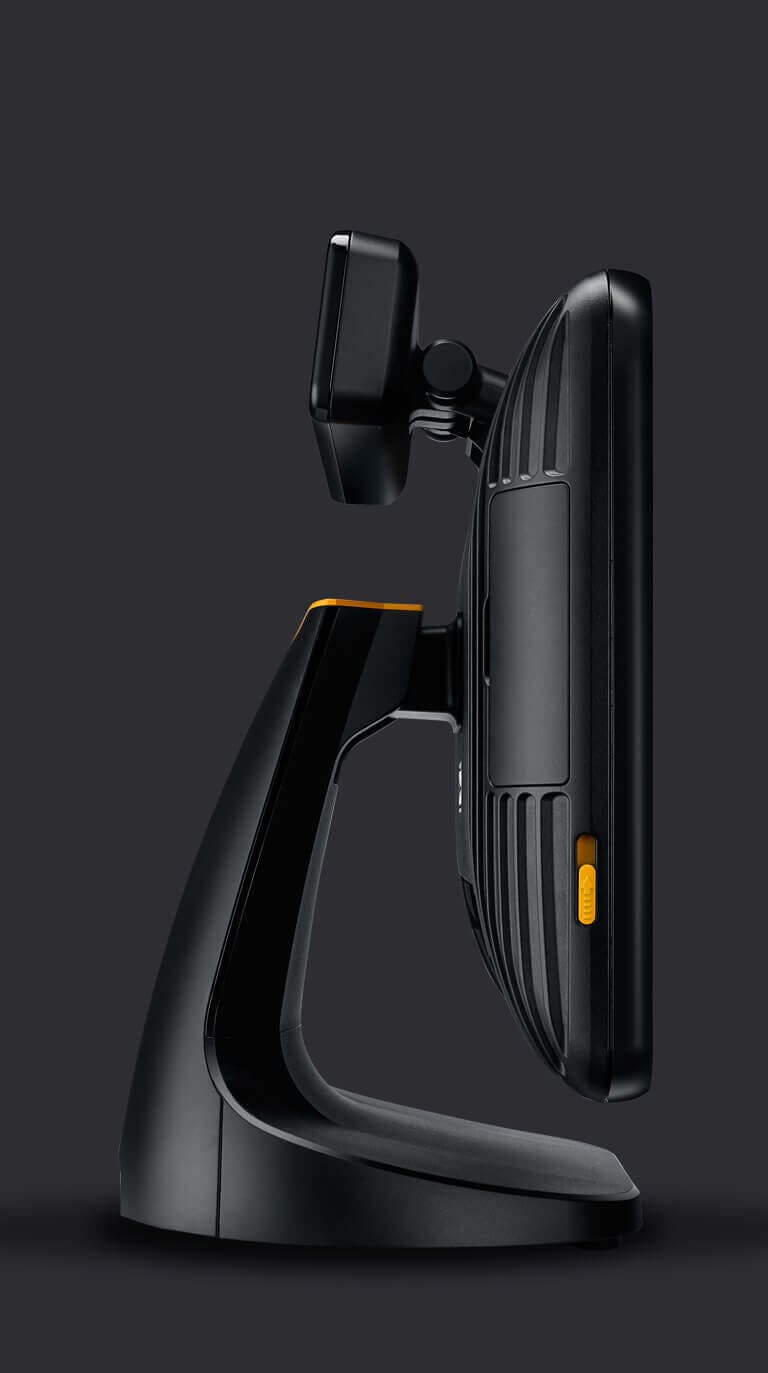

Powerful POS system optimized for quiet operation
Dominating Specs And Unconventional Design
Aluminum Die-Casting Back Cover For Optimal Thermal Dissipation
![](/upload/images/products_01_3.png)
Well-organized Cable Management
hidden Cables and power adapter
IP65/NEMA 4
Protection against falling dirt, dust and splashing water
![](/upload/images/products_01_4.png)
Rich I/O Ports, enrich your business
Rich I/O Ports and Power USB
With Power USB that can save unnecessary lines to connect printer
![](/upload/images/products_01_7.png)
Double hard disks storage slots design
Raid Capability
Front accessible drive slot for easy exchangeable drives
![](/upload/images/products_01_6.png)
Integration with Printer
Flexibility to integrate receipt printers of your choice
AP-5715
All in One version
E-Brochure![](/upload/images/AP5715.png)
Photo Gallery
Specifications
Model Name | TP-7715 | TP-7715 Plus |
Chipset | Intel® H110 | Intel® Q170 |
Processor | 6th Generation Sky Lake Intel® Celeron G3900TE (2.3GHz, Dual Core, 2M Cache) Intel® i3-6100TE (2.7GHz, Dual Core, 4M Cache) Intel® i5-6500TE (3.3GHz, Quad Core, 4M Cache) Intel® i7-6700TE (3.4GHz, Quad Core, 8M Cache) |
6th Generation Sky Lake Intel® i5-6500TE (3.3GHz, Quad Core, 4M Cache) Intel® i7-6700TE (3.4GHz, Quad Core, 8M Cache) |
Memory | 2 x DDR4 SODIMM, up to 32GB | |
Storage | 1 x 2.5" SATA BAY in Main Panel 1 x 2.5" SATA BAY in Stand (Option) |
|
N/A | Onboard RAID | |
LCD Panel | 15-inch TFT LCD with LED Backlight | |
1024 (W) RGB x 768(H) | ||
Touch Panel | True-Flat Projected Capacitive Multi Touch | |
True-Flat 5-wire Resistive Touch | ||
Speaker | 1 x 2W High Quality Speaker | |
I/O Expansion | ||
USB | 4 x USB 3.0 Type A Option : 1 x 12V and 1 x 24V Power USB or 2 x USB 2.0 |
|
LAN | 2 x RJ45 10/100/1000Mbps Giga Ethernet | |
COM | 2 x COM (DB9) and 2 x COM (RJ45), w/ RI/5V/12V | |
LPT | 1 x DB25 Parallel Port | |
HDMI | 1 x HDMI | |
Audio | 1 x Line-out | |
Cash Drawer | 1 x RJ11 port supports 2 cash drawer with 12V or 24V by jumper | |
DC Power Out | 1 x +12V Power Output | |
DC Power In | 1 x Standard Mini-DIN 4PIN type | |
Power Management | ||
Power Adapter | 12V@7.5A 90W Adapter (Hide in Stand) 12V@12.5A 150W Adapter (Option for Power USB) |
|
Mechanical & Environmental | ||
Dust and Water | IP65 on Front Panel | |
Tilt Adjustment | 15° ~ 85 ° | |
Dimension | 356 (W) x 318 (H) x 207 (D) mm | |
Weight | 9 kg | |
Certification | CE/FCC/LVD/BSMI | |
Operation System | POS Ready 7 / Windows Embedded 8.1 Industry / Windows 10 IoT / Linux (Ubuntu) |
|
Intel® AMT Support | N/A | Yes |
Operation Condition | 0°C to +40°C / 20 to 80% without condensation (Equipped with HDD) | |
Storage Condition | -20°C to +55°C / 20 to 85% without condensation | |
Optional Accessories | ||
2nd Display | 9.7" (1024 x 768) LCD Display, Option : PCAP Touch Panel | |
Customer Display | VFD, 20 Columns x 2 Lines | |
MSR | Bi-directional, Comply with ISO 7811 and Three Track support | |
i-Button | Dallas i-button Reader | |
Barcode Scanner | 2D CMOS Barcode Scanner | |
Wi-Fi | Wi-Fi IEEE 802.11 a/b/g/n/ac | |
VESA MOUNT Kit | VESA-Compatible, 75 x 75 (mm) |
