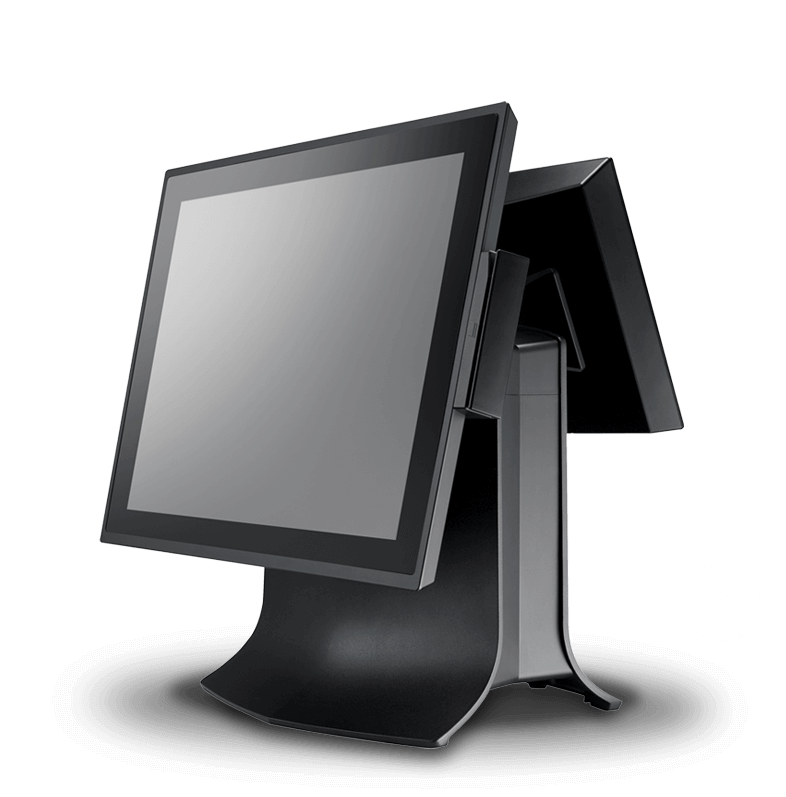

TP-8515

TP-8515

Next Generation Modular POS System

Inquiry E-Brochure

Characteristic Visual Design

Enrich your POS experience

Aluminum chassis featuring sharp angles

Classically Beautiful

Two color selectable

Matte Black

Arctic White

Wide view angle,
high brightness panel

Designed to operate in bright environments

15 inch

Full Flat LCD Display

Convenient for maintenance and debugging

Slide-out Motherboard tray design

Able to slide out the whole motherboard tray while securing the cables behind it

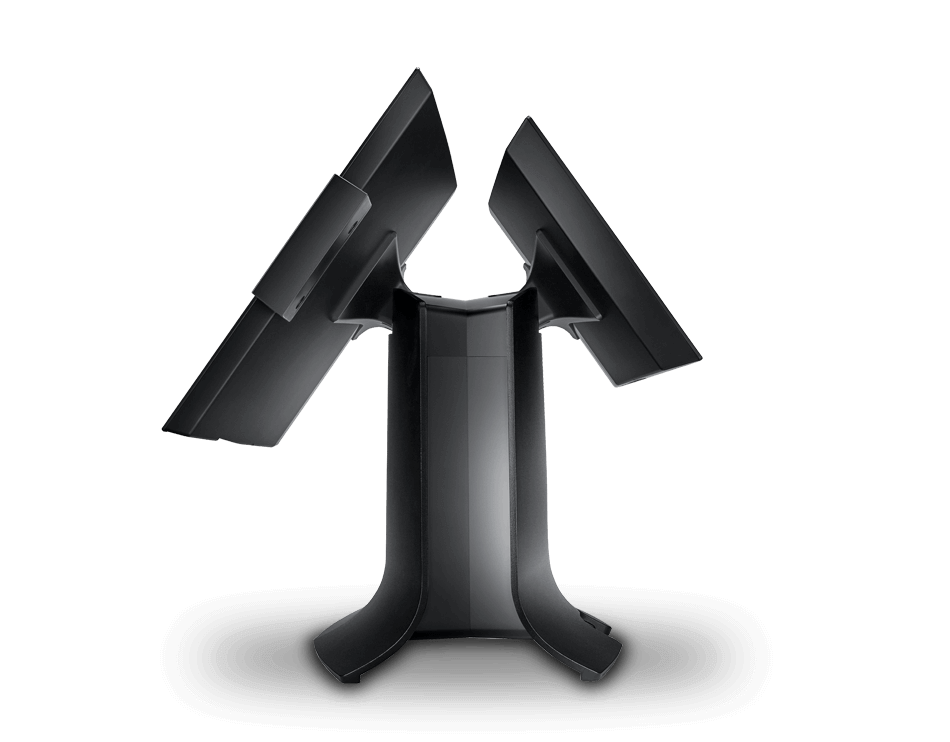

Modular Touch Screen And Peripherals

Easy installation for 10.4" / 9.7" / 15" second monitor
Customer display, MSR, i-button, finger print reader

Full aluminum base with unique fanless cooling system

Fanless Cooling Design

Assures the system's temperature to stay cool while being perfectly quiet at all time

Photo Gallery

Specifications

Main Board
Model TP-8515
CPU Intel® Bay Trail-D Platform
Celeron® Processor J1900 2.0 GHz
(2M Cache, up to 2.42 GHz)
Chipset -
System Memory 1 x DDR3L SO-DIMM Socket, up to 8GB
Graphic Intel® HD Graphics
OS Support POS Ready 7, Windows 8.1, Windows 10 IOT Entry, Linux
Display
Screen Size 15" (S/N Ratio: 4:3)
Brightness 350 nits
Resolution 1024 x 768 Pixel
Touch Screen Projective Capacitive Touch
Tilting Angle 0° ~ 90°
Storage
HDD 1 x 2.5” SATA Bay, Optional SSD
Auxiliary Storage -
Interface
Serial 4x COM (3 for standard, 1 for optional, DB9 with RI / +5VDC / +12VDC output by jumper)
Parallel 1 x DB25 Parallel Port (optional)
USB 5 x USB 2.0 (External, 4 x Bottom, 1 x Screen)
PCIe 1 x Mini PCIe (internal)
LAN 1 x RJ-45, Giga LAN Support (10 / 100 / 1000 Mbps)
VGA 1 x DB-15, Female (Max Resolution: 1920 x 1080)
DC In 1 x +12VDC
DC Out 1 x +12VDC for 2nd Display / VFD
Cash Drawer 1 x RJ-11, +12VDC / +24VDC by jumper select
Audio 1 x Line in and 1 x Mic. out
Others
Power Adaptor +12V/5A, 60W External Power Adaptor with Cable Head Lock, secured in POS Unit
(Power Adaptor: 100VAC ~ 240VAC, 50/60Hz)
Color Black / White
Compliance FCC / CE / WEEE / RoHS
Weight 6 kg
Dimension (mm) 364 (W) x 379 (H) x 236 (D) mm
Operating Temperature 0°C ~ 40°C
Operating Humidity 20% ~ 80% RH non-condensing
Storage Temperature -20°C ~ 55°C
Storage Humidity 20% ~ 85% RH non-condensing
Optional Peripherals
Customer Display VFD / LCD, 20 x 2
MSR 3 Tracks, ISO7811, USB
I-Button Dallas Key, DS1900A, USB
2nd Display 9.7" or 15" LCD Monitor
RFID ISO 14443A, Mifare
