Ideal For Printing High-quality And Long Lasting Labels
Wide range of adhesive options: paper, polyester, plastic, etc.
Provide long-lasting and colorful label printing
Large Label Roll Capacity
203 dpi and up to 6 inch/sec print speed
Support large rolls of labels, reduce the number of media changes
Easy To Set Up
Comes with our own licensed NiceLabel driver and application
User friendly and easy to create your own custom labels
Two Different Printing Methods Selectable
Choose between Thermal Transfer and Direct Thermal printing depending on your application
When ribbon is not detected, it automatically switches to Direct Thermal printing mechanism

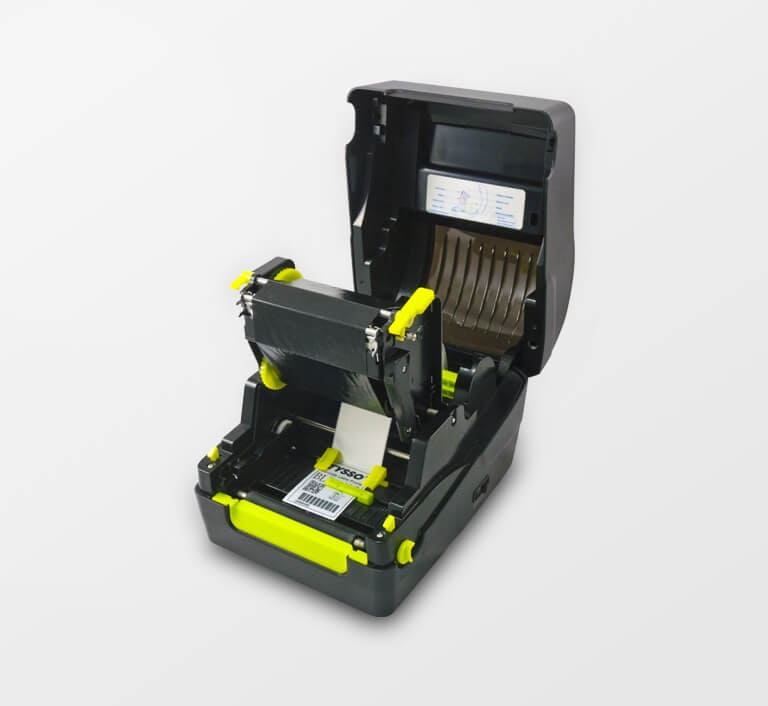

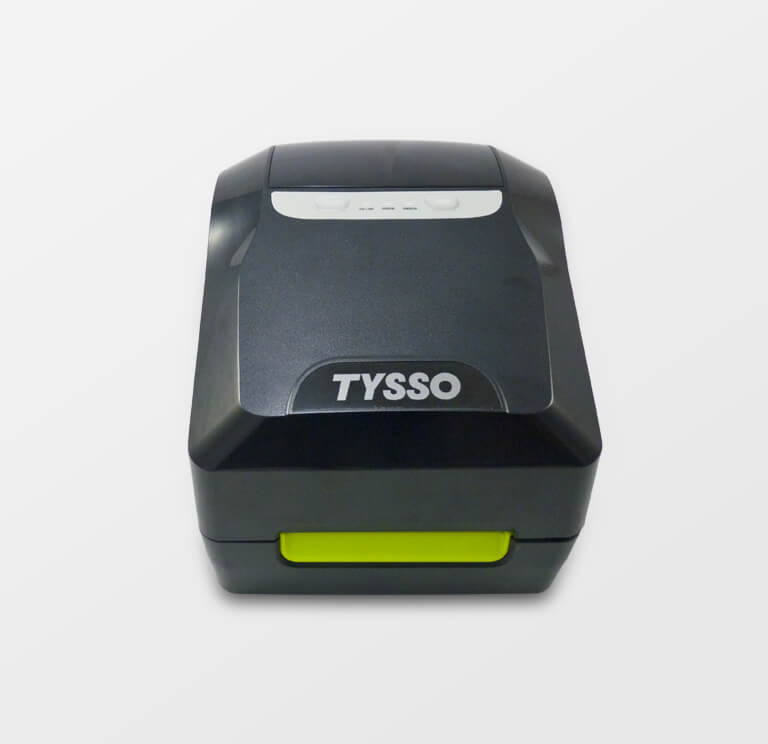

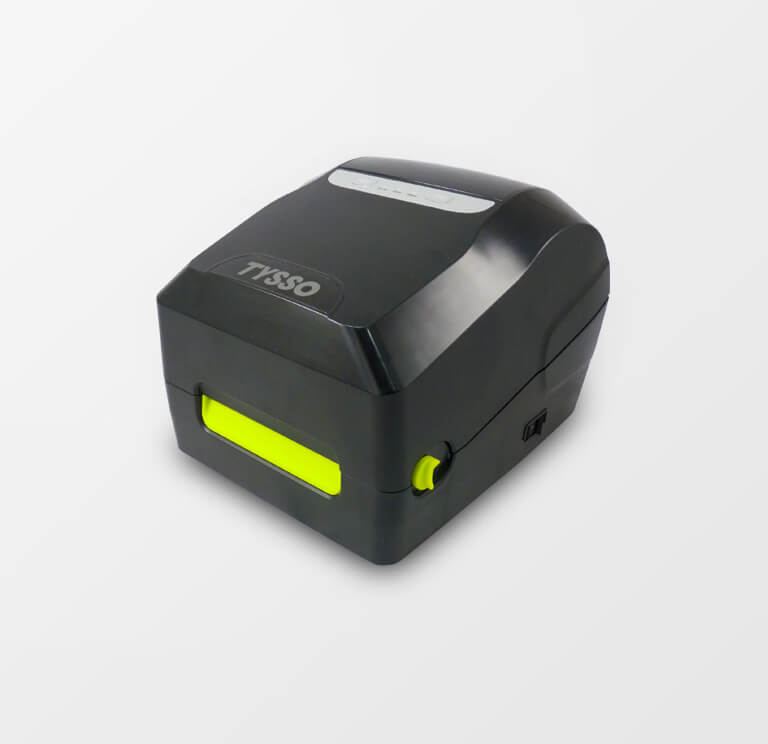

Photo Gallery
Specifications
| Model | ||
| BLP-410 | ||
| Print Capabilities | ||
| Print Method | Thermal Transfer / Direct Thermal | |
| Print Speed | 2 ~ 6 inches/sec | |
| Print Head Lifecycle | 50 Km | |
| Print Resolution | 203 dots/inch (8 dots/mm) | |
| Maximum Print Width | 108 mm (4.25 inches) | |
| Maximum Print Length | 2286 mm (90 inches) | |
| Print Font Character Support | English, Simplified Chinese, Traditional Chinese, Korean | |
| Barcode Support | 1D | EAN-8, EAN-13, EAN 128, EAN 14, EAN and UPC 2(5) digits add-on, Codabar, Code 39, Code93, Code 128 subsets A/B/C, China Postage, ITF, MSI, MSIC, PLESSEY, ITF 14, UPC-A, UPC-E |
| 2D | QR Code | |
| Image Printing Format | BMP, PCX | |
| Rotate Degree | Yes (0, 90, 180, 270 degrees selectable) | |
| Magnification | - | |
| Interface | USB 2.0, Parallel, RS-232 (DB9 Female) | |
| System Support | Win 7, Win 8, Win 10 | |
| General | ||
| Power Input | +24VDC / 2.0A (with External Adapter 100 ~ 240VAC 50/60Hz) | |
| Color | Black | |
| Material | ABS | |
| Compliance | FCC / CE / WEEE / RoHS | |
| Weight | 2.09 Kg | |
| Dimension (mm) | 222.94 (W) x 190 (H) x 284.83 (D) | |
| Operating Temperature | 5°C ~ 45°C | |
| Operating Humidity | 25% ~ 85% RH non-condensing | |
| Storage Temperature | -10°C ~ 50°C | |
| Storage Humidity | 10% ~ 90% RH non-condensing | |
| Print Ribbon | ||
| The Ribbon Width | 110 mm (max.) 30 mm (min.) |
|
| Ribbon Diameter | 67 mm (max.) | |
| Ribbon Axis Diameter | 25.4 mm (1 inch) | |
| Print Label / Print Paper | ||
| Paper Type | Continuous Paper, Gap Of Paper, Paper Folding, Punched Paper | |
| Paper Width | 120 mm (4.72 inches, max.) 20 mm (0.78 inch, min.) |
|
| Paper Roll Diameter | 127 mm (5 inches, max.) | |
| Paper Thickness (tag + bottom paper) |
0.254 mm (10 mil, max.) 0.06 mm (2.36 mil, min.) |
|
| Paper Roll Axis Diameter | 25.4 mm ~ 38 mm (1 inch ~ 1.5 inch) | |
| Label Length | 10 ~ 2286 mm (0.39 inch ~ 90 inches) | |
| Label Gape Spacing | 2 mm (0.09 inch, min.) | |
