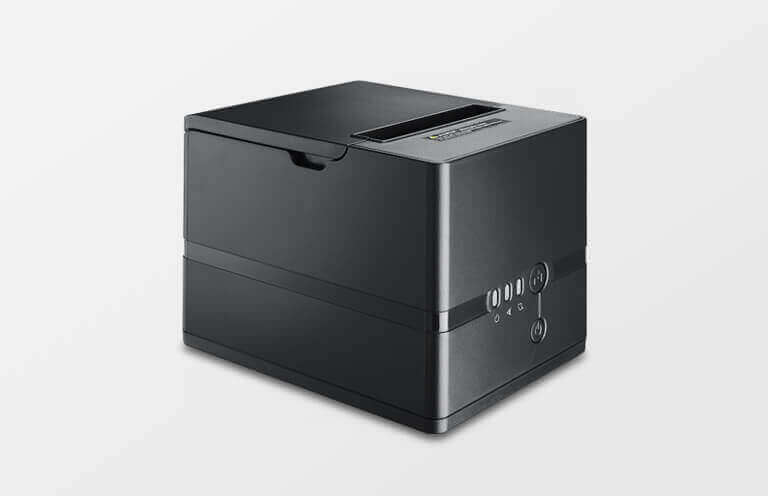

Thermal Receipt Printer  PRP-100

Thermal Receipt Printer PRP-100

Cost Effective Receipt Printer


Compact Design To Save Valuable Counter Space

Stylish cube design thermal printer created for restaurateurs and retailers where space is at a premium. Front led status indicators

Auto Cutter To Avoid Paper Jams

Long cutter lifespan, more than 1.5 million cuts guaranteed
Quiet printing mechanism

Compatibility With POS Systems And Other Peripherals

Easy Implementation of cash drawer to printer. Comes with utilities that conveniently allow you to configure your setting

Fast And Easy To Change Paper Rolls

Drop in and print mechanism
Capable of printing both 3” and 2” paper roll

Photo Gallery


Print Method Thermal line printing
Print Speed 180 mm/sec
Print Life 100 Km
Print Font (ASCII Mode) ANK Font
Font A: 12 x 24 dots
Font B: 9 x 17 dots
Print Font (Graphic Font) Chinese character: 24 x 24 dots
Print Resolution 576 dots/line or 512 dots/line
Print Font Character Support International Font, Big 5 Chinese, GB Chinese
Character Per Line 48 (Font A) / 64 (Font B)
Effective Print Width 72mm
Paper Width 79.5mm ± 0.5mm
Paper Roll Diameter ≦ 83mm
Paper Thickness 0.06 ~ 0.08mm
Driver Win 7 / Win 8 / Win 10 ,Support OPOS and ESC/POS
Print Command Compatible with ESC/POS command sets
I/O Interface Multi I/O Interface
(1 x DB-9 Serial, 1 x USB type B)
Cash Drawer +24VDC/1A, 6-Wire RJ-11
Indicator Audio and LED Indicators
Auto Cutter Partial
Paper End Notice Yes
Over-Heat Halt-on Protection Yes
Power Input 24VDC/2.5A (with External Adapter 100 ~ 240VAC 50/60Hz)
Color Black
Compliance FCC / CE / WEEE / RoHS
Weight 1012 g
Dimension (L x W x H: mm) 140 x 202 x 149
Operating Temperature 0°C ~ 45°C
Operating Humidity 10% ~ 80% RH non-condensing
Storage Temperature -10°C ~ 60°C
Storage Humidity 10% ~ 90% RH non-condensing
