Supermarket Kiosk (OEM/ODM)
KS-5X21(Series)
with Large Scanner & Convenience Shelves
Inquiry E-Brochure![](/upload/images/products_04_bg_3.png)
Self-service Kiosk Designed for Supermarket & Grocery
21.5-inch PCAP touch screen (optional 27-inch panel) with convenience shelves and large 2D scanner, providing guests with improved checkout efficiency, more convenient and speedier shopping experiences with their preferred payment method.
![](/upload/images/kx-521-1.png)

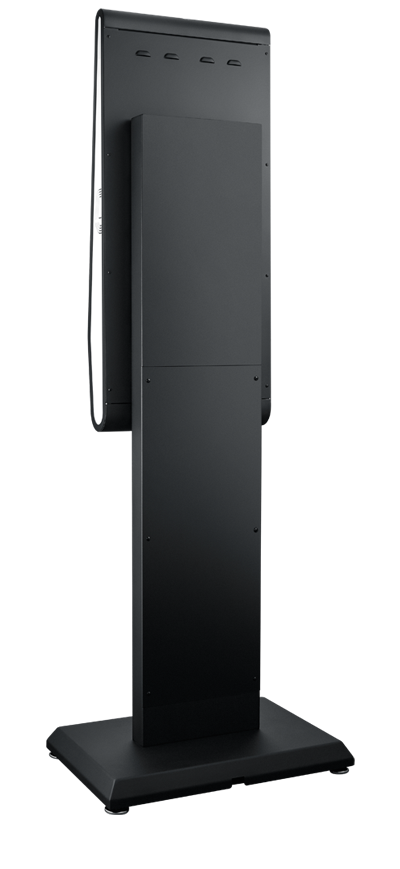

Spruce up Your Business Space with Colorful Choices
Streamlined design, colors selectable, suitable for different decorating styles. Interchangeable plexiglass faceplate, customize designs and graphics.
![](/upload/images/kx-521-01.png)
![](/upload/images/kx-521-06.png)
![](/upload/images/kx-521-02.png)
![](/upload/images/kx-521-03.png)
![](/upload/images/kx-521-04.png)
![](/upload/images/kx-521-05.png)
Customized Convenience Shelves with Large QR Code Scanner
Ideal for supermarkets and retailers, offering a fast and modern cashless self-service checkout which provide customers with more control, convenience, and better shopping experience.
![](/upload/images/kx-521-2.png)
Payment Device Integration Based On Customer Needs
Providing convenience to customers, enabling them to choose how they want to pay.
Pay by cards using a PIN, EMV chip, magstripe, or by contactless payments via NFC.
![](/upload/images/kx-521-3.png)
Photo Gallery
Specifications
KS-5X21(Series) | ||||
Model | KS-5121 | KS-5521 | KS-5821 | |
Core Logic | Processor | ARM Rockchip RK3288 Quad-core Cortex-A17 up to 1.8GHz |
Intel® Bay Trail-D Celeron® J1900 Quad Core (2M Cache, up to 2.42 GHz) |
Intel® Core™ i3 7100U (3M Cache, 2.40 GHz) Intel® Core™ i5 7200U (3M Cache, up to 3.1 GHz) |
Memory | 2GB DDR3L 1333 | up to 8G DDR3L SO-DIMM | up to 32G DDR4 SO-DIMM | |
Storage | 16GB eMMC + 1 x microSD Card (up to 128GB) | 1 x M.2 M Key Slot | 1 x M.2 M Key Slot | |
LCD Panel | Panel Size | 21.5-inch VA LED Panel | 21.5-inch VA LED Panel | 21.5-inch VA LED Panel |
Resolution | 1080 (V) x 1920 (H) | 1080 (V) x 1920 (H) | 1080 (V) x 1920 (H) | |
Brightness | 250nits | 250nits | 250nits | |
View Angle | 89° / 89° / 89° / 89° | 89° / 89° / 89° / 89° | 89° / 89° / 89° / 89° | |
Touch Panel | Bezel Free | True-Flat PCAP Touch (G+G) | True-Flat PCAP Touch (G+G) | True-Flat PCAP Touch (G+G) |
RF Communication | Wi-Fi / 4G LTE | Wi-Fi IEEE 802.11 b/g/n | Option | Option |
Speaker | Internal Speaker | 2 x 5W Speakers | 2 x 5W Speakers | 2 x 5W Speakers |
I/O Interface | ||||
External I/O | USB | 2 x USB 2.0 type A | 2 x USB 2.0 type A | 2 x USB 2.0 type A |
LAN | 1 x RJ45 Ethernet (Host) 1 x RJ45 Ethernet (option : EMV Payment) |
1 x RJ45 Ethernet (Host) 1 x RJ45 Ethernet (option : EMV Payment) |
1 x RJ45 Ethernet (Host) 1 x RJ45 Ethernet (option : EMV Payment) |
|
Power Cord Socket | 1 x AC Male Power Socket | 1 x AC Male Power Socket | 1 x AC Male Power Socket | |
Power Switch | 1 x Power Switch Button | 1 x Power Switch Button | 1 x Power Switch Button | |
Mechanical & Environmental | ||||
Surface Color Plan | Standard or Customizable by project | Standard or Customizable by project | Standard or Customizable by project | |
Brand Logo | Customizable by project | Customizable by project | Customizable by project | |
Dimension (W x H x D in mm) | Main System Only : 350.2 x 824.4 x 116 mm Floorstanding ( Stand 02) : 600 x 1650 x 400 mm |
Main System Only : 350.2 x 824.4 x 116 mm Floorstanding ( Stand 02) : 600 x 1650 x 400 mm |
Main System Only : 350.2 x 824.4 x 116 mm Floorstanding ( Stand 02) : 600 x 1650 x 400 mm |
|
Weight(N. W. in KG) | Main System Only : 20KG Floorstanding Version (w/ Satnd 02) : 47KG |
Main System Only : 20KG Floorstanding Version (w/ Satnd 02) : 47KG |
Main System Only : 20KG Floorstanding Version (w/ Satnd 02) : 47KG |
|
Operation System | OS | Android 7.1 | Win 10 IoT Ent | Win 10.1 IoT Ent |
Environment | Operation Condition | 0°C to +35°C / 20 to 80% without condensation | 0°C to +35°C / 20 to 80% without condensation | 0°C to +35°C / 20 to 80% without condensation |
Storage Condition | -5°C to +55°C / 20 to 85% without condensation | -5°C to +55°C / 20 to 85% without condensation | -5°C to +55°C / 20 to 85% without condensation | |
Optional Accessories | ||||
Visual Recognition | 5M-Pixel AF Full HD Camera | 5M-Pixel AF Full HD Camera | 5M-Pixel AF Full HD Camera | |
Thermal Printer | 2" or 3" standalone thermal printer with cutter 203 dpi and Max. 200 mm/s supported |
2" or 3" standalone thermal printer with cutter 203 dpi and Max. 200 mm/s supported |
2" or 3" standalone thermal printer with cutter 203 dpi and Max. 200 mm/s supported |
|
Mini QR Code Scanner | Fixed mount barcode scanner, 800 x 800 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen |
Fixed mount barcode scanner, 800 x 800 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen |
Fixed mount barcode scanner, 800 x 800 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen |
|
Large QR Code Scanner | Fixed mount barcode scanner, 1280 x 1088 CMOS, Red LED Scan mode : Advanced Sense mode Optimized to read barcode from a mobile phone screen |
Fixed mount barcode scanner, 1280 x 1088 CMOS, Red LED Scan mode : Advanced Sense mode Optimized to read barcode from a mobile phone screen |
Fixed mount barcode scanner, 1280 x 1088 CMOS, Red LED Scan mode : Advanced Sense mode Optimized to read barcode from a mobile phone screen |
|
MSR/IC Card Combo Reader | Based on customer requirements | Based on customer requirements | Based on customer requirements | |
NFC/RFID Reader | Based on customer requirements | Based on customer requirements | Based on customer requirements | |
EMV Payment Device Bracket | Based on customer requirements | Based on customer requirements | Based on customer requirements | |
More Optional | Wi-Fi IEEE 802.11 b/g/n Stand 01 (w/o Indoor Wheels) Stand 02 (w/ Indoor Wheels) Stand 03 (w/ Base Plate) Wall Mount Bracket Kit Multiple Holder (Supermarket Version) |
Wi-Fi IEEE 802.11 a/b/g/n/ac (Mini-PCIe) or 4G LTE Module (Mini-PCIe) Stand 01 (w/o Indoor Wheels) Stand 02 (w/ Indoor Wheels) Stand 03 (w/ Base Plate) Wall Mount Bracket Kit Multiple Holder (Supermarket Version) |
Wi-Fi IEEE 802.11 a/b/g/n/ac (M.2 E Key) 4G LTE Module (Mini-PCIe) Stand 01 (w/o Indoor Wheels) Stand 02 (w/ Indoor Wheels) Stand 03 (w/ Base Plate) Wall Mount Bracket Kit Multiple Holder (Supermarket Version) |
