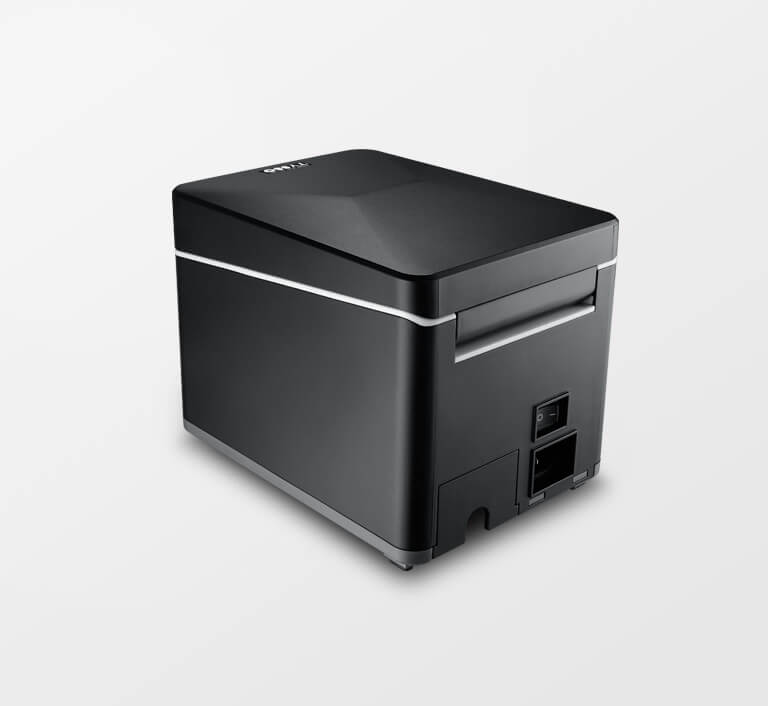

POS System PRP-350

POS System PRP-350

Front-exiting Receipt / Kitchen Printer

Inquiry E-Brochure

Suitable for Kitchen Printing Application

Oil, water spill, dust proof design
Built to withstand heat and humidity

Flat Top Design

Splash-proof enclosure to ensure its use in harsh environments
Easy paper loading for streamlining kitchen operations

Audio Alert Notification

Audio notification feature, able to adjust the volume on the buzzer
High speed printing throughout

Internal Power Supply

Embedded power adaptor, hidden under base
Can be placed at different work stations, free up valuable work space

Photo Gallery


Print Method Thermal line printing
Print Speed 250 mm/sec
Paper Feed Speed -
Print Life 150 Km
Print Font (ASCII Mode) ANK Font
Font A: 12 x 24 dots
Font B: 9 x 17 dots
Print Font (Graphic Font) Chinese character: 24 x 24 dots
Print Resolution 576 dots/line or 512 dots/line
Print Font Character Support * International Font, Big 5 Chinese, GB Chinese, Japanese, Korean selectable
Character Per Line 48 (Font A) / 42 (Font B)
Effective Print Width 72mm
Paper Width 79.5mm ± 0.5mm
Paper Roll Diameter ≦ 88mm
Paper Thickness 0.06 ~ 0.08mm
Driver Win 2000 / Win 2003 / Win XP / Win Vista / Win 7, Win 8, Support OPOS and ESC/POS
Print Command Compatible with ESC / POS command sets
Print direction -
Auto Cutter Partial
Paper End Detection Yes
Over-Heat Halt-on Protection Yes
Receipt Buffer 128K bytes
User-Defined Buffer 128K bytes
NV Flash Buffer 256K bytes
Serial 1 x DB-9 Serial Port
Parallel -
Ethernet 1 x RJ-45
Cash Drawer -
Power Input +24VDC/2.5A (with External Adapter 100 ~ 240VAC 50/60Hz), hidden in the body
Color Black
Compliance FCC / CE / WEEE / RoHS
Weight 1620 g (with power adapter)
Dimension (L x W x H: mm) 190.5 x 140 x 145.0
Operating Temperature 5°C ~ 45°C
Operating Humidity 10% ~ 80% RH non-condensing
Storage Temperature -10°C ~ 50°C
Storage Humidity 10% ~ 90% RH non-condensing
