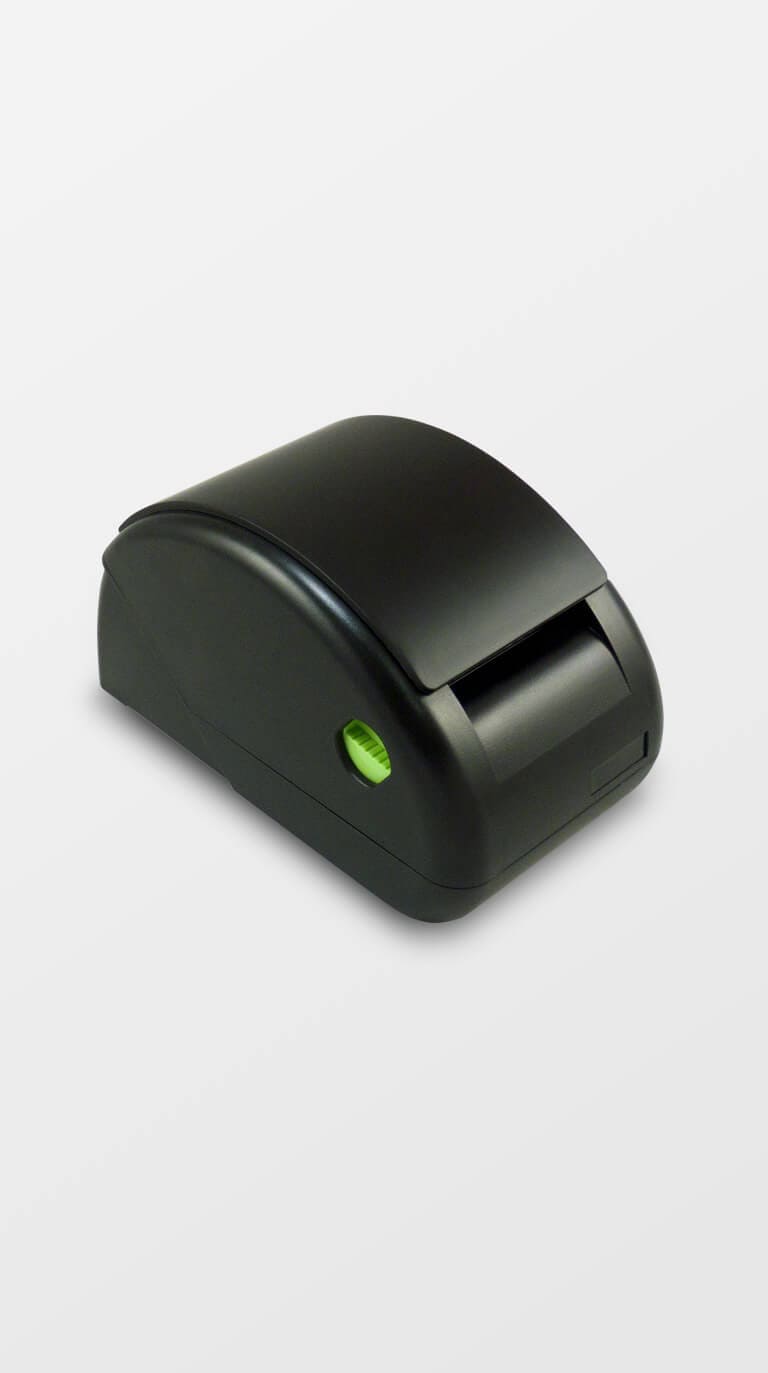

Receipt Printer PRP-058K

Receipt Printer PRP-058K

Compact Thermal Receipt Printer

Inquiry E-Brochure

Compact Design To Save Counter Space

Fast print speed, quiet functioning
58 mm, Cost-effective for various printing applications

Various Interface Support

Serial, USB 1.1 , Ethernet, RJ-11
Multiple language fonts selectable

Automatic Paper cutter

Adds convenience and eliminates the risk of paper jams
Prevents generating receipts with ugly jagged edges

QR Code Printing

Integrate your own QR codes on the receipt
Effective way to communicate with and market to your customers

Photo Gallery


Print Method Thermal line printing
Print Speed 90 mm/sec
Print Life 150Km
Print Font (ASCII Mode) ANK Character: Font A: 12 x 24dots Font B: 9 x 17dots
Print Font (Graphic Font) Simplified / Traditional: 24 x 24dots
Print Resolution 384 dots/line
Print Font Character Support * International Font, Big 5 Chinese, GB Chinese, Korean selectable
Character Per Line 32 (Font A) / 42 (Font B) / 16 (Graphic)
Barcode Support UPC-A, UPC-E, JAN-13 / EAN-13, JAN-8 / EAN-8, CODABAR, CODE 39, CODE 93, CODE 128
Effective Print Width 48mm
Paper Width 57.5mm ± 0.5mm
Paper Roll Diameter 65mm
Paper Thickness 0.06 ~ 0.08mm
Driver Win 9X / Win ME / Win 2000 / Win2003 / Win NT / Win XP / Win Vista, compatible with EPSON and SAMSUNG.
Print Command ESC / POS print command sets compatible
Auto Cutter Partial
Paper End Detection Yes
Over-Heat Halt-on Protection Yes (60°C)
Serial 9-pin female connector, 9600 bps ~ 38400 bps baud-rate
Cash Drawer +12VDC/1A, 6-Wire RJ-11 Socket
Power Input +12VDC/3A (with External Adapter 110V/220V, 3A, 50/60Hz)
Color Black
Compliance FCC / CE
Weight 778.6 g
Dimension 112 (W) x 105 (H) x 185 (D)
Operating Temperature 5°C ~ 45°C
Operating Humidity 10% ~ 80% RH non-condensing
Storage Temperature -10°C ~ 50°C
Storage Humidity 10% ~ 90% RH non-condensing
