Countertop & Multipurpose Self-Ordering Kiosk (OEM/ODM)
KS-MX(Series)
15.6-inch and 21.5-inch Self-Ordering Kiosk with Modular Design
Inquiry E-Brochure
Countertop Self-Ordering Kiosks Designed for Smaller Businesses
Offer all the components found in a traditional self-ordering kiosk: welcoming guests, checking in visitors, managing queues, and promoting your brand and message, even though they are smaller compared to their traditional counterparts. The small footprint makes them great options for offices or retail where space is limited.

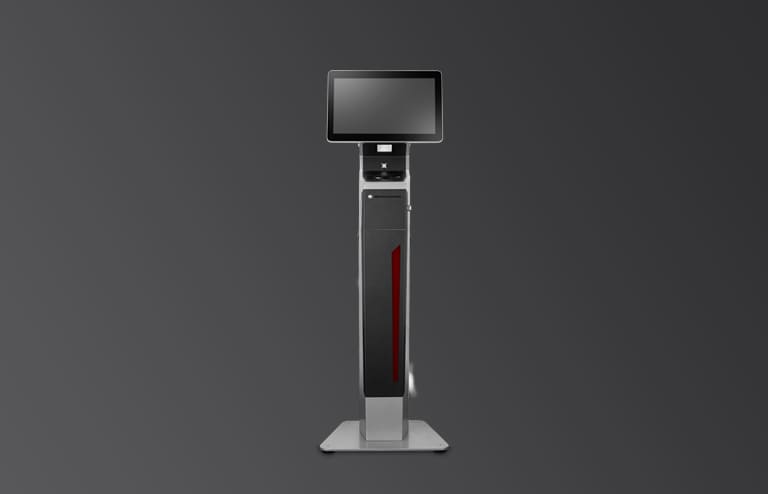

Multipurpose Kiosks that Support Displays in either Landscape or Portrait Orientation
With 15.6-inch(KS-MX16) and 21.5-inch(KS-MX21) PCAP touch panels, the new modular Kiosks offer flexibility to add future upgrades and integration with a wide variety of peripherals and devices. Provide both portrait and landscape orientation screen options.

Device Integration Based on Customer Needs
Making your business more convenient for customers,
enable them to choose how they want to pay.
Pay by card using a PIN, EMV chip, magstripe,
or by contactless payments via NFC.

Facilitate Easy Implementation and Installation
Businesses can choose components based on their industry-specific needs:
optional 2nd display, fingerprint sensor, customized logo/advertising plate/EMV payment device bracket, LED light bar and more.

Photo Gallery
Specifications
Model Name | KS-M116 - Self-Ordering Kiosk | |
Core Logic | Processor | ARM Rockchip RK3288 Quad-core Cortex-A17 up to 1.8GHz |
Memory | 2GB DDR3L 1333 | |
Storage | 16GB eMMC + 1 x microSD Card (up to 128GB) | |
LCD Panel | Panel Size | 15.6-inch IPS LED Panel |
Resolution | 1080 (V) x 1920 (H) | |
Brightness | 400nits | |
View Angle | 85° / 85° / 85° / 85 ° | |
Touch Panel | Bezel Free | True-Flat PCAP Touch (G+G) |
RF Communication | Wi-Fi / 4G LTE | Wi-Fi IEEE 802.11 b/g/n |
Speaker | Internal Speaker | 2 x 5W Speakers |
I/O Interface | ||
External I/O | USB | 2 x USB 2.0 type A |
LAN | 1 x RJ45 Ethernet (Host) 1 x RJ45 Ethernet (option : EMV Payment) |
|
Power Cord Socket | 1 x AC Male Power Socket | |
Power Switch | 1 x Power Switch Button | |
Mechanical & Environmental | ||
Surface Color Plan | Standard or Customizable by project | |
Brand Logo | Customizable by project | |
Dimension (W x H x D in mm) | Countertop Version (Portrait) : 175 x 695 x 219 mm Floorstanding Version (Portrait) : 433 x 1417 x 300 mm Countertop Version (Landscape) : 389 x 562 x 219 mm Floorstanding Version (Landscape) : 433 x 1284 x 300 mm |
|
Weight (N. W. in KG) | Countertop Version : 28KG Floorstanding Version : 36KG |
|
Operation System | OS | Android 7.1 |
Environment | Operation Condition | 0°C to +35°C / 20 to 80% without condensation |
Storage Condition | -5°C to +55°C / 20 to 85% without condensation | |
Optional Accessories | ||
Visual Recognition | N/A | |
Thermal Printer | 2" or 3" standalone thermal printer with cutter 203 dpi and Max. 200 mm/s supported |
|
Mini QR Code Scanner | Fixed mount barcode scanner, 800 x 800 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen |
|
Large QR Code Scanner | N/A | |
MSR/IC Card Combo Reader | Based on customer requirements | |
NFC/RFID Reader | Based on customer requirements | |
EMV Payment Device Bracket | Based on customer requirements | |
More Optional | Advertising board (Customizable by project) LED Light Bar Fingerprint Sensor |
Model Name | KS-M516 | |
Core Logic | Processor | Intel® Bay Trail-D Celeron® J1900 Quad Core (2M Cache, up to 2.42 GHz) |
Memory | up to 8G DDR3L SO-DIMM | |
Storage | 1 x M.2 M Key Slot | |
LCD Panel | Panel Size | 15.6-inch IPS LED Panel |
Resolution | 1080 (V) x 1920 (H) | |
Brightness | 400nits | |
View Angle | 85° / 85° / 85° / 85° | |
Touch Panel | Bezel Free | True-Flat PCAP Touch (G+G) |
RF Communication | Wi-Fi / 4G LTE | Option |
Speaker | Internal Speaker | 2 x 5W Speakers |
I/O Interface | ||
External I/O | USB | 2 x USB 2.0 type A |
LAN | 1 x RJ45 Ethernet (Host) 1 x RJ45 Ethernet (option : EMV Payment) |
|
Power Cord Socket | 1 x AC Male Power Socket | |
Power Switch | 1 x Power Switch Button | |
Mechanical & Environmental | ||
Surface Color Plan | Standard or Customizable by project | |
Brand Logo | Customizable by project | |
Dimension (W x H x D in mm) | Countertop Version (Portrait) : 175 x 695 x 219 mm Floorstanding Version (Portrait) : 433 x 1417 x 300 mm Countertop Version (Landscape) : 389 x 562 x 219 mm Floorstanding Version (Landscape) : 433 x 1284 x 300 mm |
|
Weight (N. W. in KG) | Countertop Version : 28KG Floorstanding Version : 36KG |
|
Operation System | OS | POSReady 7/WE 8.1 Industry/Win 10 IoT Ent |
Environment | Operation Condition | 0°C to +35°C / 20 to 80% without condensation |
Storage Condition | -5°C to +55°C / 20 to 85% without condensation | |
Optional Accessories | ||
Visual Recognition | N/A | |
Thermal Printer | 2" or 3" standalone thermal printer with cutter 203 dpi and Max. 200 mm/s supported |
|
Mini QR Code Scanner | Fixed mount barcode scanner, 800 x 800 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen |
|
Large QR Code Scanner | N/A | |
MSR/IC Card Combo Reader | Based on customer requirements | |
NFC/RFID Reader | Based on customer requirements | |
EMV Payment Device Bracket | Based on customer requirements | |
More Optional | Advertising board (Customizable by project) LED Light Bar Fingerprint Sensor |
Model Name | KS-M816 | |
Core Logic | Processor | Intel® Core™ i3 7100U (3M Cache, 2.40 GHz) Intel® Core™ i5 7200U (3M Cache, up to 3.1 GHz) |
Memory | up to 32G DDR4 SO-DIMM | |
Storage | 1 x M.2 M Key Slot | |
LCD Panel | Panel Size | 15.6-inch IPS LED Panel |
Resolution | 1080 (V) x 1920 (H) | |
Brightness | 400nits | |
View Angle | 85° / 85° / 85° / 85 ° | |
Touch Panel | Bezel Free | True-Flat PCAP Touch (G+G) |
RF Communication | Wi-Fi / 4G LTE | Option |
Speaker | Internal Speaker | 2 x 5W Speakers |
I/O Interface | ||
External I/O | USB | 2 x USB 2.0 type A |
LAN | 1 x RJ45 Ethernet (Host) 1 x RJ45 Ethernet (option : EMV Payment) |
|
Power Cord Socket | 1 x AC Male Power Socket | |
Power Switch | 1 x Power Switch Button | |
Mechanical & Environmental | ||
Surface Color Plan | Standard or Customizable by project | |
Brand Logo | Customizable by project | |
Dimension (W x H x D in mm) | Countertop Version (Portrait) : 175 x 695 x 219 mm Floorstanding Version (Portrait) : 433 x 1417 x 300 mm Countertop Version (Landscape) : 389 x 562 x 219 mm Floorstanding Version (Landscape) : 433 x 1284 x 300 mm |
|
Weight (N. W. in KG) | Countertop Version : 28KG Floorstanding Version : 36KG |
|
Operation System | OS | Windows 10.1 IoT Ent |
Environment | Operation Condition | 0°C to +35°C / 20 to 80% without condensation |
Storage Condition | -5°C to +55°C / 20 to 85% without condensation | |
Optional Accessories | ||
Visual Recognition | N/A | |
Thermal Printer | 2" or 3" standalone thermal printer with cutter 203 dpi and Max. 200 mm/s supported |
|
Mini QR Code Scanner | Fixed mount barcode scanner, 800 x 800 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen |
|
Large QR Code Scanner | N/A | |
MSR/IC Card Combo Reader | Based on customer requirements | |
NFC/RFID Reader | Based on customer requirements | |
EMV Payment Device Bracket | Based on customer requirements | |
More Optional | Advertising board (Customizable by project) LED Light Bar Fingerprint Sensor |
