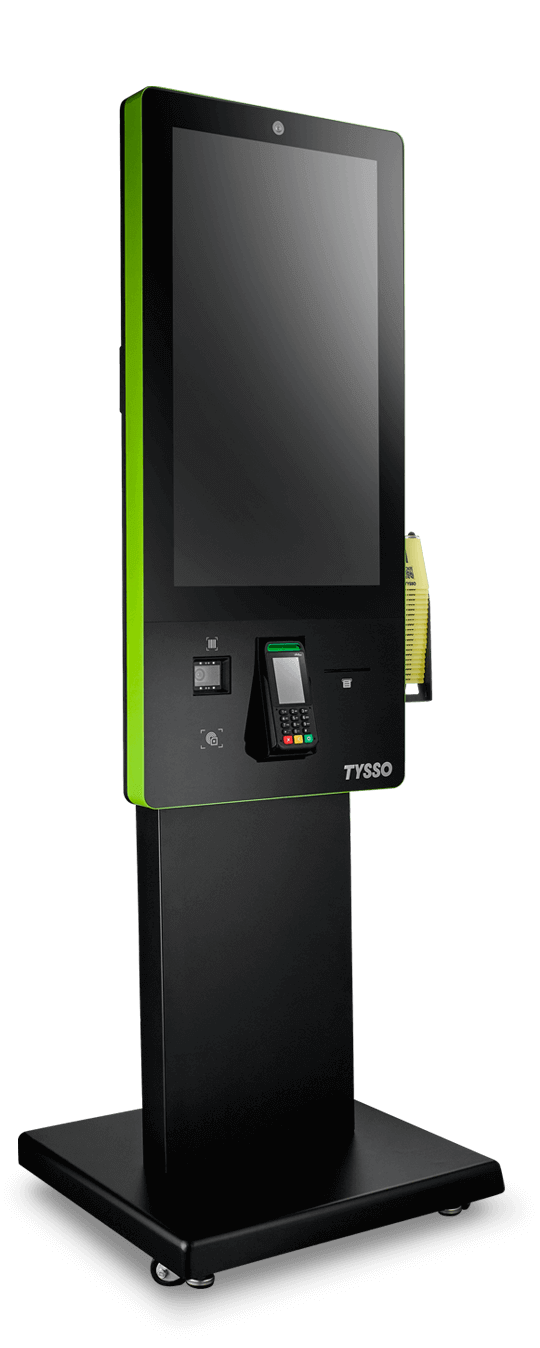

32-inch Touch Kiosk (OEM/ODM)

32-inch Touch Kiosk (OEM/ODM)

KS-1X32(Series)

Wall Mountable Digital Touch Kiosk

Inquiry E-Brochure

Unique Cabling System

Enhance the Growth and Efficiency of Your Business

Cables and power adapter hidden in the stand rear cover

Multi-Functional

Durable, Able to Stand Up to Constant Use

Can serve as a complete digital replacement of the menu and order system, or as an out-of-home advertising platform to reach consumers.

The Durable Touch Kiosk

Custom Modifications to The
Color, Shape and Finish

Streamlined design, colors selectable, suitable for different decorating styles. Interchangeable plexiglass faceplate, customize designs and graphics.

The Black One

Sapphire
Black

The White One

Alpine
White

The Green One

Verdant
Green

The Blue One

Arctic
Blue

The Orange One

Valencia
Orange

The Red One

Crimson
Red

Integration with Wide Variety of Peripherals and Devices

2D barcode scanner (optional large QR code scanner) , camera, RFID, IC card reader, MSR, and thermal printer.

The Touch Kiosk with 2D Barcode Scanner

Easy to Service and Maintain

  • Modular and neat interior design, provide flexibility to add future components and upgrades
  • Build the type of kiosk that suits your business needs
  • Integrate peripherals into the enclosure for aesthetics and security
The Touch Kiosk with Neat Interior Design

High Speed 2 inch / 3 inch Thermal Printer

Secured and enclosed within the kiosk. Capable of printing QR codes.

The Touch Kiosk with Thermal Printer

KS Series Customized

Architecture

Operating
System

Processor

Panel Size

Integrated
Devices

Connection

Self-Take
Meal Pager

Thermal Printer

Face
Camera

Base
(Floor Stand)

Wall Mount
Bracket

Customized
Logo

Table Number
Plate

Photo Gallery

Specifications

KS-1X32(Series)
Model KS-1132 KS-1532 KS-1832
Mainboard
Processor ARM Rockchip RK3288
Quad-core Cortex-A17 up to 1.8GHz
Intel® Bay Trail-D Celeron® J1900
Quad Core (2M Cache, up to 2.42 GHz)
Intel® Core™ i3 7100U (3M Cache, 2.40 GHz)
Intel® Core™ i5 7200U (3M Cache, up to 3.1 GHz)
Memory 2GB DDR3 1333 up to 8G DDR3L up to 32G DDR4 SO-DIMM
Storage 16GB eMMC (up to 32G) + 1 x Micro SD (up to 128GB) 1 x  M.2 SATA Slot 1 x  M.2 SATA Slot
LCD Panel
Panel Size 32-inch IPS LED Panel
Resolution 1080 (V) x 1920 (H)
Brightness 400nits
View Angle 89° / 89° / 89° / 89°
Touch Panel
Bezel Free True-Flat PCAP Touch (G+G)
Audio
Internal Speaker 2 x 5W Speakers
External I/O Interface
USB 2 x USB 2.0 type A
LAN 2 x Gigabit Ethernet
Power Cord Socket 1 x AC Male Power Socket
Power Button 1 x Power Switch Button
Physical Characteristics
Mounting Style Floor Standing or Wall Mounting
Housing Color Plan Standard or Customizable by project
Brand Logo Standard or Customizable by project
Dimension Main System : 509 (W) x 1100 (H) x 144 (D) mm
With Stand : 609 (W) x 1750 (H) x 576 (D) mm
Weight 47KG (Main System only) and 46KG (with Stand)
Operation System
OS Android 7.1 Win 10 IoT Ent Windows 10.1 IoT Ent
Environment
Operation Condition 0°C to +35°C / 20 to 80% without condensation
Storage Condition -5°C to +55°C / 20 to 85% without condensation
Optional Accessories
Thermal Printer 2" or 3" standalone thermal printer with cutter
203 dpi and 200 mm/s supported
QR Code Scanner Fixed mount barcode scanner, 752 x 480 CMOS
Optimized to read barcode from a mobile phone screen
Face Camera 2M-Pixel Full HD Camera
MSR/IC Card Reader Based on customer requirements
Payment Mount Bracket Based on customer requirements
More Optional Wi-Fi IEEE 802.11 b/g/n
Indoor wheels (under floor stand)
Wi-Fi IEEE 802.11 a/b/g/n/ac (Mini-PCIe type) or
3G/4G Module (Mini-PCIe type)
Indoor wheels (under floor stand)
Wi-Fi IEEE 802.11 a/b/g/n/ac (M.2 type)
3G/4G Module (Mini-PCIe type)
Indoor wheels (under floor stand)
