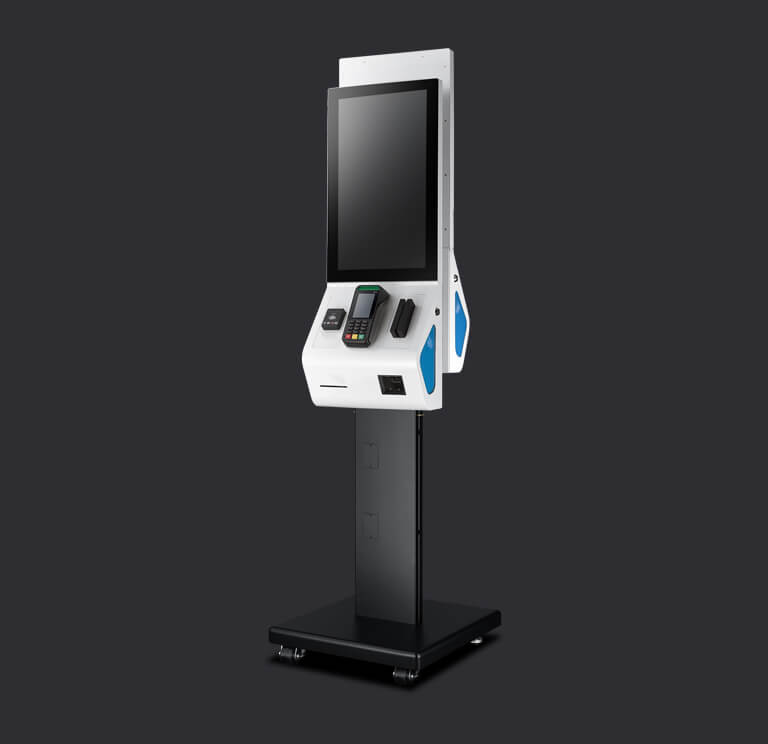

21.5-inch Kiosk (OEM/ODM)
KS-3X21(Series)
Double-sided dual panel kiosk with flexible customization
Inquiry E-Brochure
Streamlined Design, Smooth, Colorful, Suitable For Retail Business
Design on demand for self-service in retail and chain store, hotel, airport, public space, and entertainment center.
Allows guests to order food, customize orders, check in and pay for everything without needing to interact with an employee.

Dual Touch Panel To Ensure Better Customer Experience
Can be modified in regards to color, shape and height to suit your requirements. Improve speed and order accuracy, boosting the growth and productivity of your business.




Payment Device Integration Based On Customer Needs
Adding convenience for customers, enable them to choose how they want to pay. Pay by card using a pin, EMV chip, magstripe, or by contactless payments via NFC.

Easy To Use And Maintain With Smart Cable Management System
Features a clean cable management system, keeps wires neat and organized, preventing unwanted cable removal while performing maintenance or upgrades.

Customize The Look, Design, And
The Embedded Peripherals Of Your
Kiosk In A Way That Best Fits Your
Needs As A Business
Selectable accessories, colors, finish and logo so
that it’s unique to your brand experience.
Integration with wide variety of peripherals and devices such as 2D barcode
scanner, camera, EDC Payment Device, IC card reader, MSR, thermal printer, etc.

Sapphire Black

Alpine White

Verdant Green

Arctic Blue

Valencia Orange

Valencia Red
KS Series Customized

Architecture

Operating
System

Processor

Panel Size

Integrated
Devices

Connection

Self-Take
Meal Pager

Thermal Printer

Face
Camera

Base
(Floor Stand)

Wall Mount
Bracket

Customized
Logo

Table Number
Plate
Photo Gallery
Specifications
KS-3X21(Series) | |||
Model | KS-3121 | KS-3521 | KS-3821 |
Mainboard | |||
Processor | ARM Rockchip RK3288 Quad-core Cortex-A17 up to 1.8GHz |
Intel® Bay Trail-D Celeron® J1900 Quad Core (2M Cache, up to 2.42 GHz) |
Intel® Core™ i3 7100U (3M Cache, 2.40 GHz) Intel® Core™ i5 7200U (3M Cache, up to 3.1 GHz) |
Memory | 2GB DDR3 1333 | up to 8G DDR3L | up to 32G DDR4 SO-DIMM |
Storage | 16GB eMMC (up to 32G) + 1 x Micro SD (up to 128GB) | 1 x M.2 SATA Slot | 1 x M.2 SATA Slot |
LCD Panel | |||
Panel Size | 21.5-inch VA LED Panel | ||
Resolution | 1080 (V) x 1920 (H) | ||
Brightness | 250nits | ||
View Angle | 89° / 89° / 89° / 89 ° | ||
Touch Panel | |||
Bezel Free | True-Flat PCAP Touch (G+G) | ||
Audio | |||
Internal Speaker | 2 x 5W Speakers | ||
External I/O Interface | |||
USB | 2 x USB 2.0 type A | ||
LAN | 2 x Gigabit Ethernet | ||
Power Cord Socket | 1 x AC Male Power Socket | ||
Power Button | 1 x Power Switch Button | ||
Physical Characteristics | |||
Mounting Style | Floor Standing or Wall Mounting | ||
Housing Color Plan | Standard or Customizable by project | ||
Brand Logo | Standard or Customizable by project | ||
Dimension | Main System : 345 (W) x 897 (H) x 170 (D )mm With Stand : 500 (W) x 1700 (H) x 480 (D )mm |
||
Weight | 13KG (Main System Only) and 25KG (with Stand) | ||
Operation System | |||
OS | Android 7.1 | Win 10 IoT Ent | Windows 10.1 IoT Ent |
Environment | |||
Operation Condition | 0°C to +35°C / 20 to 80% without condensation | ||
Storage Condition | -5°C to +55°C / 20 to 85% without condensation | ||
Optional Accessories | |||
Thermal Printer | 2" or 3" standalone thermal printer with cutter 203 dpi and 200 mm/s supported |
||
QR Code Scanner | Fixed mount barcode scanner, 752 x 480 CMOS Optimized to read barcode from a mobile phone screen |
||
Face Camera | 2M-Pixel Full HD Camera | ||
MSR/IC Card Reader | Based on customer requirements | ||
Payment Mount Bracket | Based on customer requirements | ||
More Optional | Wi-Fi IEEE 802.11 b/g/n Indoor wheels (under floor stand) |
Wi-Fi IEEE 802.11 a/b/g/n/ac (Mini-PCIe type) or 3G/4G Module (Mini-PCIe type) Indoor wheels (under floor stand) |
Wi-Fi IEEE 802.11 a/b/g/n/ac (M.2 type) 3G/4G Module (Mini-PCIe type) Indoor wheels (under floor stand) |
