Enhancing Digital Experience for Hotel Guests
Equipped with Intel Celeron/Core-I CPU, ID verification and payment devices, Hotel Kiosk KS-HAX21(Series) is designed to speed up check-in/out process and also deliver a contactless and private guest experience.
Ergonomic Design with Flexible Installation & Easy Implementation

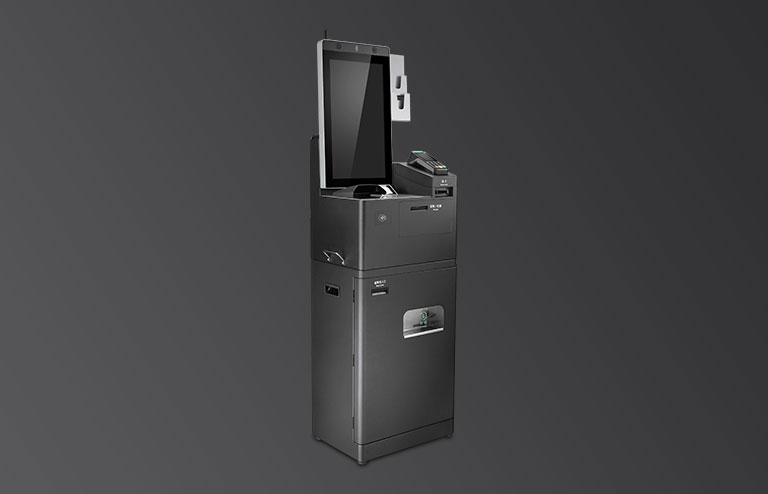

Hotel Kiosk KS-HAX21(Series) can be positioned on the front desk for fast check-in/out or serving as a cash payment kiosk floor-standing in the lobby.
Device Integration for Hotel Self-Service
Integrated with OCR scanner and keycard dispenser, KS-HAX21 provides instant identity verification and a speedier self check-in experience.
Modular Design with Various Peripheral Options
Integrated with bill acceptor, bill/coin dispenser, thermal printer, 2D barcode scanner, RFID/NFC reader, face camera, microphone and customizable EMV payment device bracket.
Photo Gallery
Specifications
| Model Name | KS-HA521 | |
| Core Logic | Processor | Intel® Bay Trail-D Celeron® J1900 Quad Core (2M Cache, up to 2.42 GHz) |
| Memory | 1 x DDR3L SO-DIMM, up to 8G | |
| Storage | 1 x M.2 M-Key SATA Slot | |
| LCD Panel | Panel Size | 21.5-inch VA LED Panel |
| Resolution | 1080 (H) x 1920 (V) | |
| Brightness | 250nits | |
| View Angle | 89° / 89° / 89° / 89° | |
| Touch Panel (Bezel Free) | True-Flat PCAP Touch (G+G) | |
| RF Communication Wi-Fi / 4G LTE | Option | |
| Visual Recognition Internal Camera | 5M-Pixel AF Full HD Camera | |
| Microphone | Directivity | Omni directional |
| Internal Speaker | 2 x 5W Speakers | |
| Application Peripheries | ||
| Passport Reader with OCR Scanner | Sensor : CMOS Resolution : 500 dpi Illumination : Visible, IR and UV(optional) 1D & 2D Barcode Scanner supported ICAO 9303 Standard Compliant Documents : - ID-1 (Identity Card) - ID-2 (Passport, Visa) - ID-3 (Passport) |
|
| Room Key Dispenser | Issue Cards Speed: 3 sec./card (excl. writing cards) Card Capacity: Approx. 150 cards Card Spec. : (W) 53.92~54.18 mm / (L) 85.47~85.90mm / (T) 0.76mm±0.1mm Contactless card Standard: - Compliant with ISO/IEC 14443 Type A and Type B Standards - Compliant with PBOC2.0, PBOC3.0 Standards - EMV2000 Compliant |
|
| I/O Interface | ||
| External I/O | USB | 2 x USB 2.0 type A |
| LAN | 1 x RJ45 Ethernet (Host) 1 x RJ45 Ethernet (option : EMV Payment) |
|
| Power Cord Socket | 1 x AC Male Power Socket | |
| Power Switch | 1 x Power Switch | |
| Mechanical & Environmental | ||
| Physical Characteristics | Surface Color Plan | Standard or Customizable by project |
| Brand Logo | Customizable by project | |
| Dimension (W x H x D mm) | Countertop Version : 500 x 900 x 350 Floorstanding Version : 500 x 1650 x 350 |
|
| Weight (N.W / KG) | Countertop Version : 41.5KG Floorstanding Version : 86.5KG |
|
| Operation System | OS | Win 10.1 IoT Ent |
| Environment | Operation Condition | 0°C to +35°C / 20% to 80% without condensation |
| Storage Condition | -5°C to +55°C / 20% to 85% without condensation | |
| Optional Accessories | ||
| Standalone Thermal Printer | 2" or 3" with cutter 203 dpi and Max. 250 mm/s supported |
|
| Mini QR Code Scanner | Fixed mount barcode scanner, 800 x 800 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen |
|
| Payment Devices (Floorstanding Version) |
Bill Acceptor | Speed : Approx. 3 seconds to cash box Rate : 96% or greater Box Capacity : Approx. 500 bills Bill Accepted : (W) 59~71mm Bill Insertion : Four-way |
| Coin Dispenser | Speed: 5~6 (12V DC), 6~8 (24V DC) coins/sec Coin Capacity: Approx. 500 coins Applicable Coin Sizes : ▪ A TYPE - (Diameter) 22.5~28mm / (Thickness) 1.6~2.4mm ▪ B TYPE - (Diameter) 20~23mm / (Thickness) 1.6~2.2mm ▪ C TYPE - (Diameter) 23~30mm / (Thickness) 2.5~3.3mm ▪ D TYPE - (Diameter) 23~30mm / (Thickness) 1.6~2.4mm ▪ E TYPE - (Diameter) 17.9~19.7mm / (Thickness) 1.3~1.8mm ▪ F TYPE - (Diameter) 22.5~28mm / (Thickness) 1.0~1.5mm ▪ G TYPE - (Diameter) 20~23mm / (Thickness) 1.2~1.6mm ▪ H TYPE - (Diameter) 28~31mm / (Thickness) 2.0~2.8mm * Support up to Max. 2 Coin Hoppers |
|
| Bill Dispenser | Speed : 2.5 notes/sec Bill Capacity : Approx. 500 notes (depends on the note thickness) Bill Accepted：(W) 62~77mm / (L) 120~160mm / (T) 0.08~0.125mm |
|
| NFC/RFID Reader | Based on customer requirements | |
| EMV Payment Device Bracket | Based on customer requirements | |
| More Optional | Wi-Fi IEEE 802.11 a/b/g/n/ac (Mini-PCIe) or 4G LTE Module (Mini-PCIe) UPS (Uninterruptible Power Supply) Information Rack (Customizable by project) |
|
